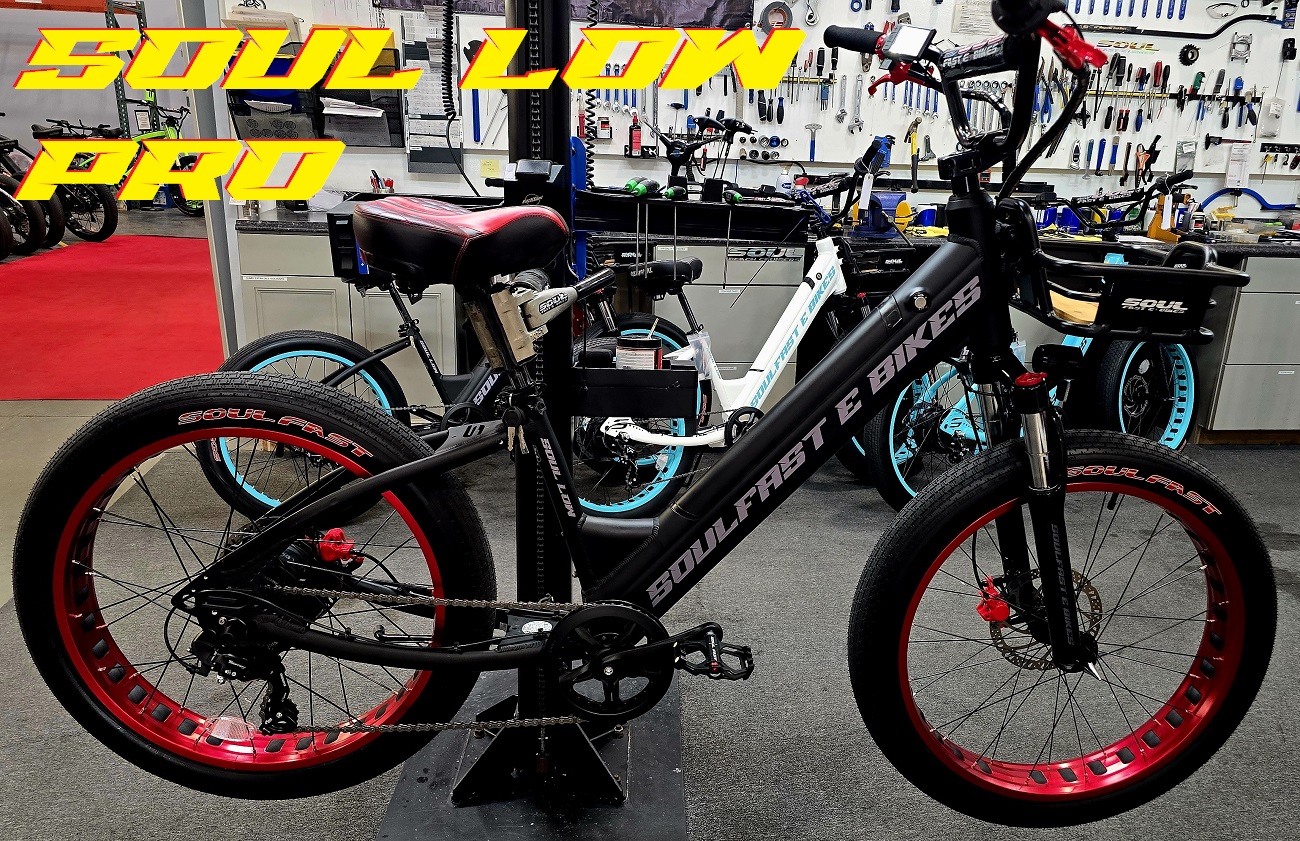

24″ EASY TO RIDE STEP THRU SOUL LOW

Height challenges – We have you covered  24″ SOUL LOW

Easy boarding, big fun with Soul styling

500W/750W PEAK POWER MATCHED TO OUR PRO 14AH SAMSUNG BATTERY – 60+ MILE RANGE



NOW TAKING ORDERS – SHIPS LATE OCT

MSRP $2800 / SOUL SALE ONLY $2299

CALL US 657-215-0099 FOR MORE INFO

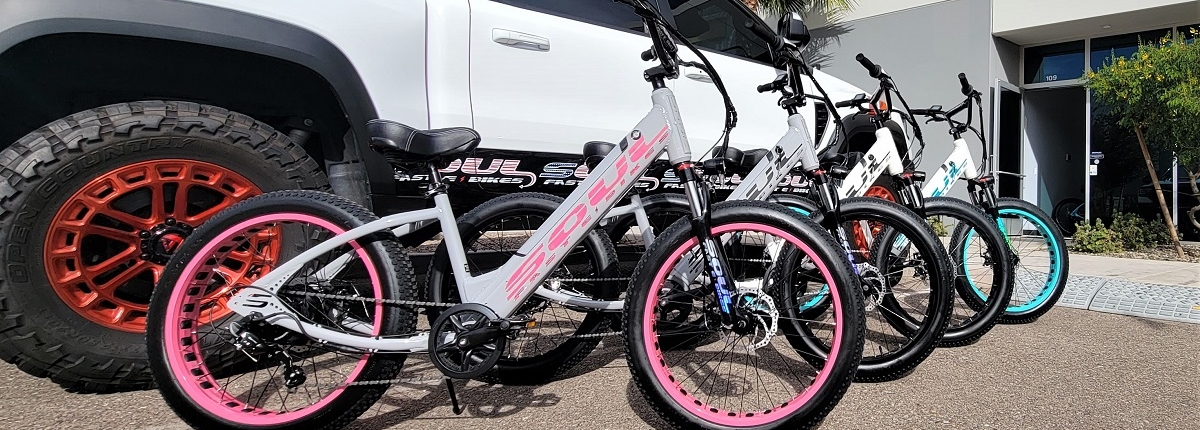

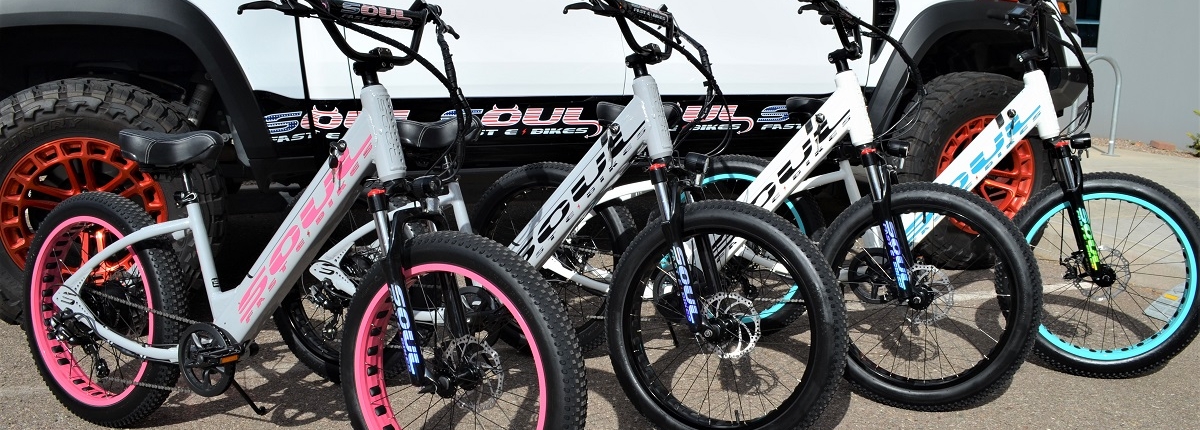

PURE SOUL DNA – FUN SIZE – BIG ATTITUDE

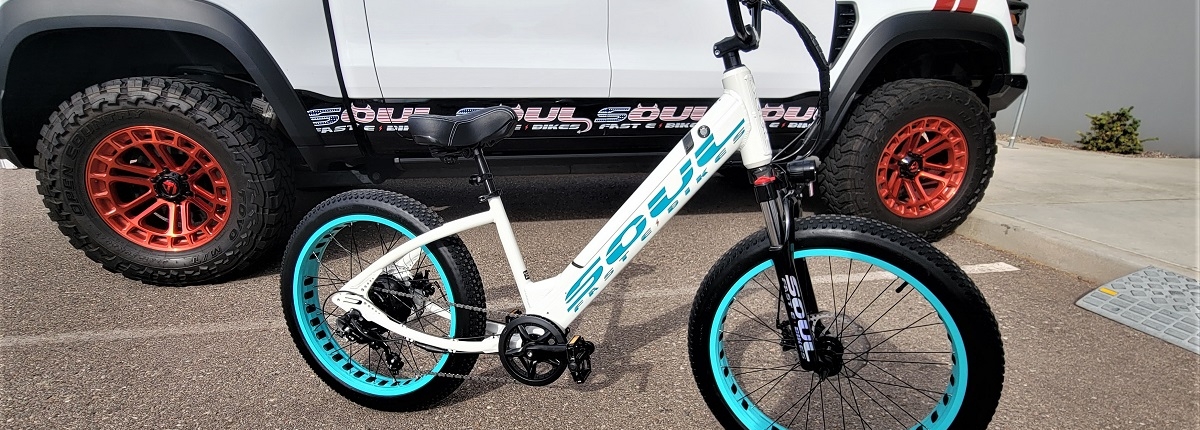

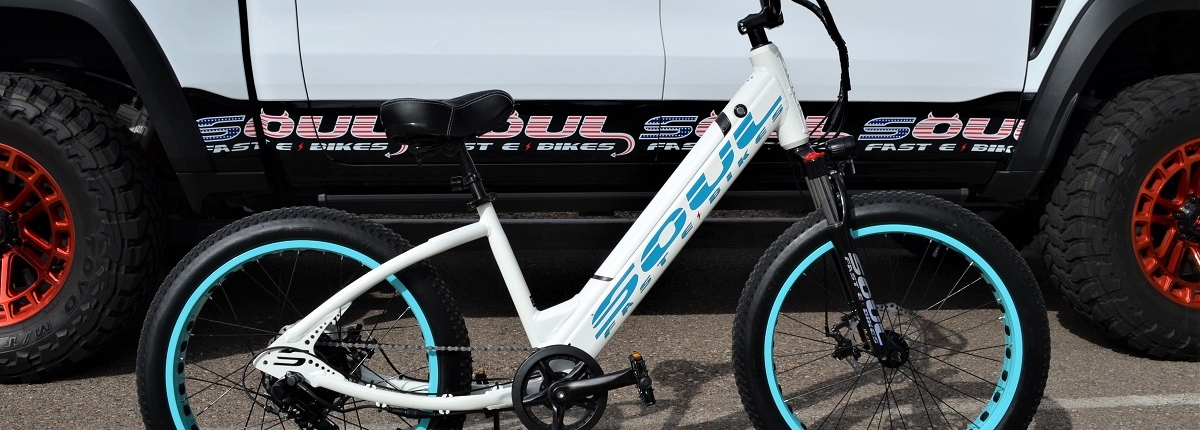

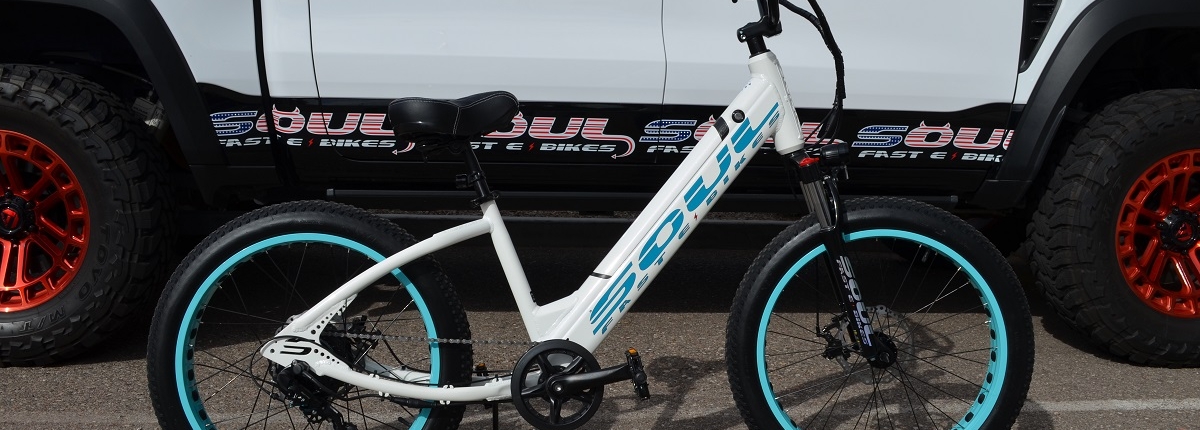

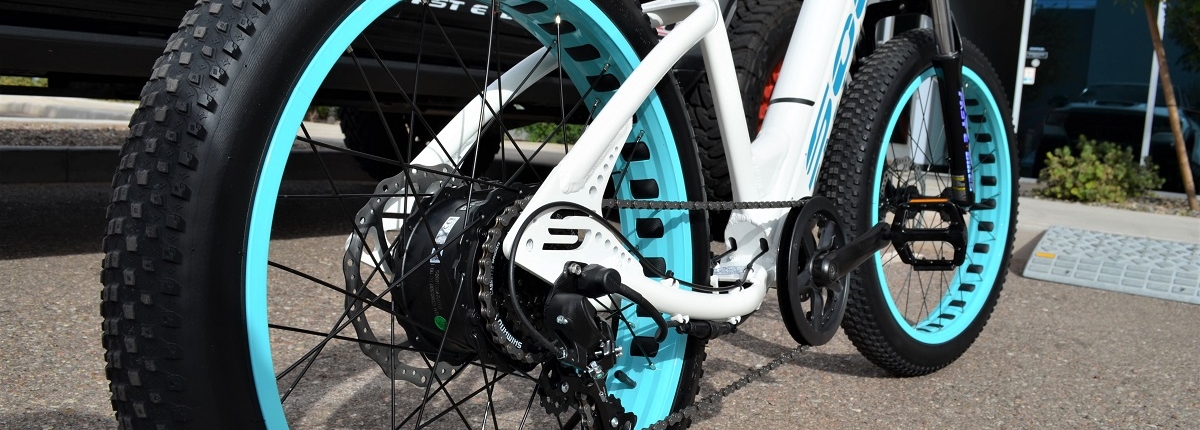

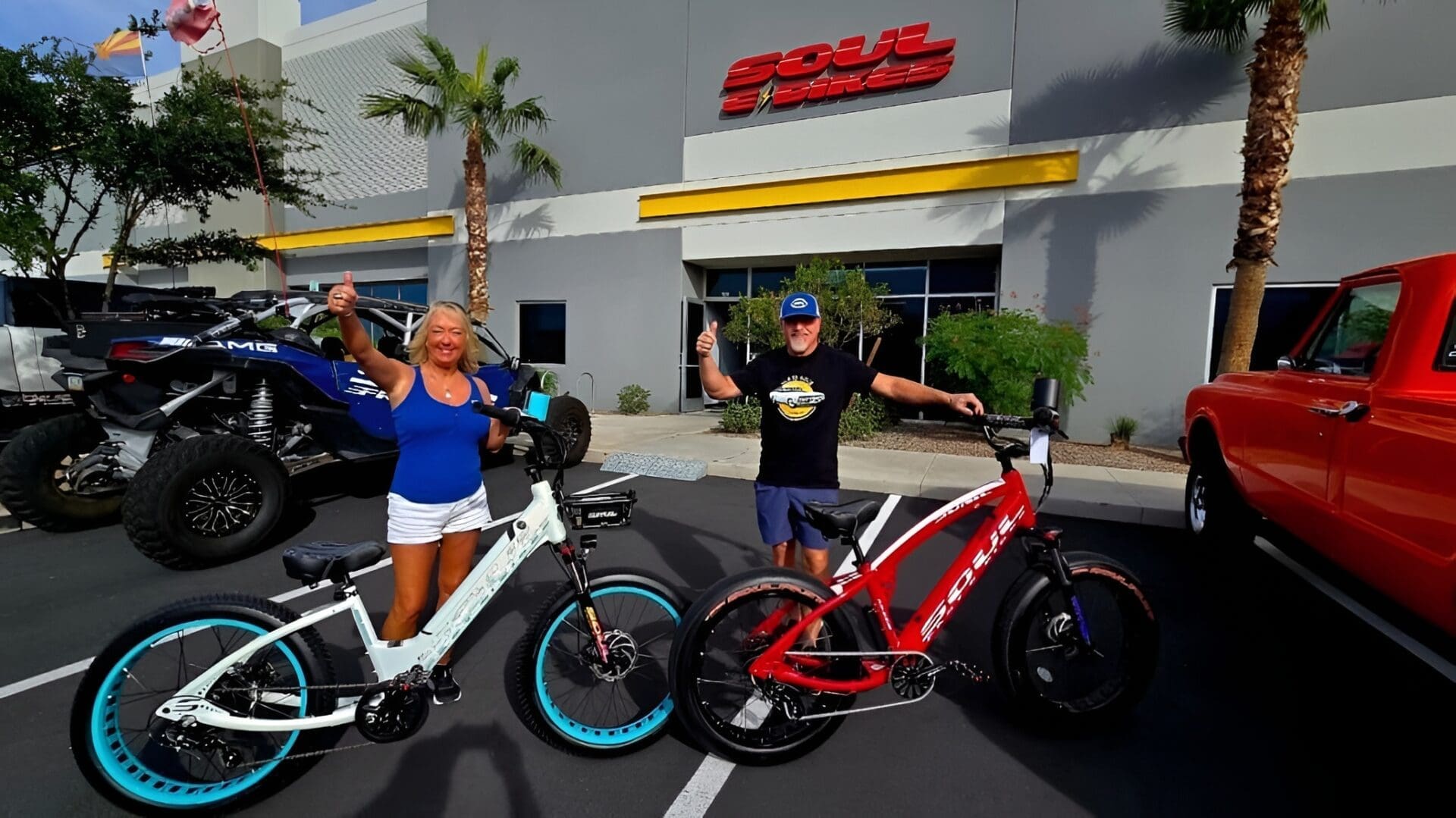

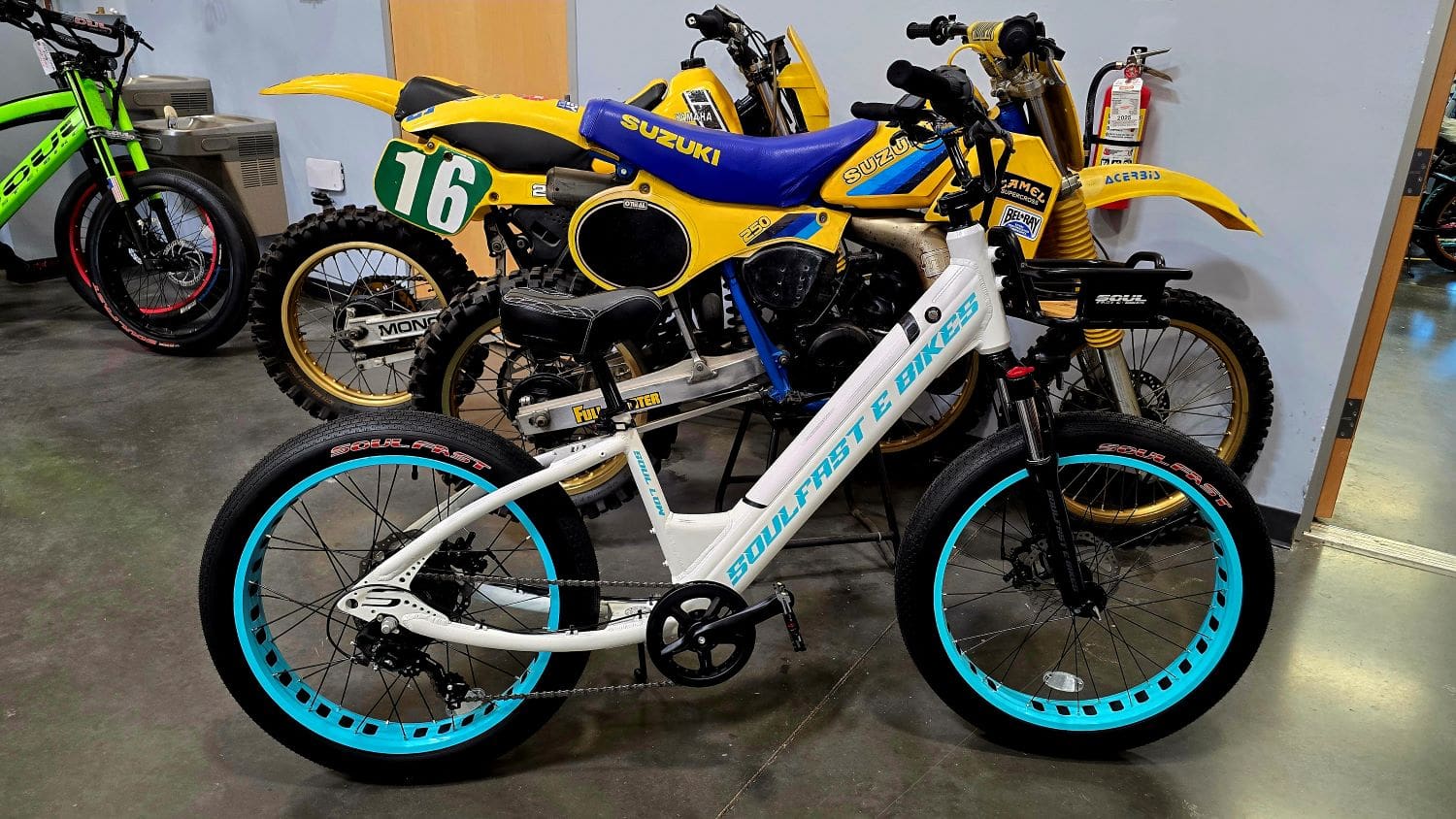

24″ WHITE DIAMOND – TEAL RIMS – $2299

500W/750W PEAK

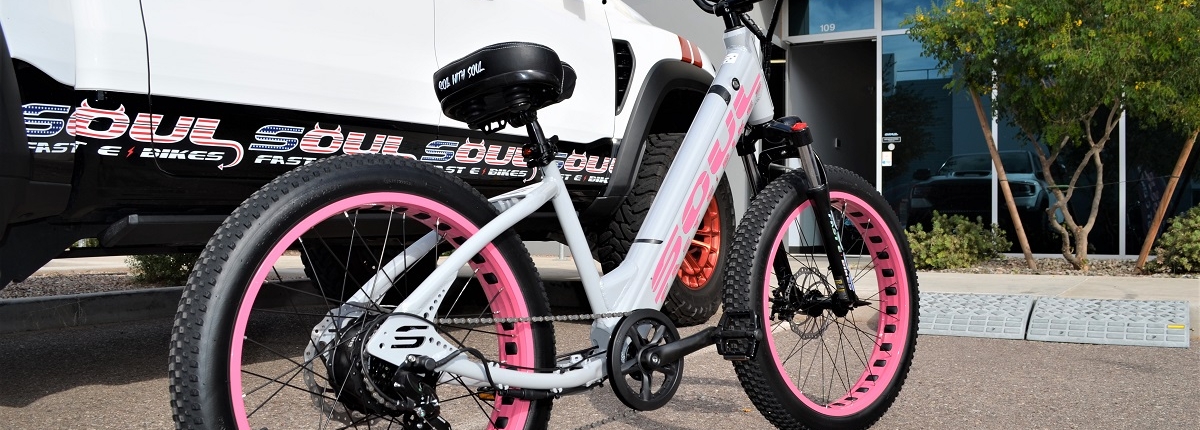

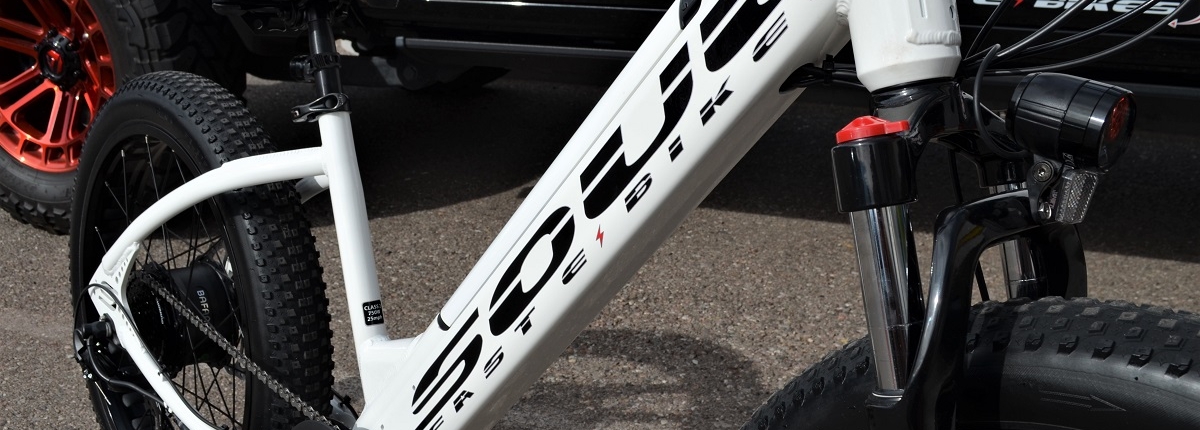

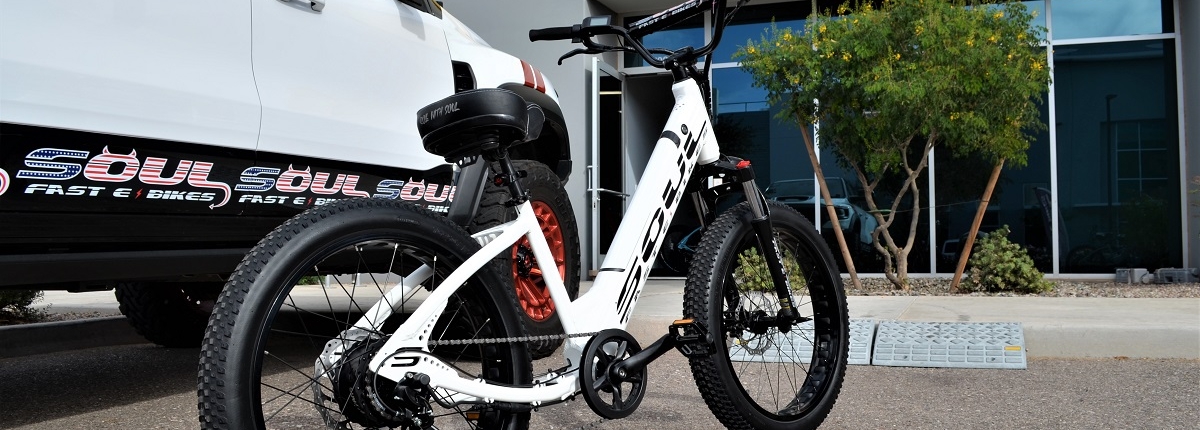

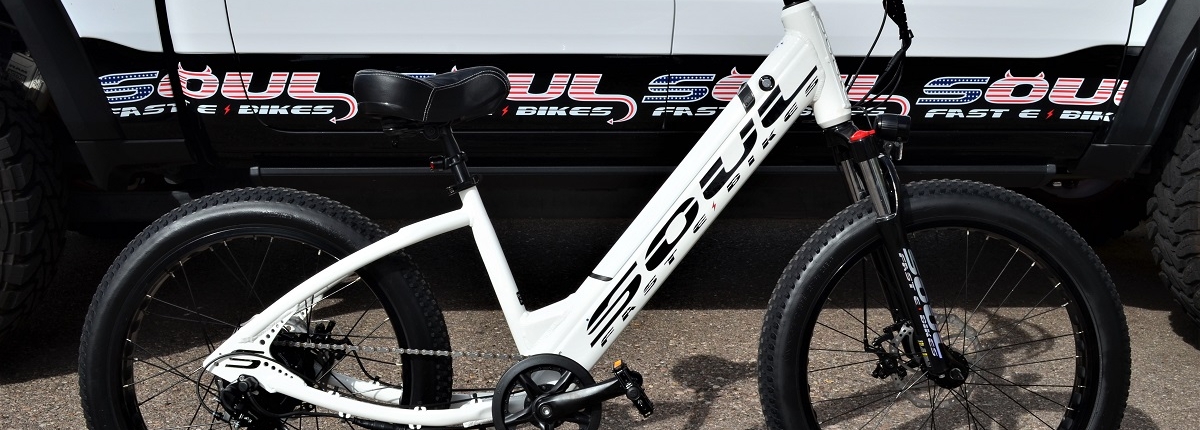

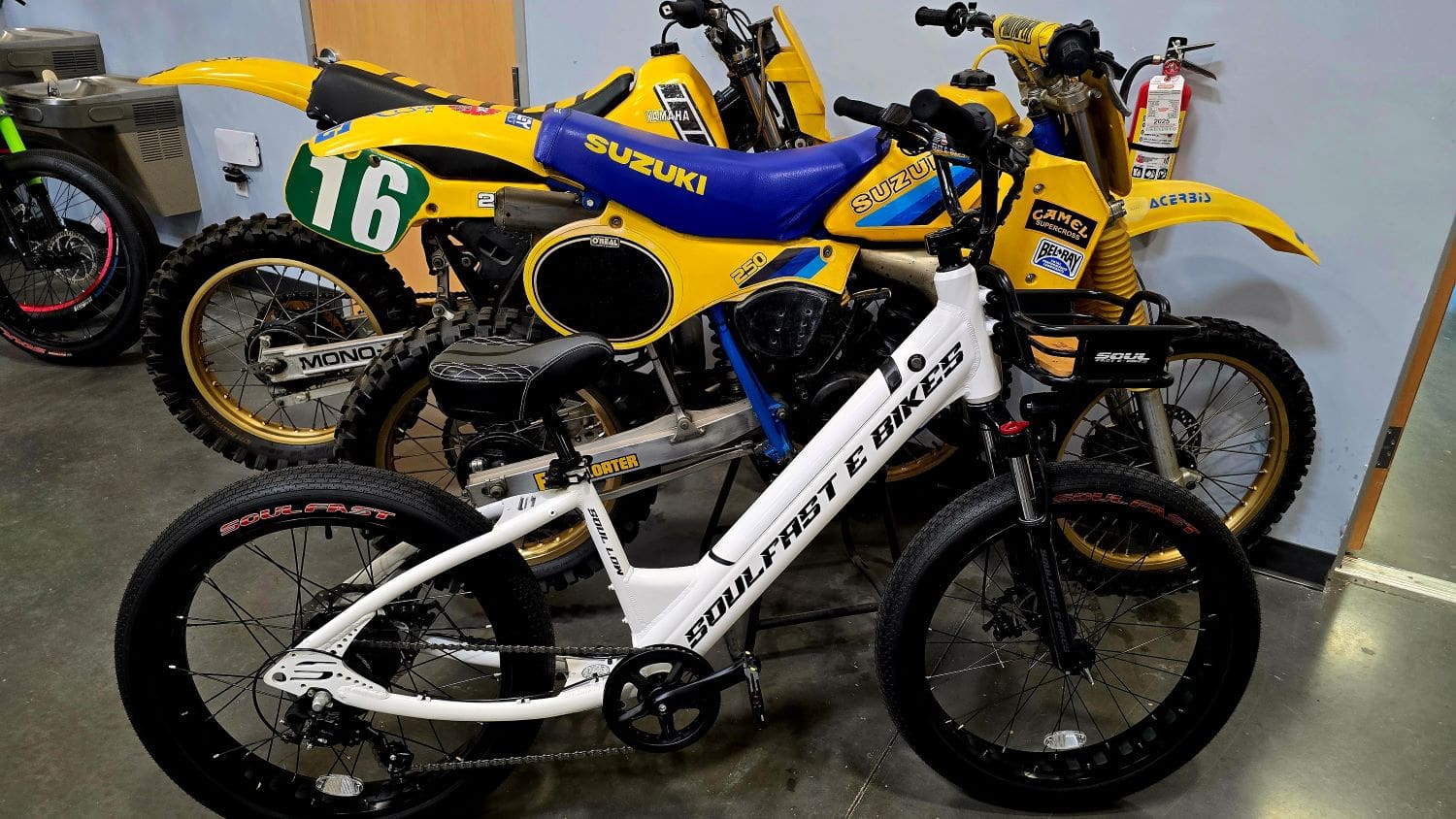

24″ GLOSS WHITE – BLACK ANO RIMS – $2299

500W/750W PEAK

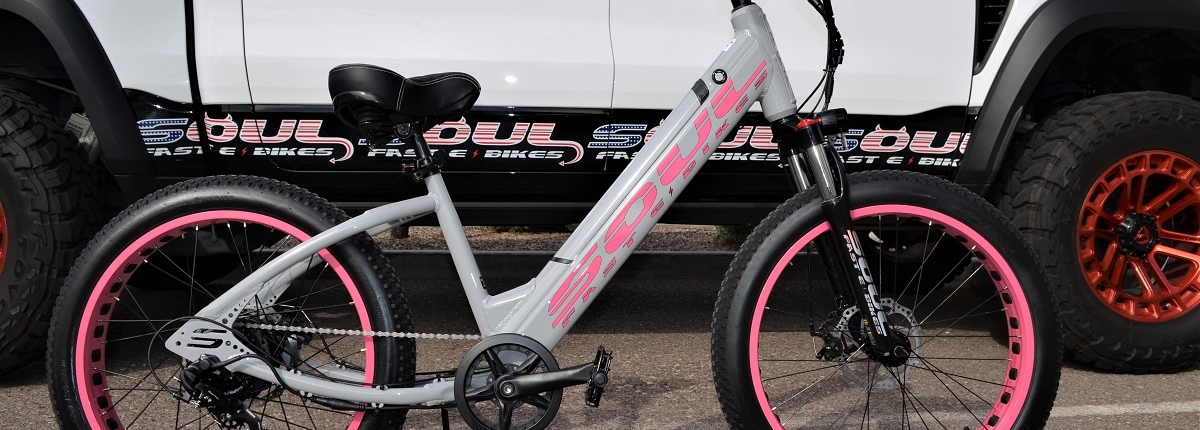

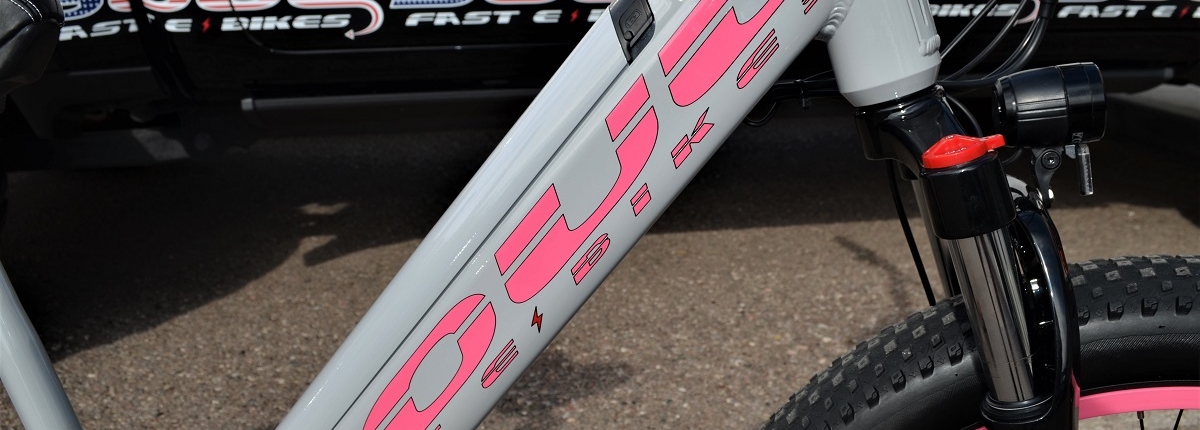

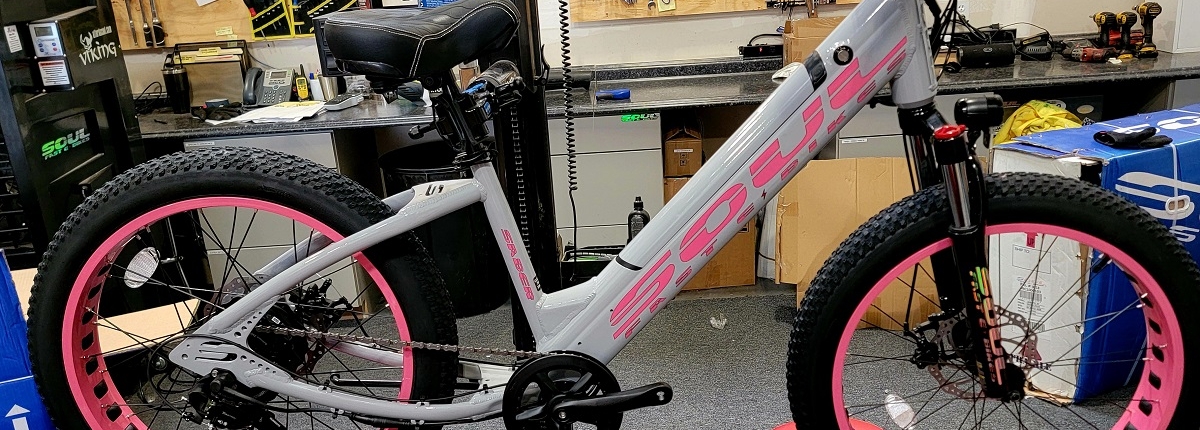

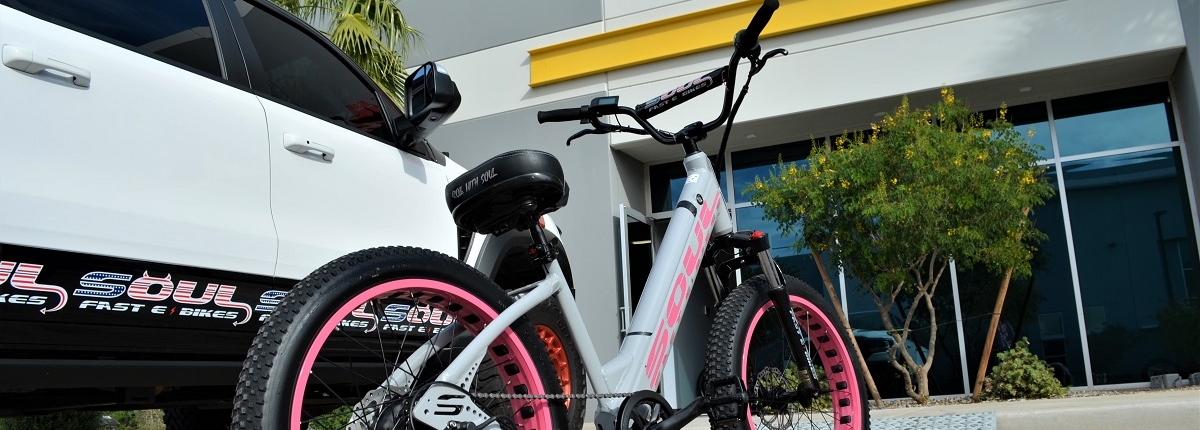

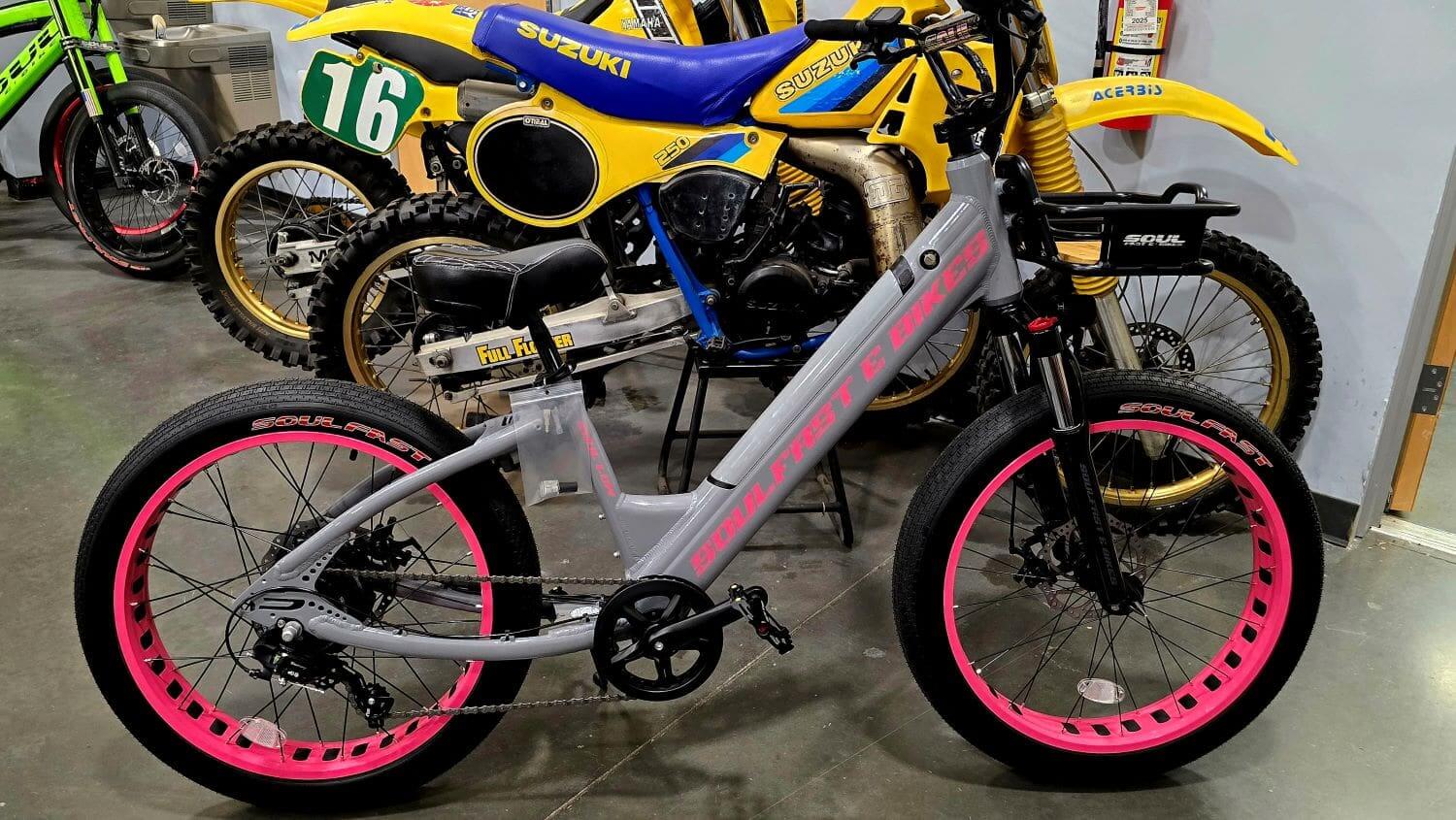

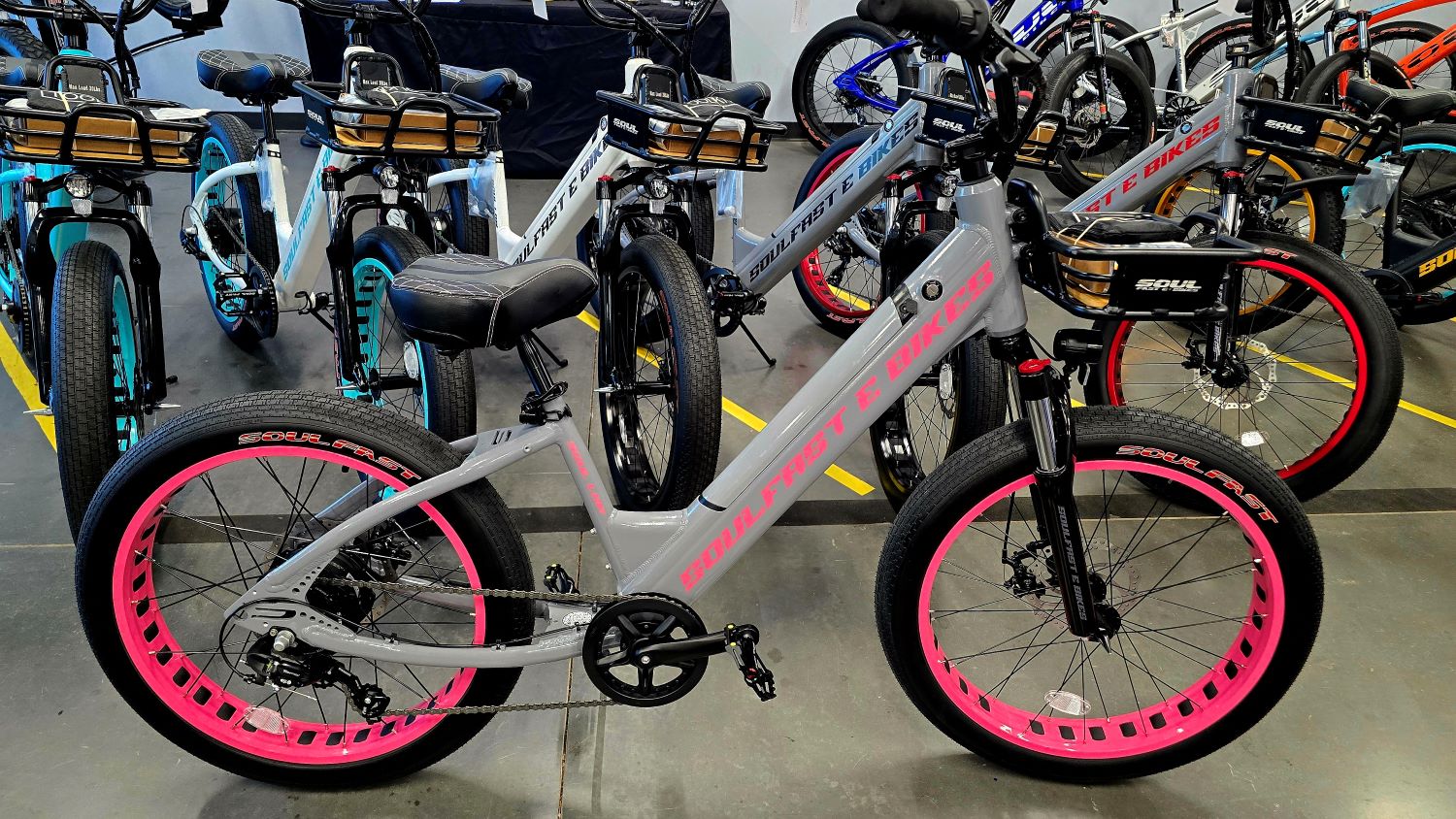

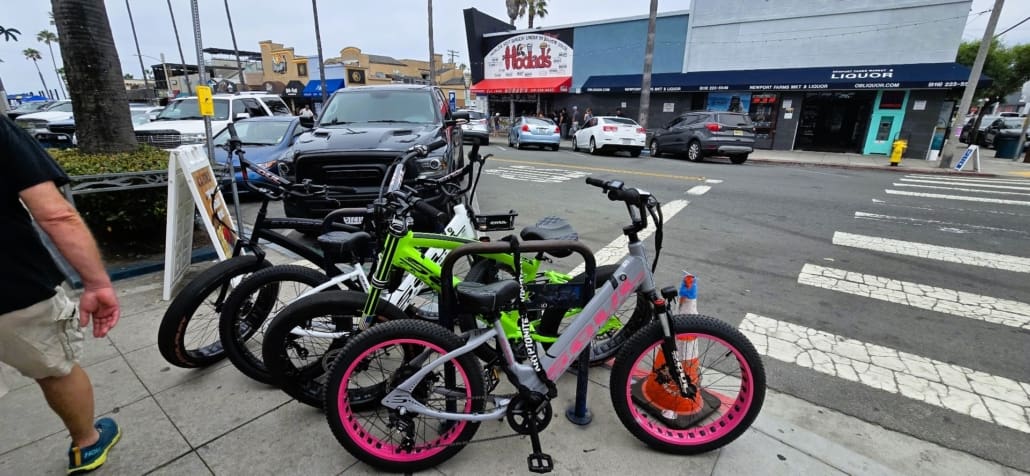

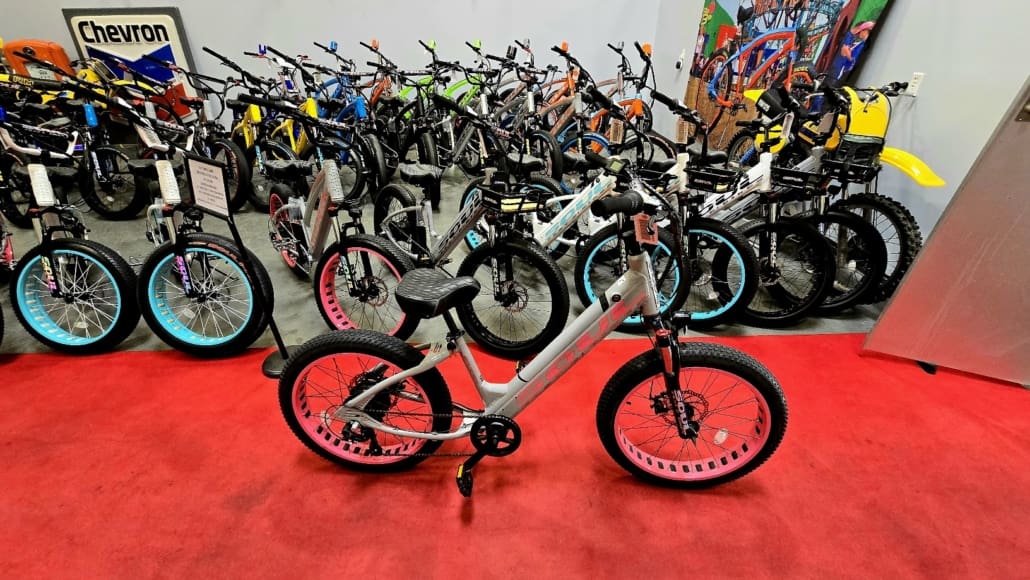

24″ SHARK GREY – HOT PINK RIMS – $2299

500W/750W PEAK

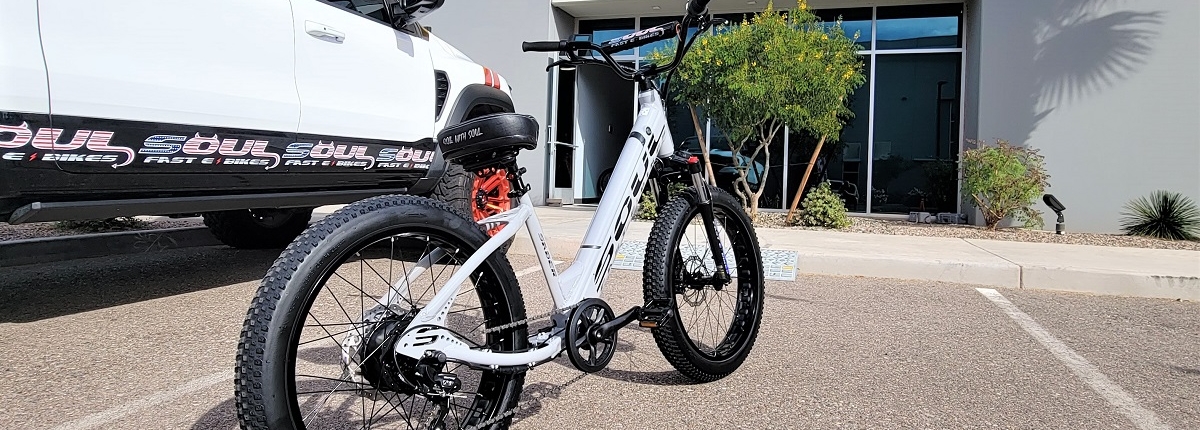

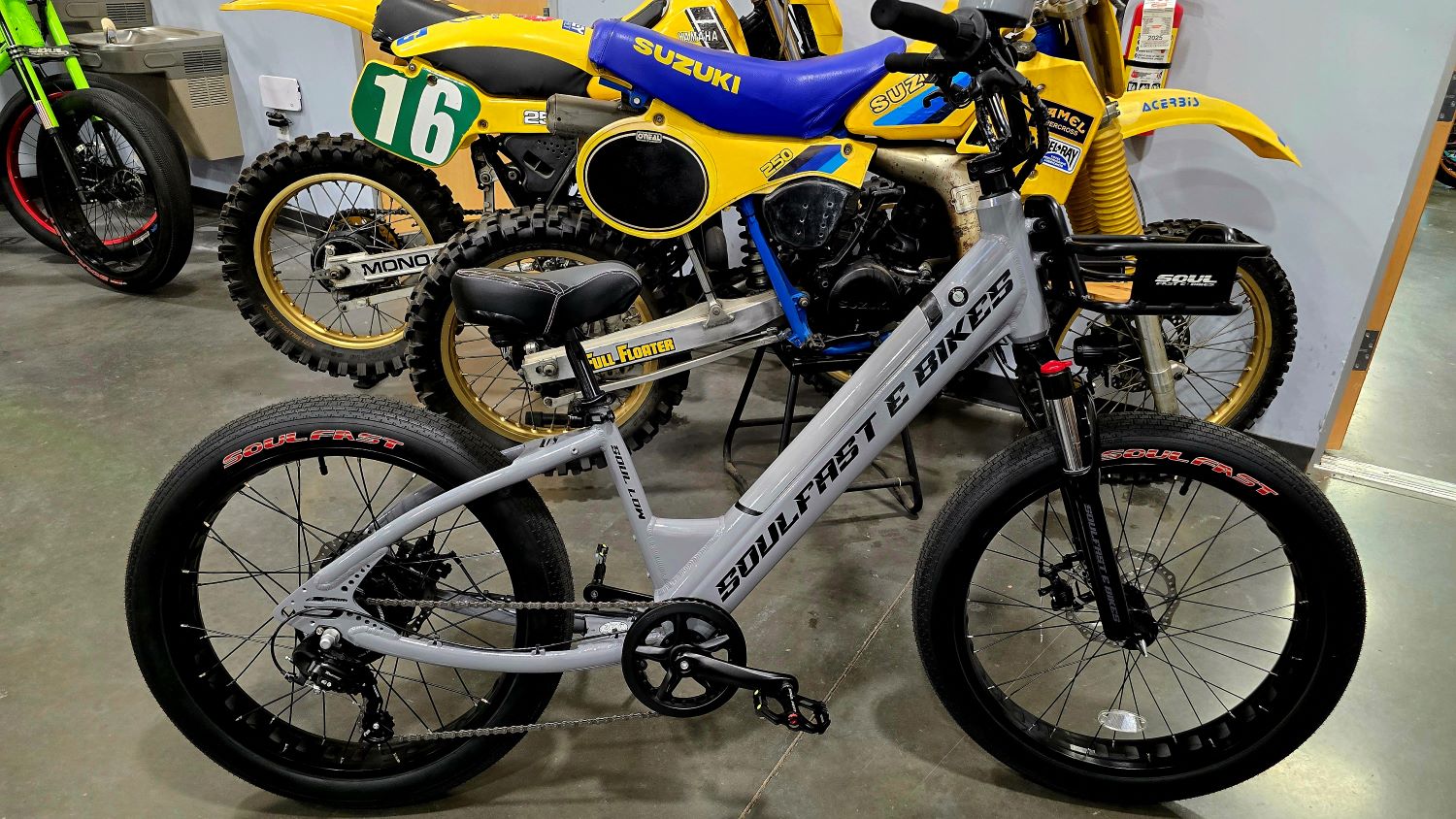

24″ SHARK GREY – BLACK ANO RIMS – $2299

500W/750W PEAK

MOCKED UP PROTO  STEP THRU VID

SONIC SABER SPECS BELOW

COMPONENTS & COLORS WILL VARY DEPENDING ON AVAILABILITY



MODEL:

SABER SOUL LOW

BODY POSITION:

Upright – Step Thru

SUGGESTED USE:

Cruising & having fun

ELECTRIC BIKE CLASS:

Speed Pedelec (Class 2)

WARRANTY:

Lifetime frame warranty, 1 year parts, 18 months *motor  & battery

AVAILABILITY:

World Wide

MODEL YEAR:

2023

SONIC SABER Details

TOTAL WEIGHT:

58 lbs

BATTERY WEIGHT:

5.1 lbs

MOTOR WEIGHT:

12 lbs

FRAME MATERIAL:

6061 Aluminum Alloy

FRAME SIZES:

19 in (48.26 cm)

GEOMETRY MEASUREMENTS 24″:

12″ Seat Tube, 26″ Reach, 12″ Standover Height, 14″ Width, 60″ Length,

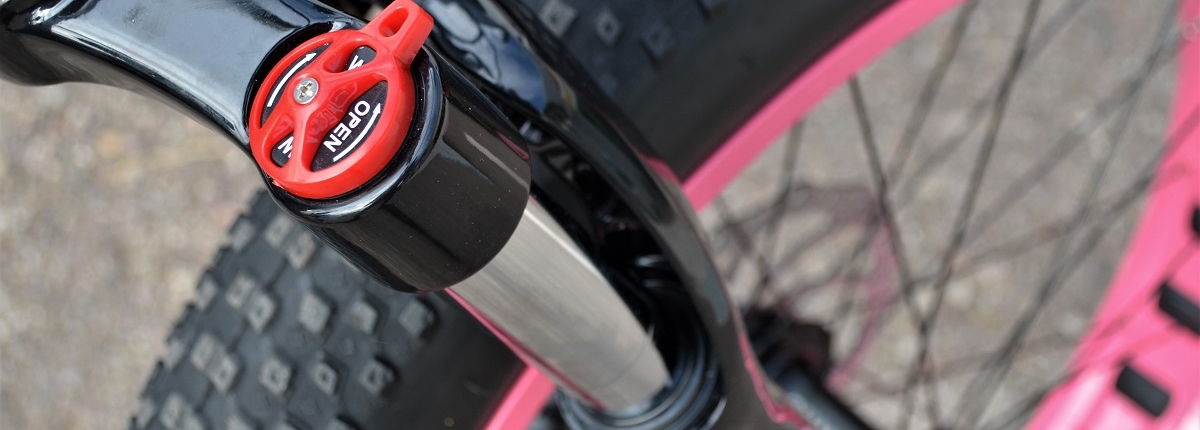

FRAME FORK DETAILS:Front suspension fork with 3” of travel.

FRAME REAR DETAILS:

170mm Hub Spacing, 11/32nd Axle with 15mm Nuts

GEARING DETAILS:

7 Speed Shimano derailleur

SHIFTER DETAILS:

Shimano Revo grip shift

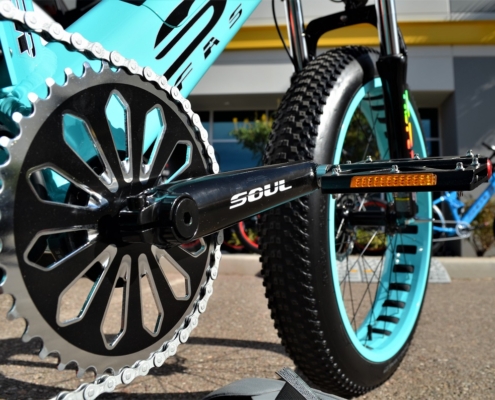

CRANKS:

*Alum – 42T Chainring

PEDALS:

XL Alum

HEADSET:

Integrated

STEM:

Alum 180º Adjustment Range

HANDLEBAR:

*Steel, BMX Style, 180mm Rise, 870mm Length, 30º Back Sweep

BRAKE DETAILS:

Mechanical disc, 180mm Front Rotor / rear Rotor, Motor Inhibitors, 2-Finger Levers with Adjustable Reach.

SADDLE:

Grand Star Oversize, Quilted, Rubber Bumpers, Reflective Logo on Rear

SEAT POST:

Aluminum Alloy

SEAT POST LENGTH:

350 mm

SEAT POST DIAMETER:

27.2 mm

RIMS:

80mm Aluminum Alloy, Punchouts, 36 Hole

SPOKES:

Stainless Steel, 14 Gauge, Black with Chromed Brass Spoke Nipples

TIRES:

MTB 26×3″

WHEEL SIZE:

24 in

TIRE DETAILS:

10 to 30 PSI (0.4- 2.1 BAR)

TUBE DETAILS:

Schrader Valve

ACCESSORIES:

Integrated front headlight  & rear tail light

 Electronic Details

MOTOR BRAND:

Bafang 500 / 750W peak

MOTOR TYPE:

Hub motor

MOTOR NOMINAL OUTPUT:

500 watts

MOTOR PEAK OUTPUT:

750 watts under load

MOTOR TORQUE:

750W 60 Newton meters

BATTERY BRAND:

Samsung

BATTERY VOLTAGE:

48 volts

BATTERY AMP HOURS:

14AH

BATTERY CHEMISTRY:

Lithium-ion

CHARGE TIME:

6.5 hours

ESTIMATED MIN RANGE:

50 miles

ESTIMATED MAX RANGE:

50+ miles

DISPLAY TYPE:

Black & white

READOUTS:

Clock, Trip Distance and Timer, Odometer, Current Speed, Average Speed, Maximum Speed, Assist Level (0-5)

DISPLAY ACCESSORIES:

Independent Button Pad on Left, Buttons: Up, Down, M, Power (Hold Down for Walk Mode, Press M to Cycle Trip Readouts, Press Power to Cycle Distance and Range Readouts)

DRIVE MODE:

Cadence Sensing Pedal Assist, Trigger Throttle (12 Magnet Sealed Sensor)

TOP SPEED:

Class 2 20MPH  – Off road use 28+ mph *
