WHEN ONLY THE ABSOLUTE BEST WILL DO – THE 52V SONIC SS F1 DELIVERS ~ GUARANTEED
Make no mistake we pulled out all the stops designing our flagship SUPER SOUL F1 (FAST 1) SONIC. We set to build the best and after 2 years of heavy R&D/Testing our SS steps up to the plate crushing everyone in the electric cruiser industry.
From our signature CNC billet triple clamps with massive in your face monster forks. To the impressive 1500 peak watts from Bafangs BBSHD 03 matched by supercar stopping power from TRP 4 piston downhill brakes sporting the industries only 223mm front rotor. The unique oversize TRP calipers have cooling fins to the keep heat down and was only offered aftermarket until now.

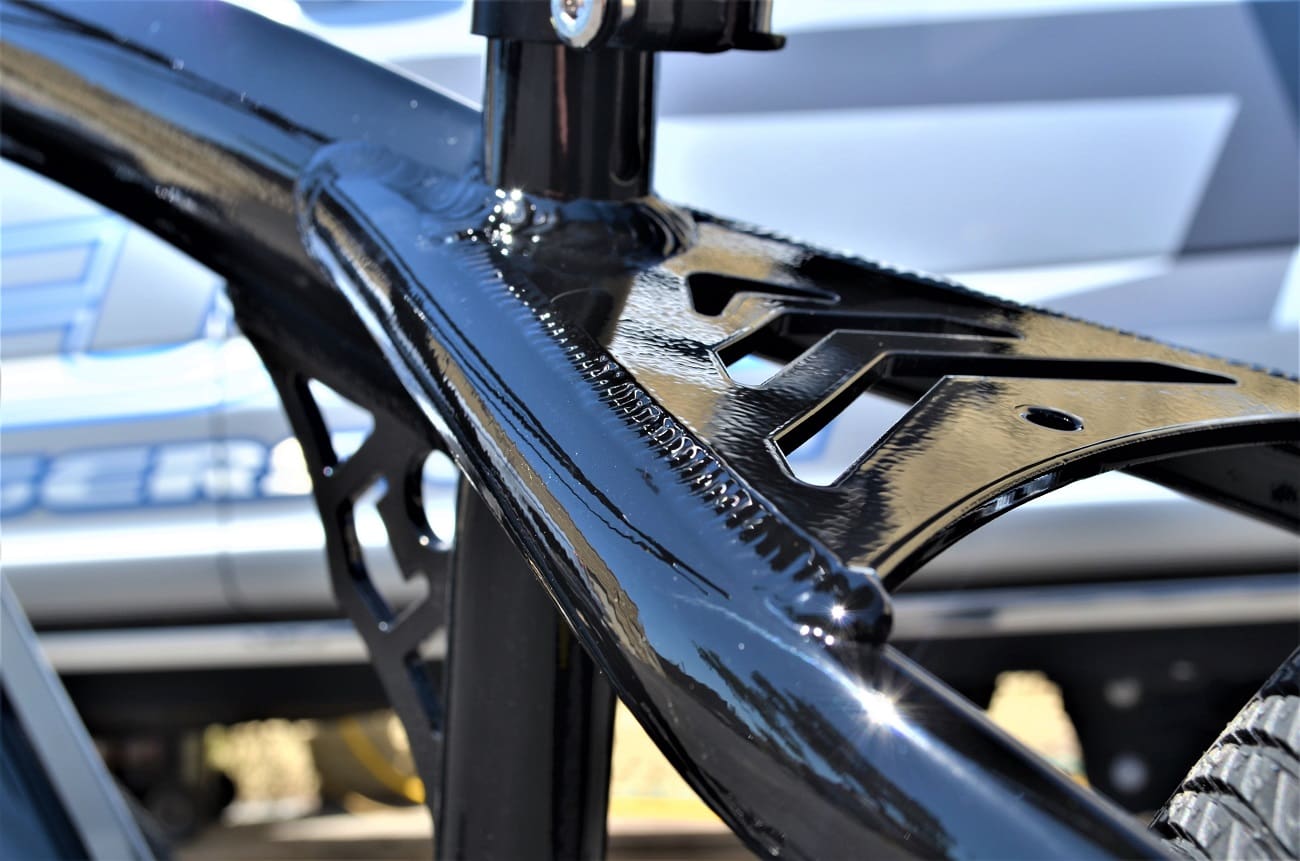

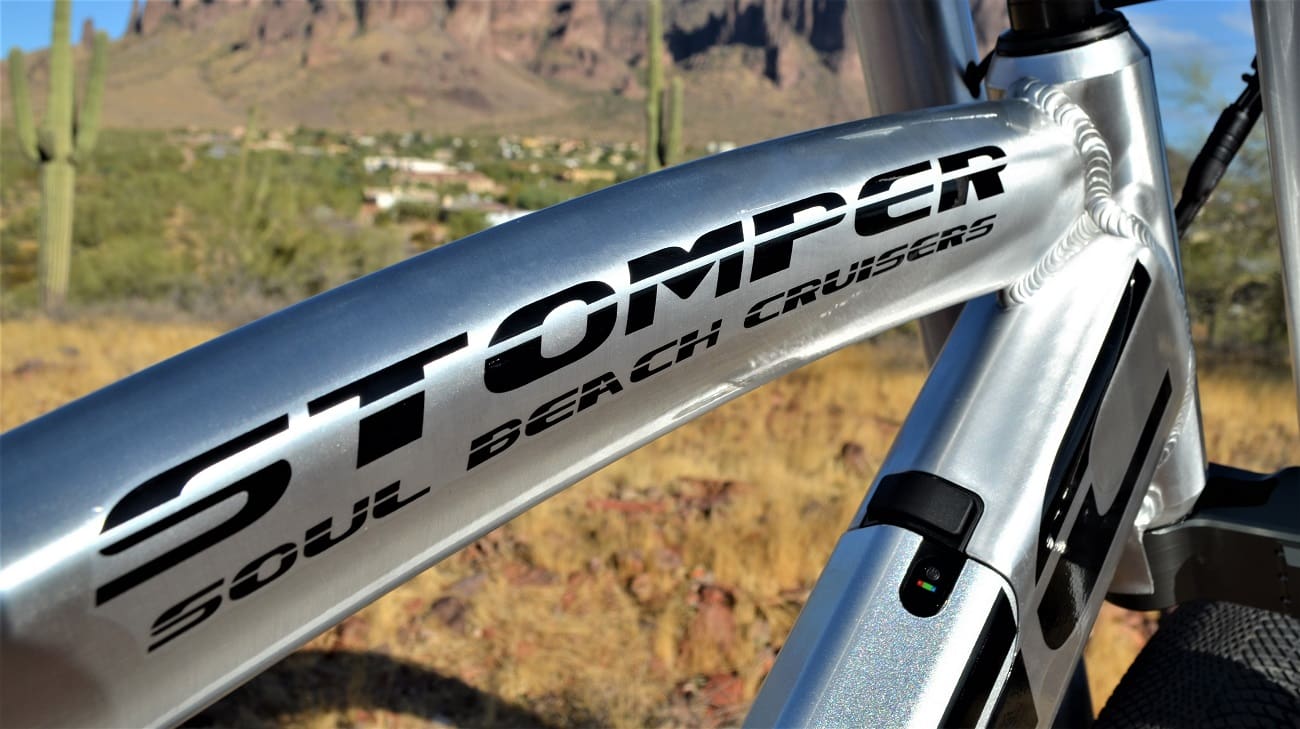

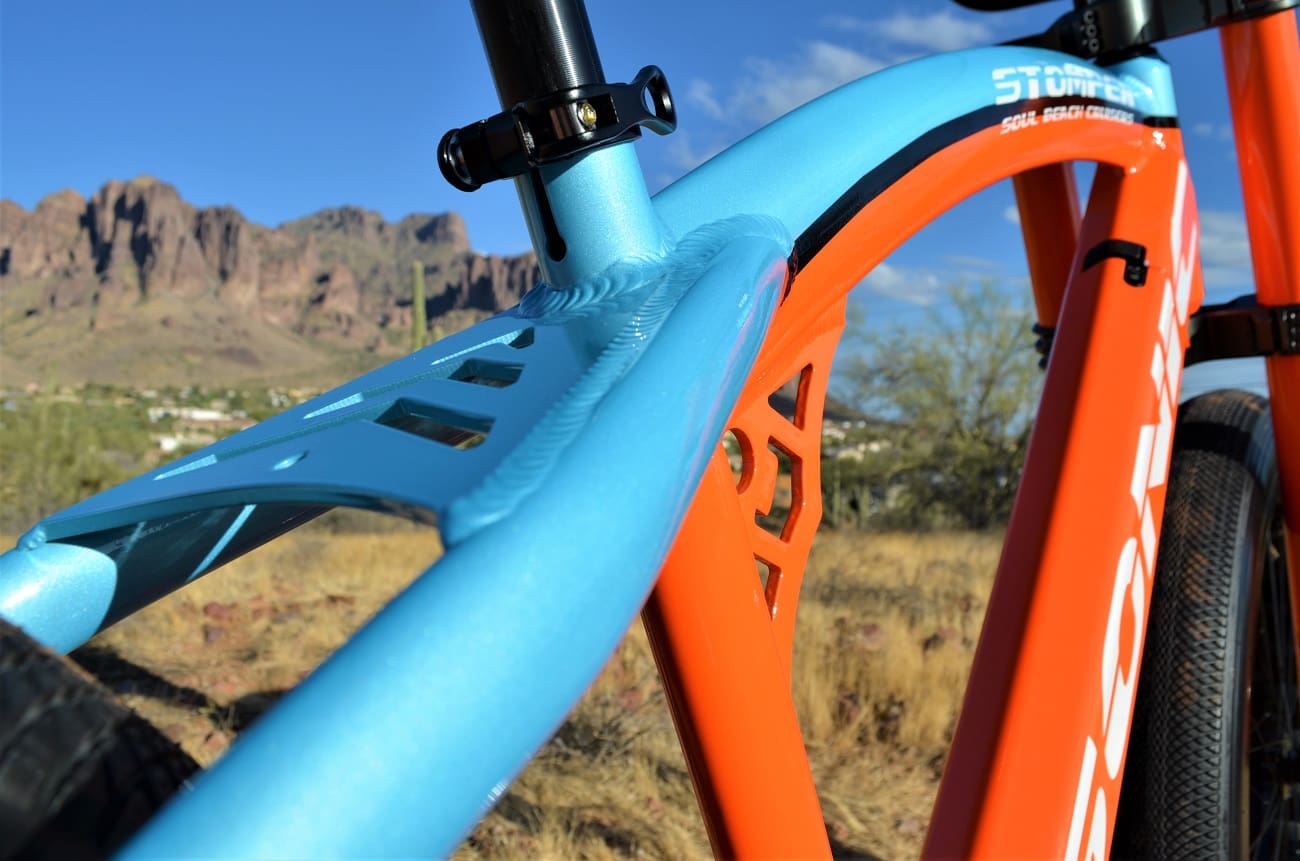

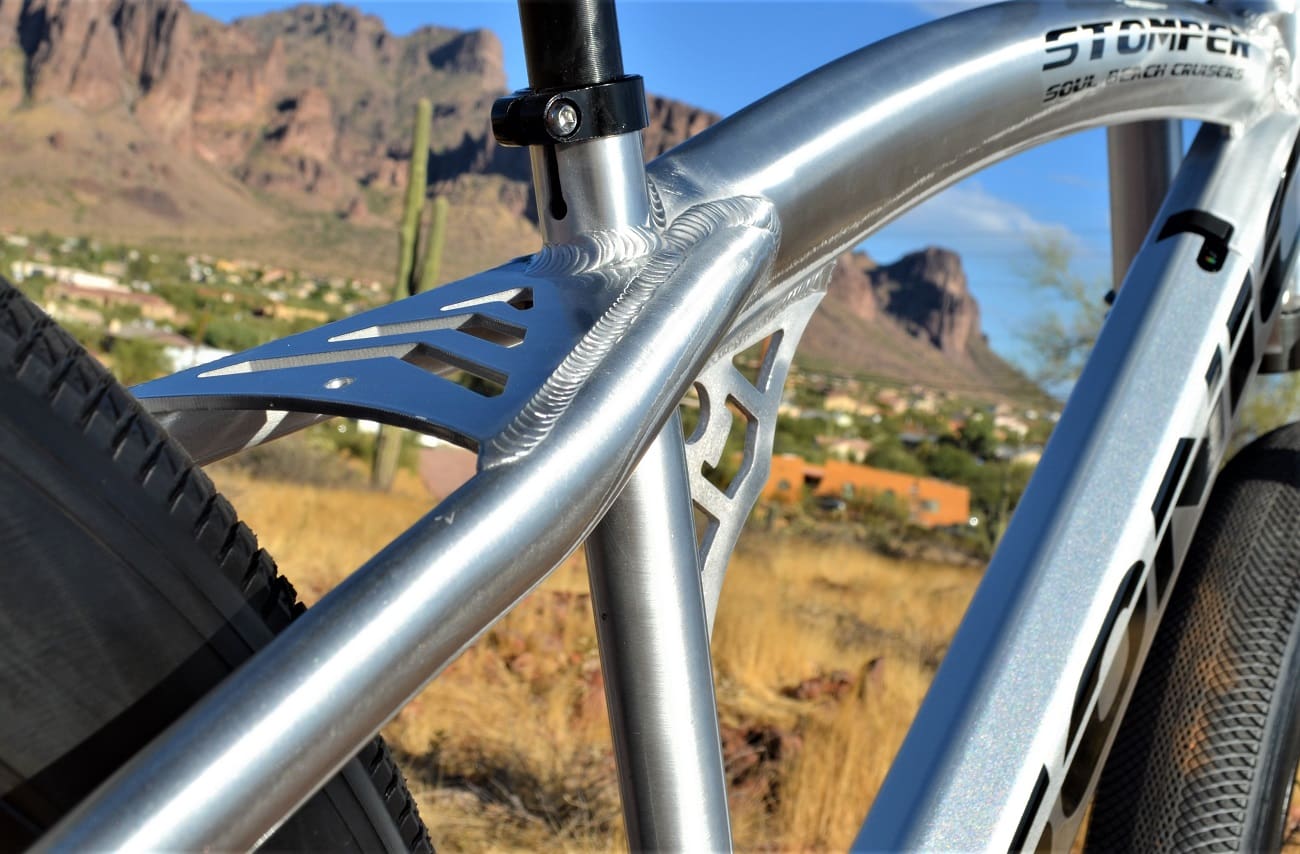

BMX inspired hand welded T6-6061 aluminum frame featuring oversized tubing, CNC support gussets and the integrated locking down tube high powered Samsung battery.
Putting the performance and handling to the ground is no problem for our special edition 3.5 Speedster rubber. From high speed corning, deep sand, mud and wet conditions you’re rolling with best to take you where you want to go.
Show up with the SONIC SS and the rest is up to you.
FULL SPECS AT THE BOTTOM OF PAGE
INDUSTRY LEADING FEATURES ~ WORLD CLASS PREMIUM COMPONENTS
DESIGN DRIVE TRAIN BIG POWER HAND BUILT ALL DAY COMFORT

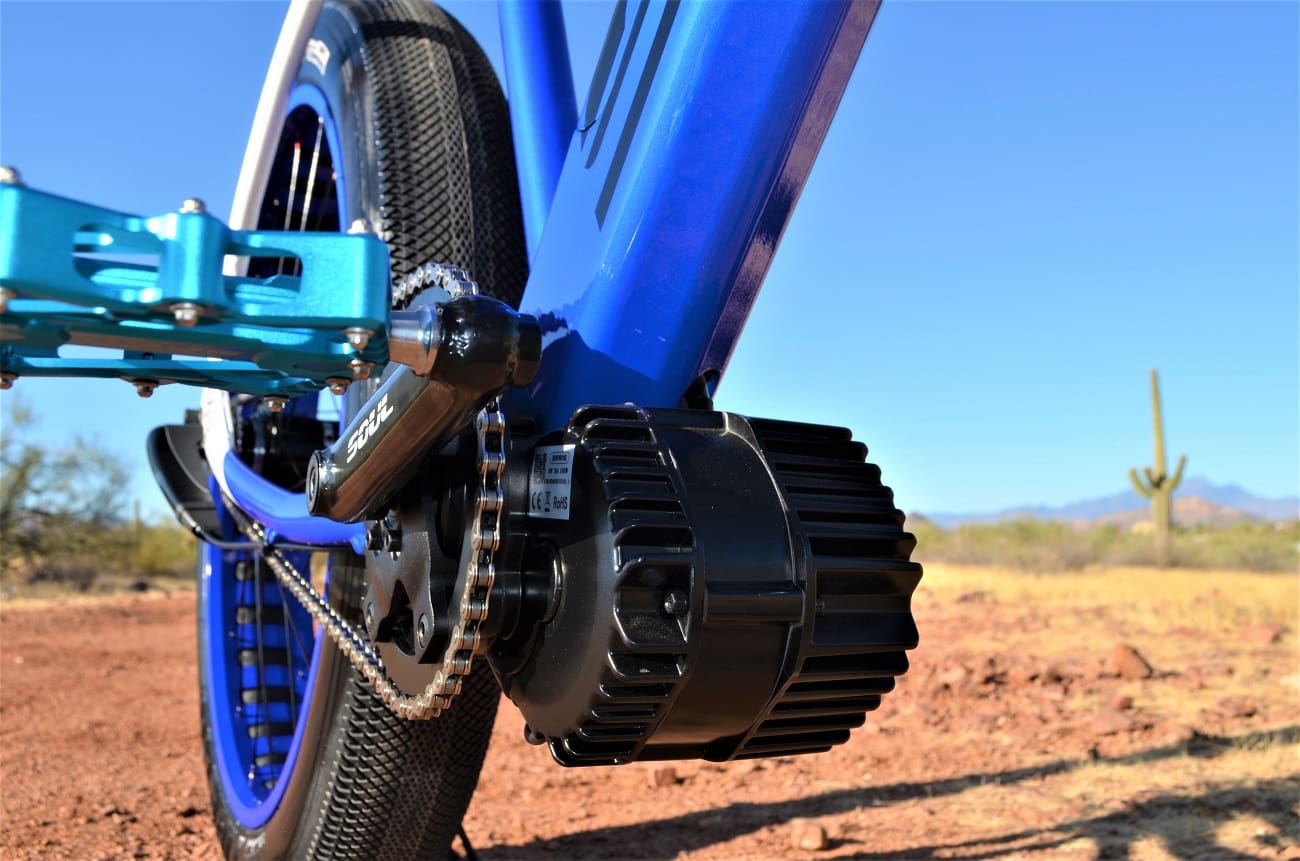

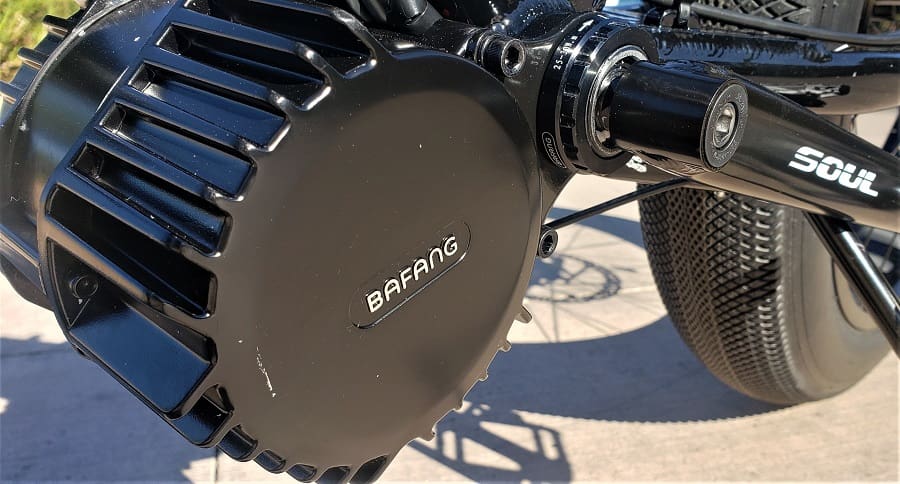

BAFANG BBSHD 1000
1480W peak power on tap. Hands down the most powerful and reliable mid drive

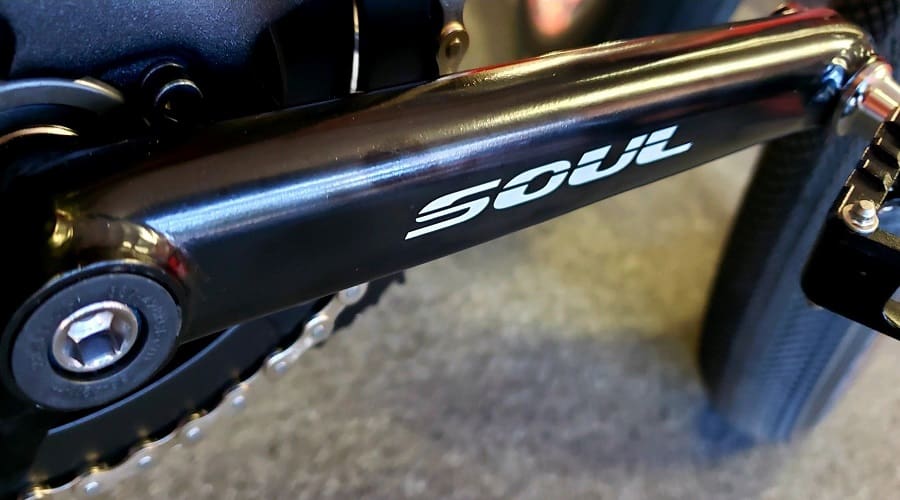

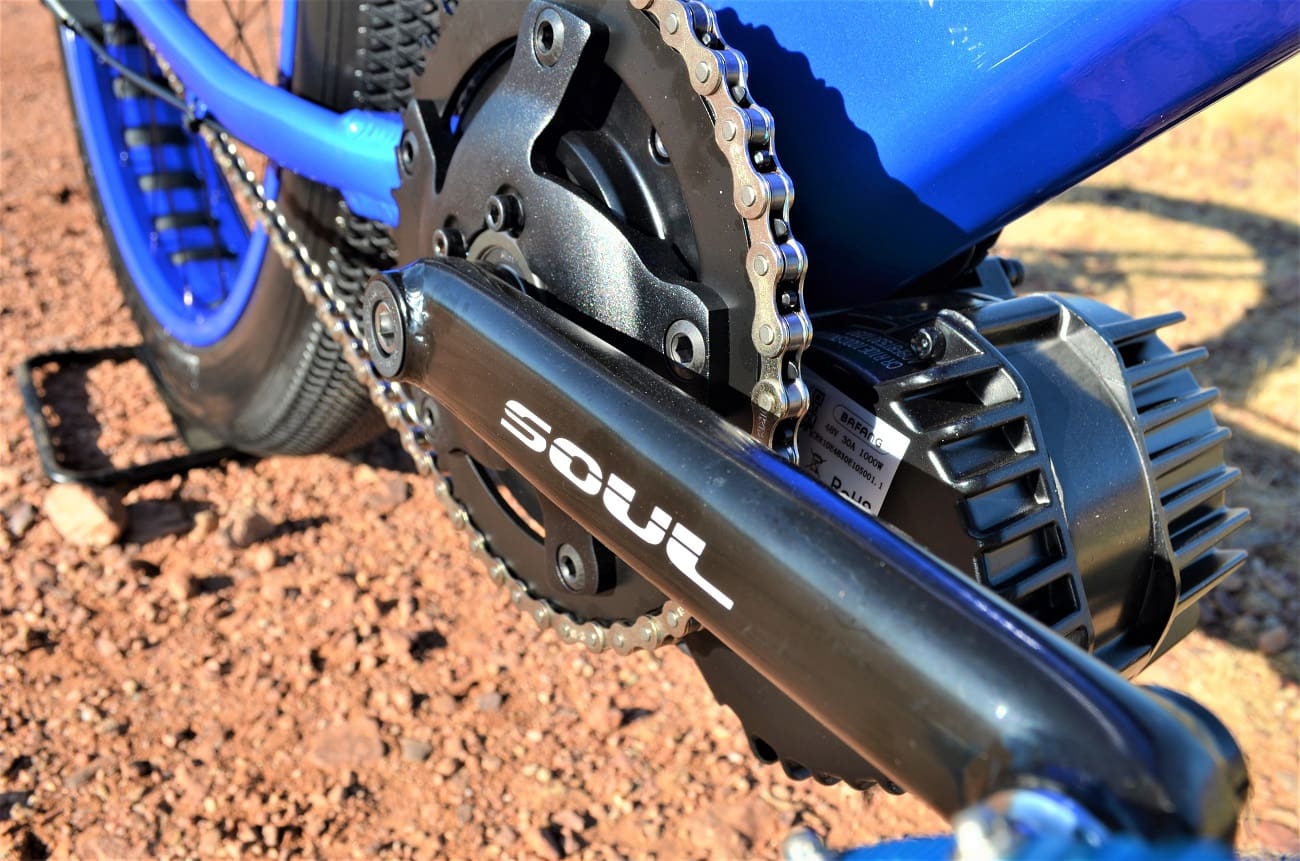

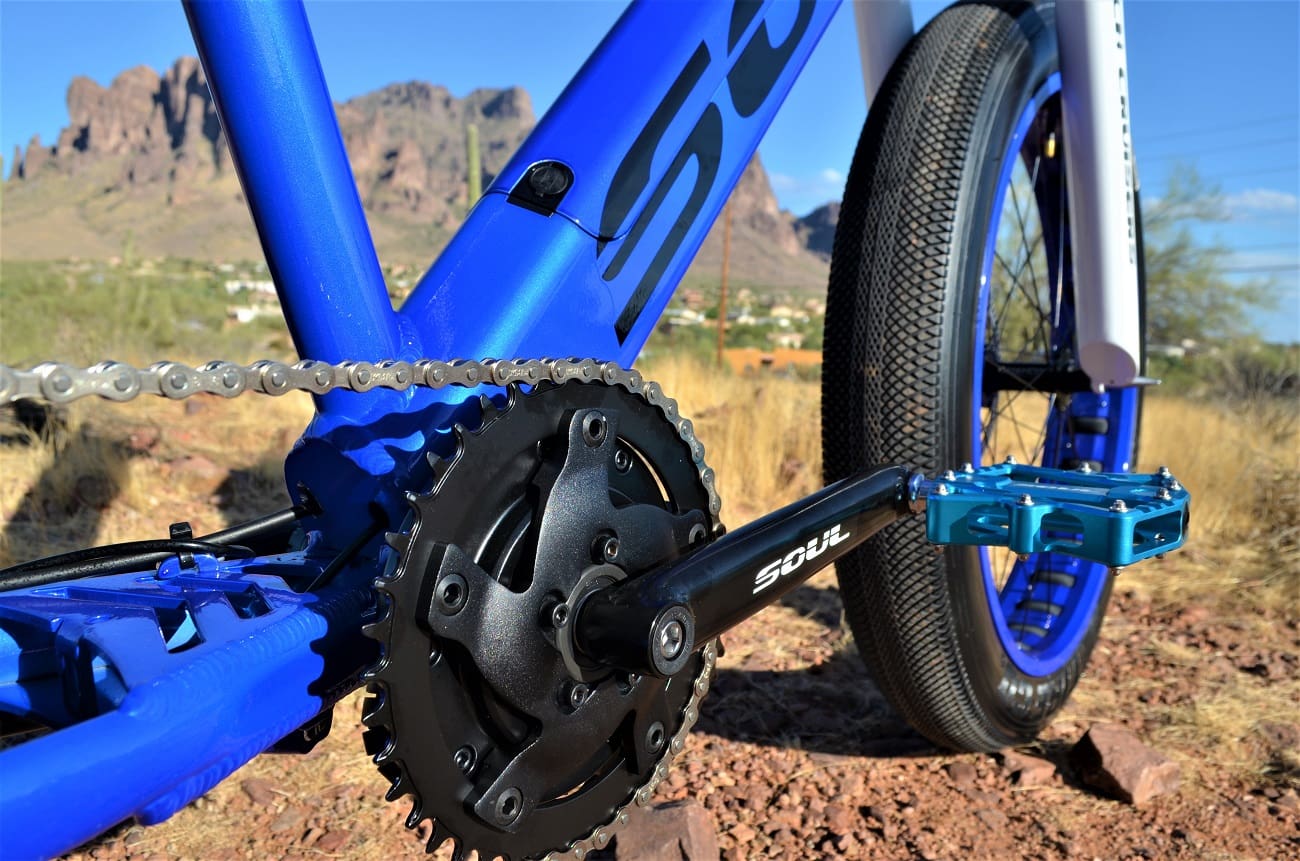

SPECIAL EDITION SOUL CRANKS
Specially deigned 4130 Chromoly oval cranks for the BBSHD .
Zero flex ~ BMX tested strong
48v 14.5AH BATTERY

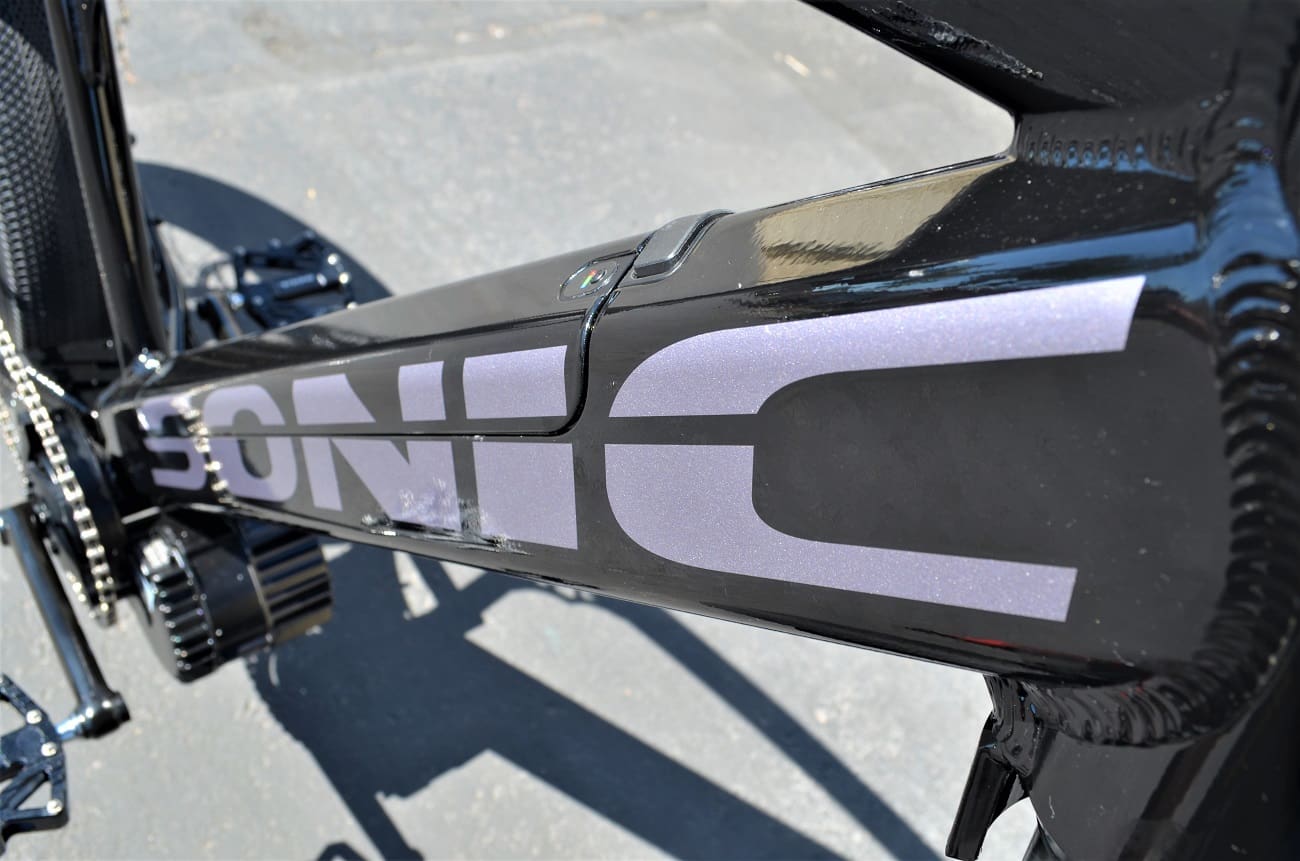

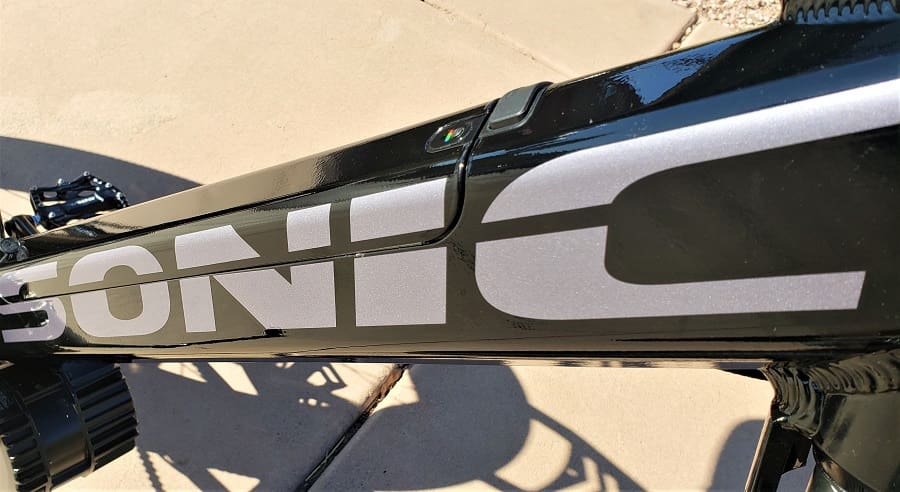

Integrated down tube battery design – sleek and clean .
50+ mile range

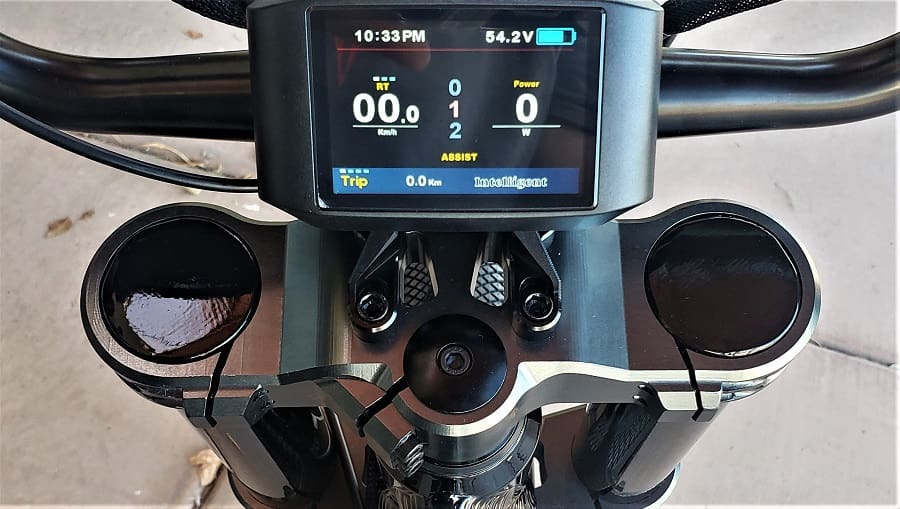

INTUITIVE COLOR DISPLAY
Know it all in a glance.
Voltage / Wattage / MPH

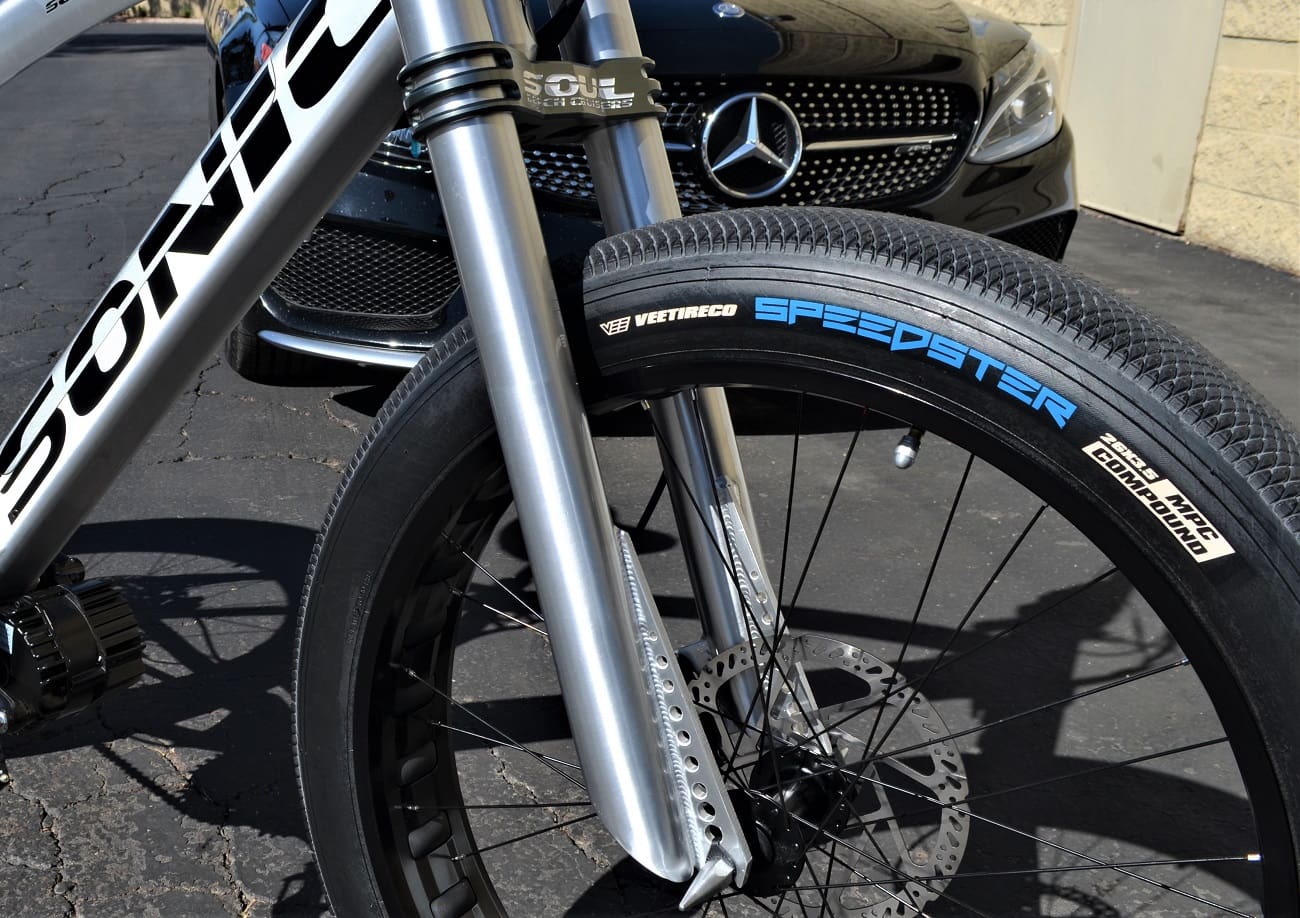

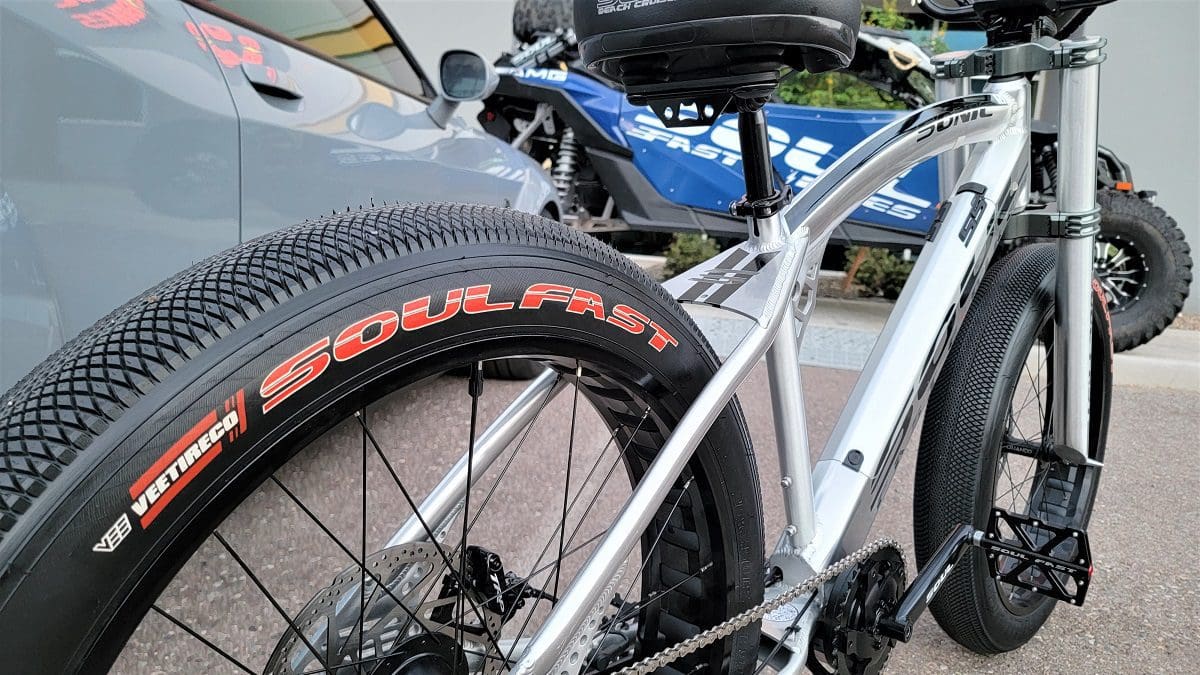

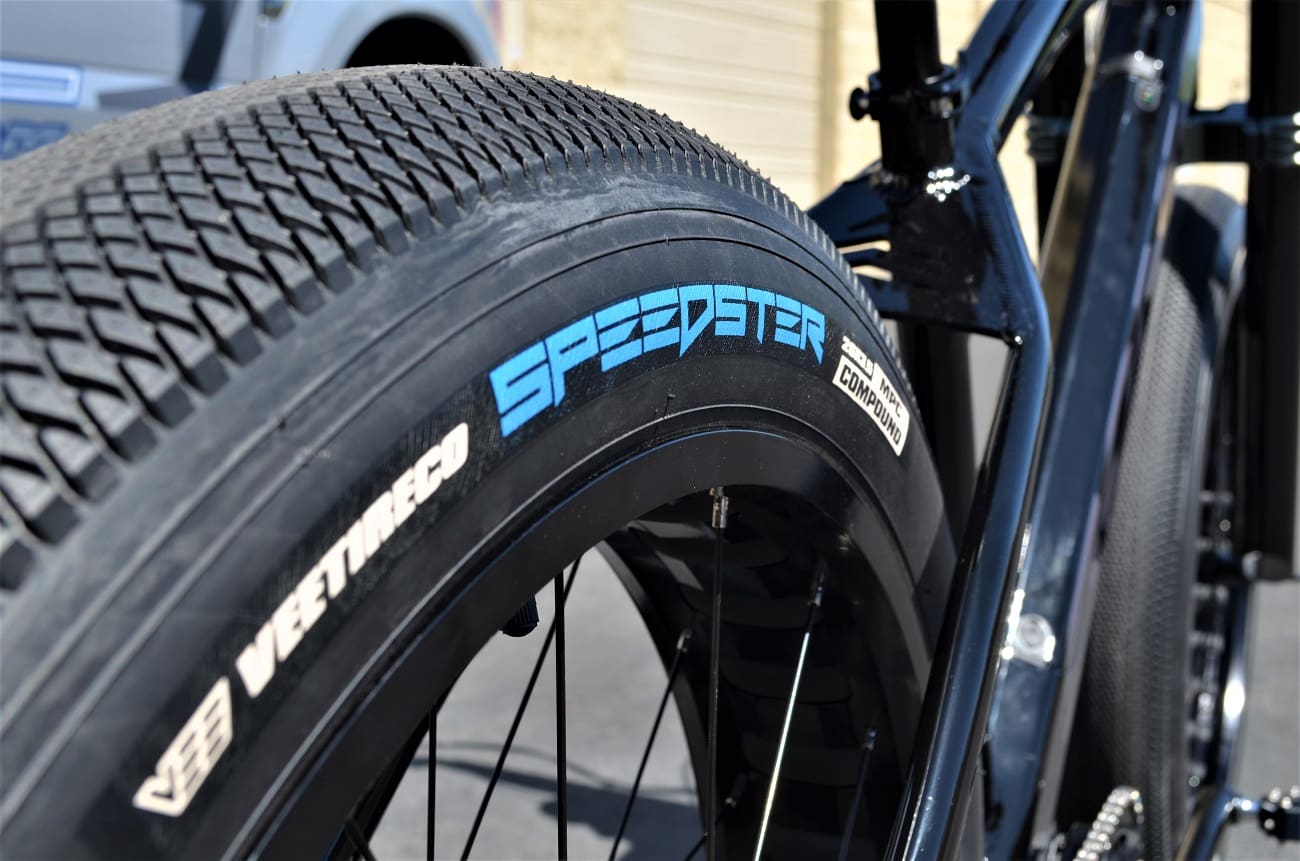

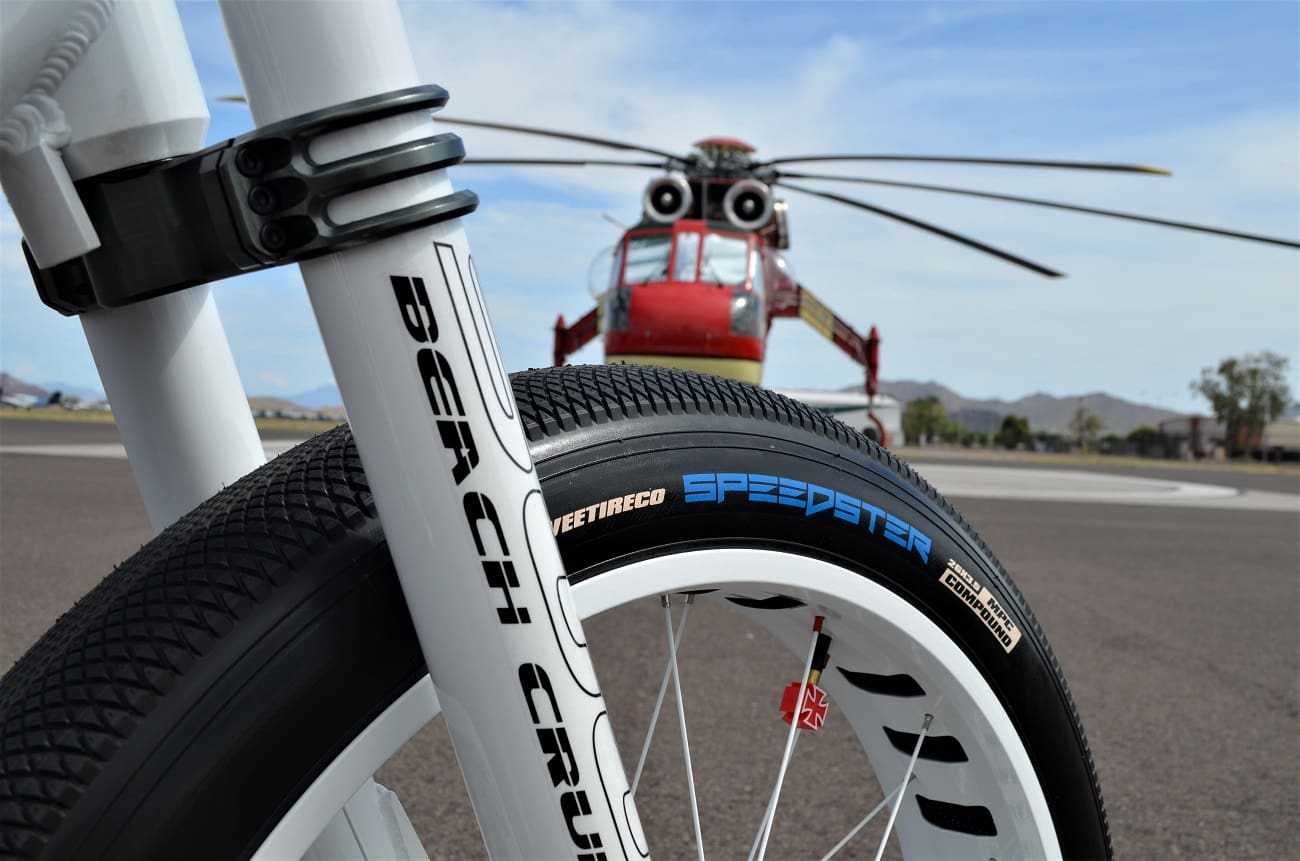

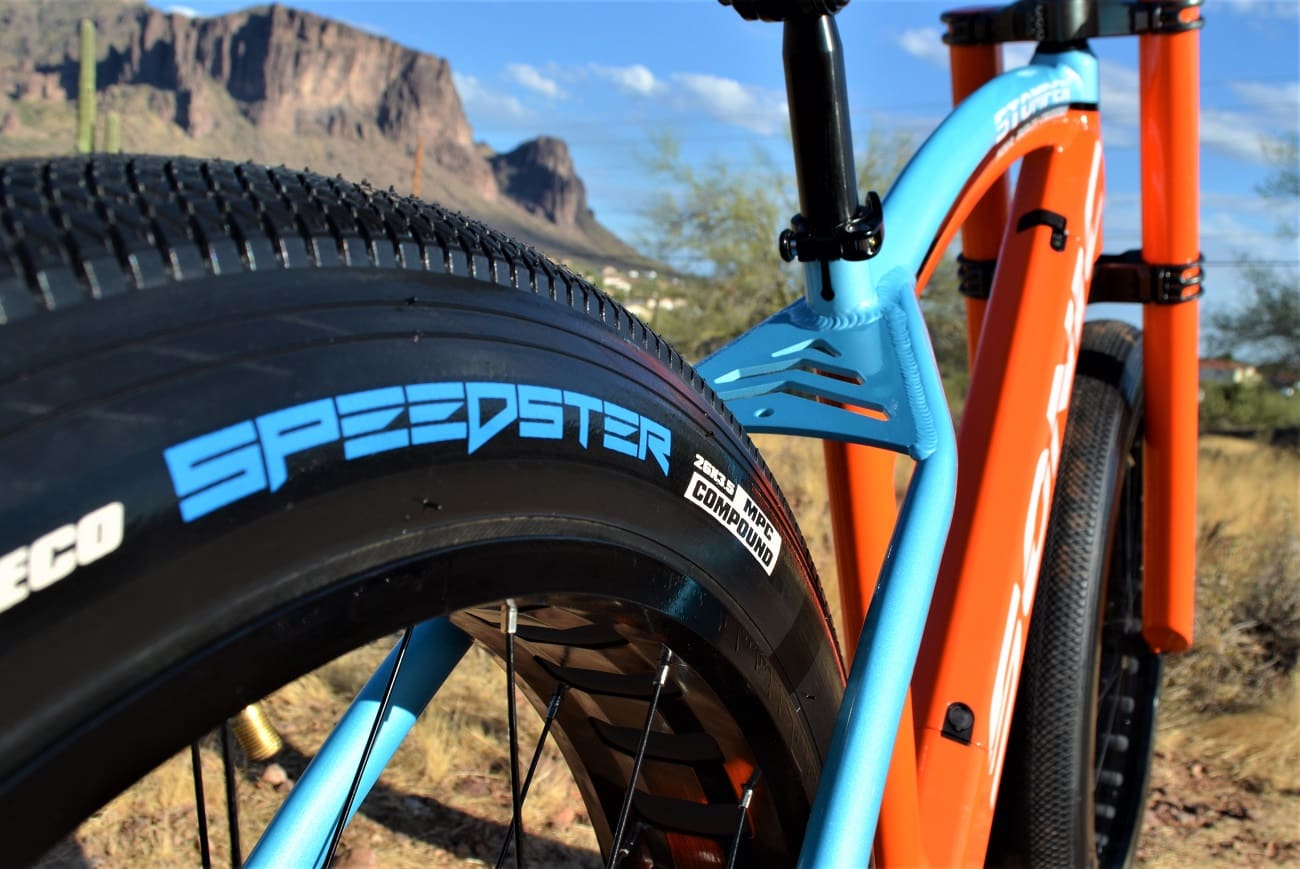

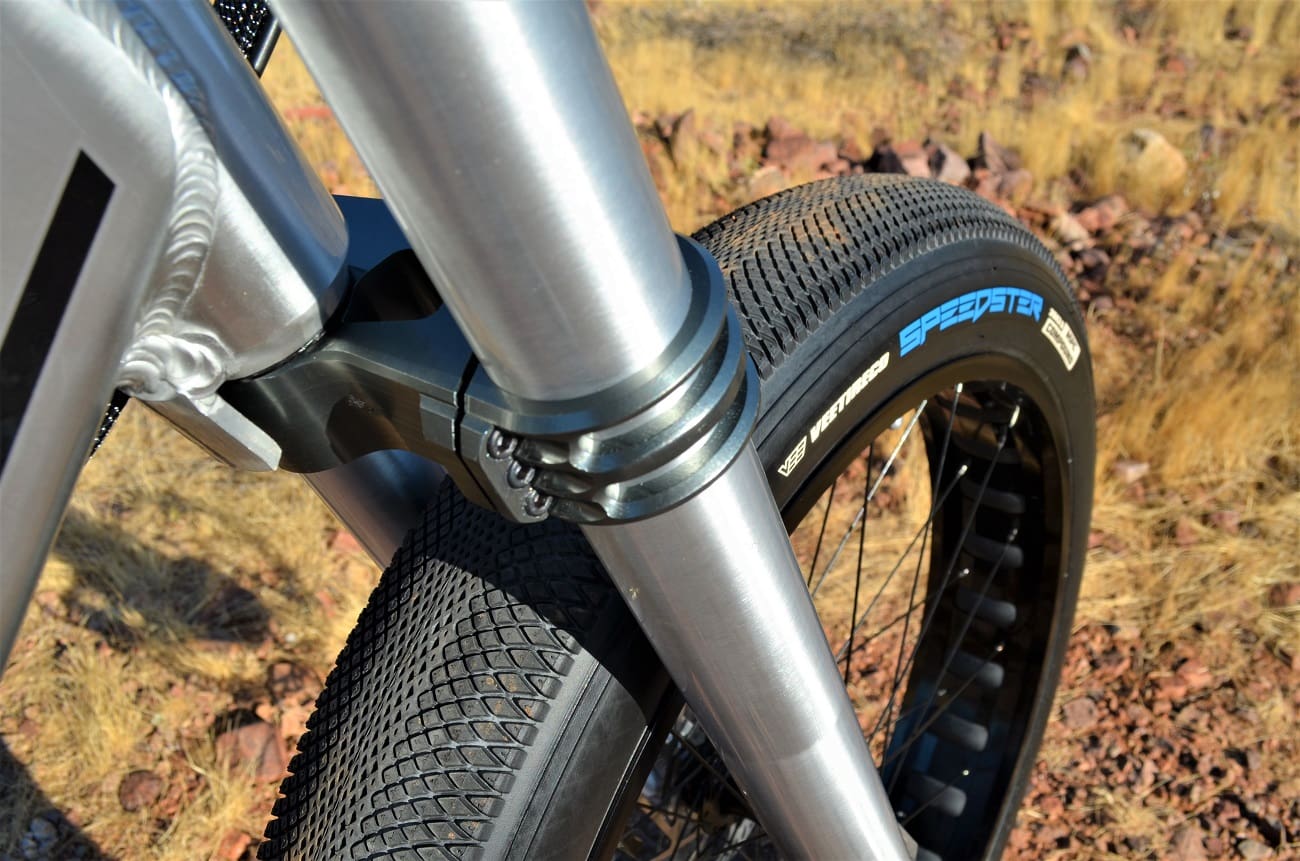

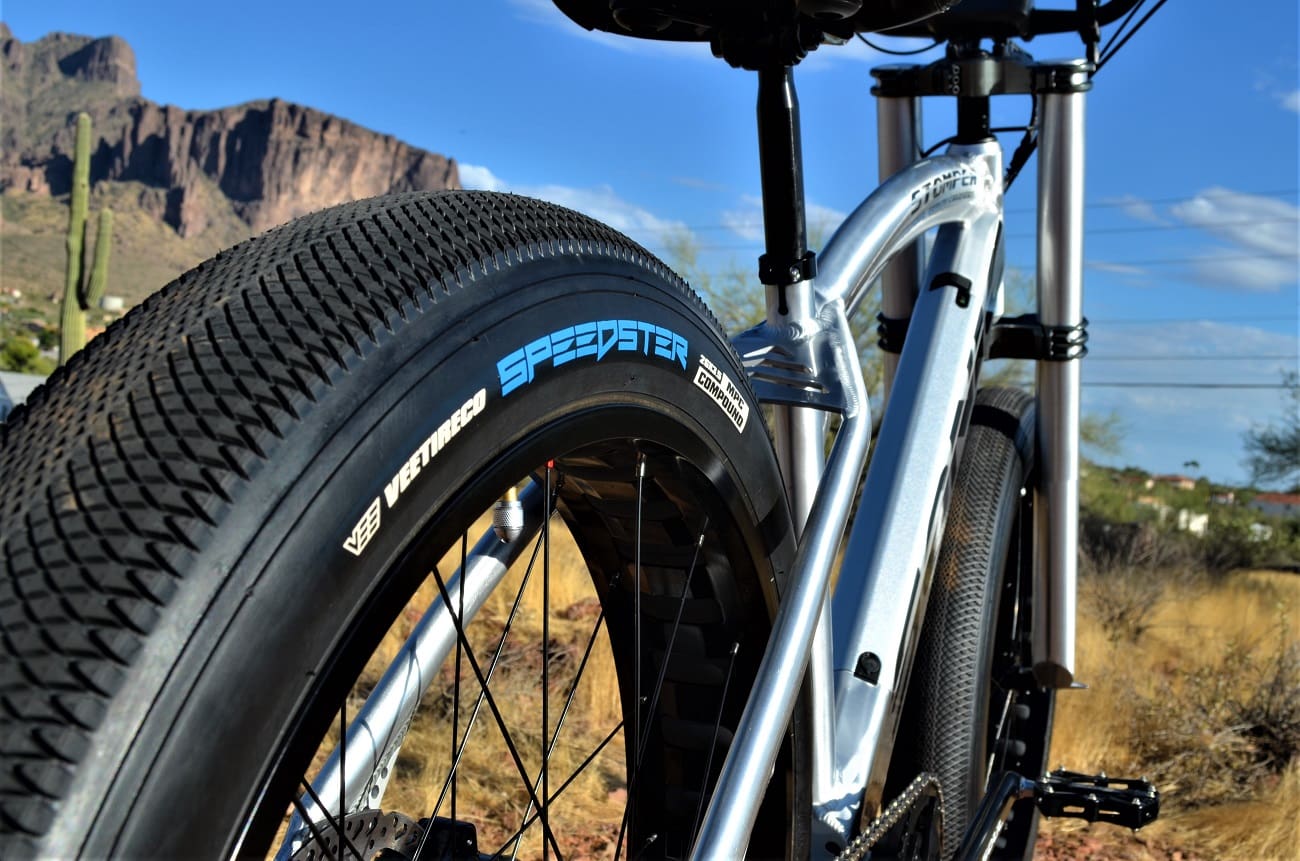

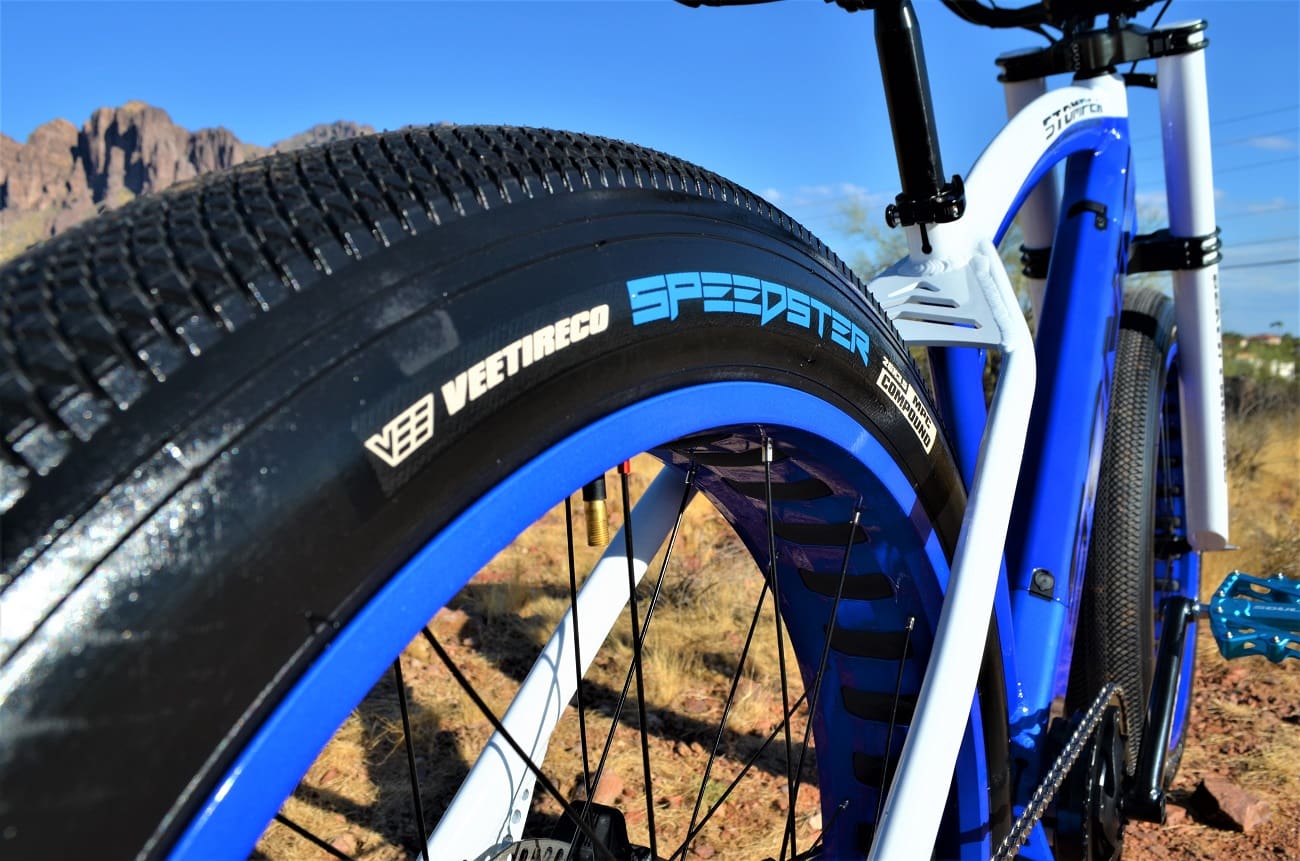

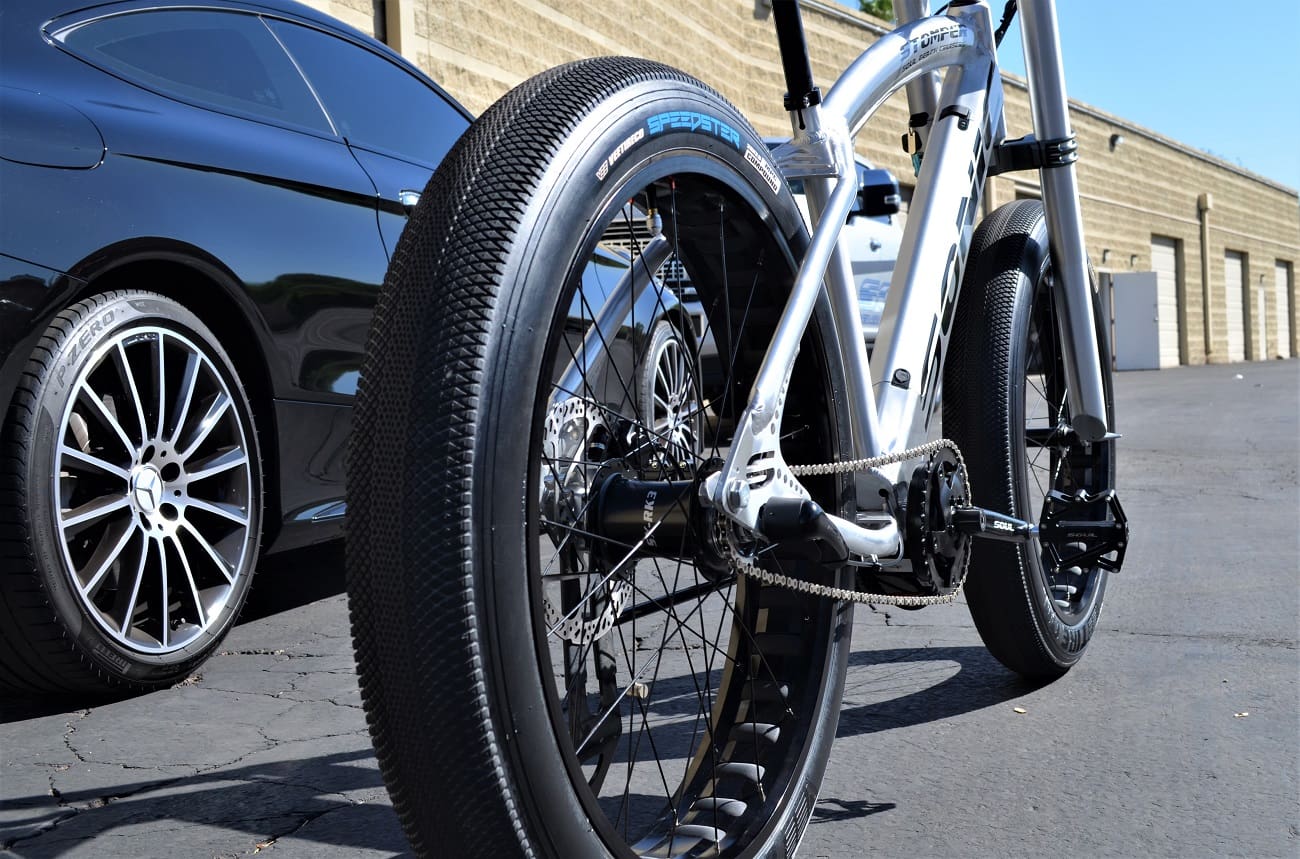

HIGH PERFORMANCE TIRES
3.5″ Speedster – keeps you in control at high speeds in all terrains.

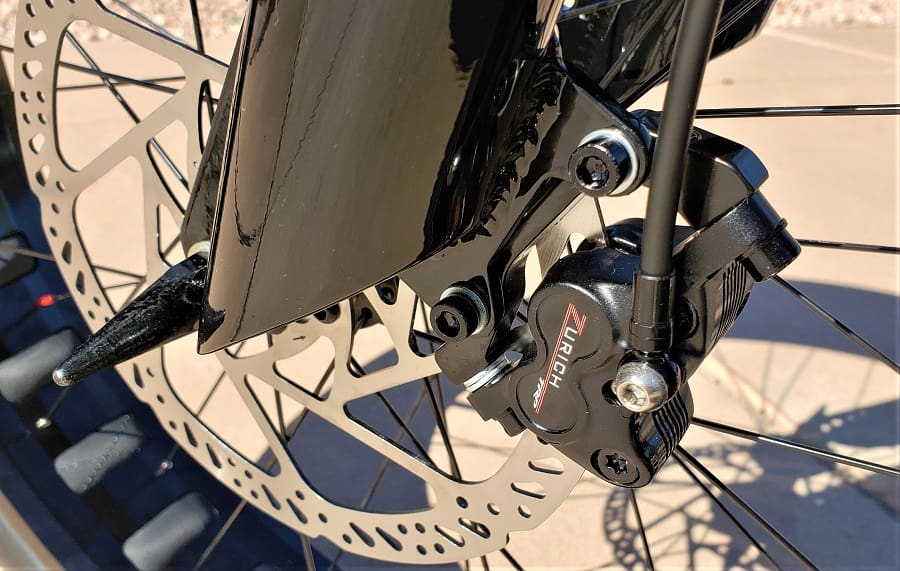

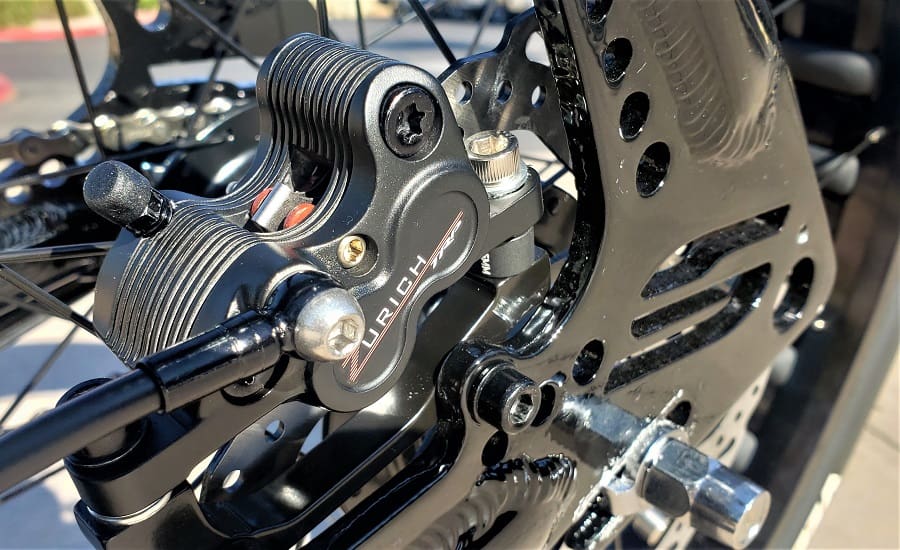

TRP 4 PISTON MTB BRAKES
Industry exclusive
Cooling fin calipers / zero fade

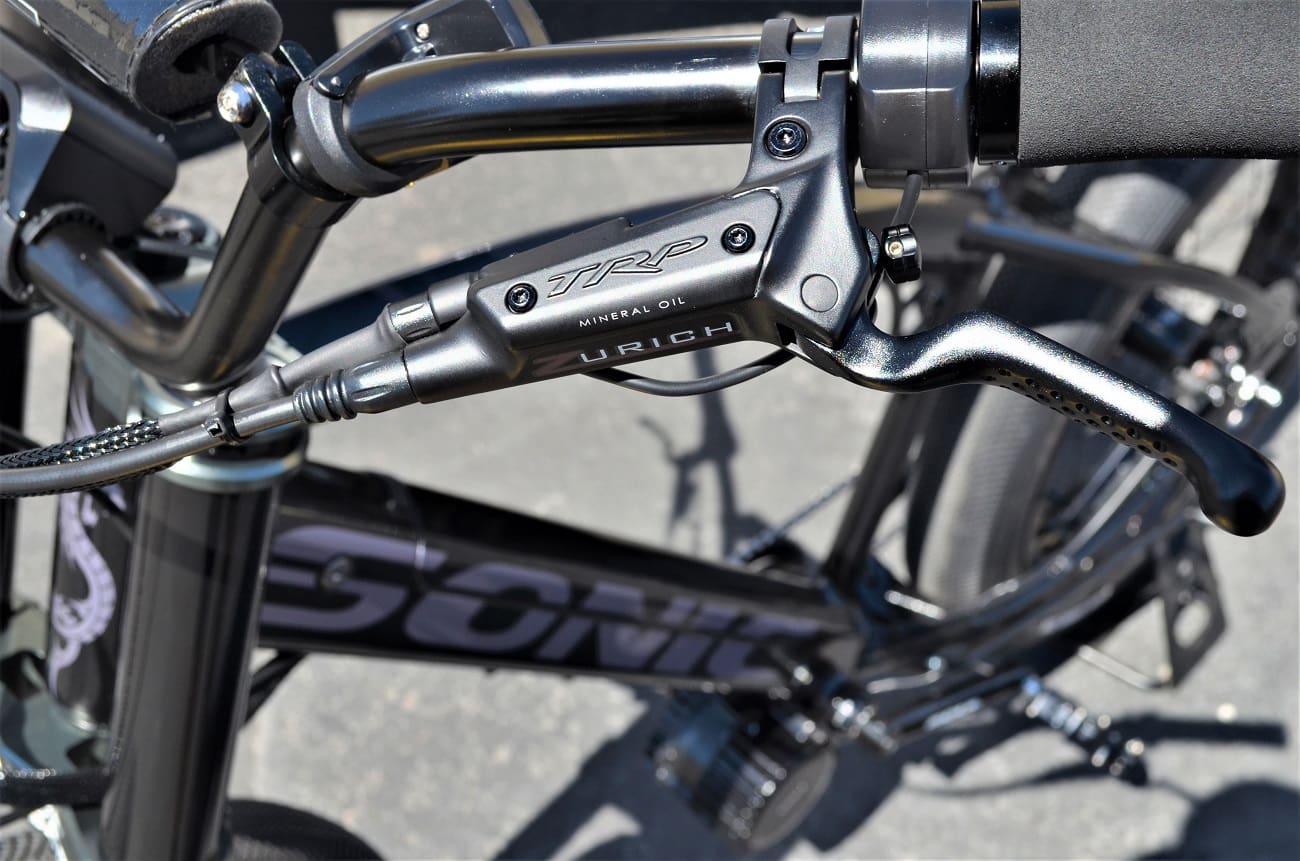

TRP SHORT THROW LEVERS
Amazing 2 finger stopping power
203mm BRAKE ROTORS
Size matters in this department

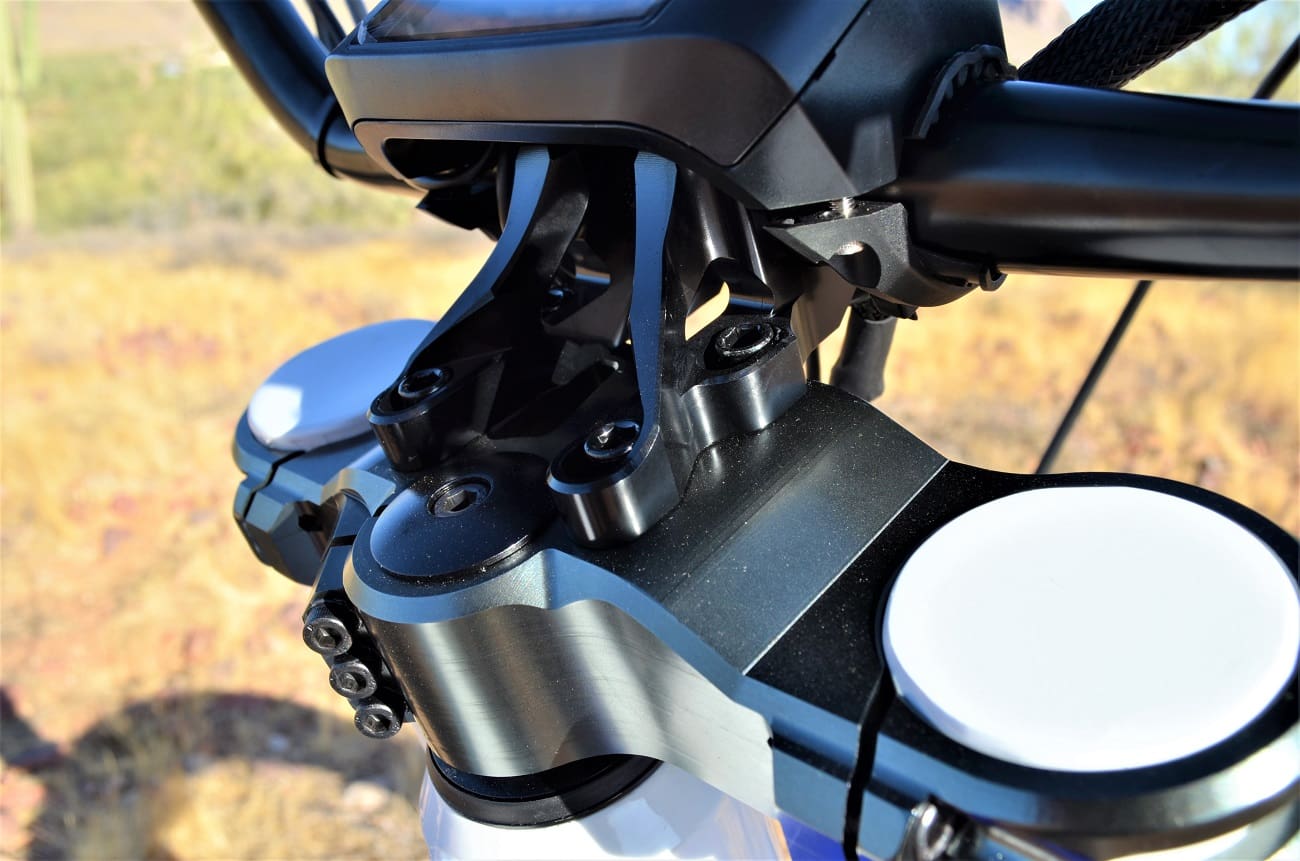

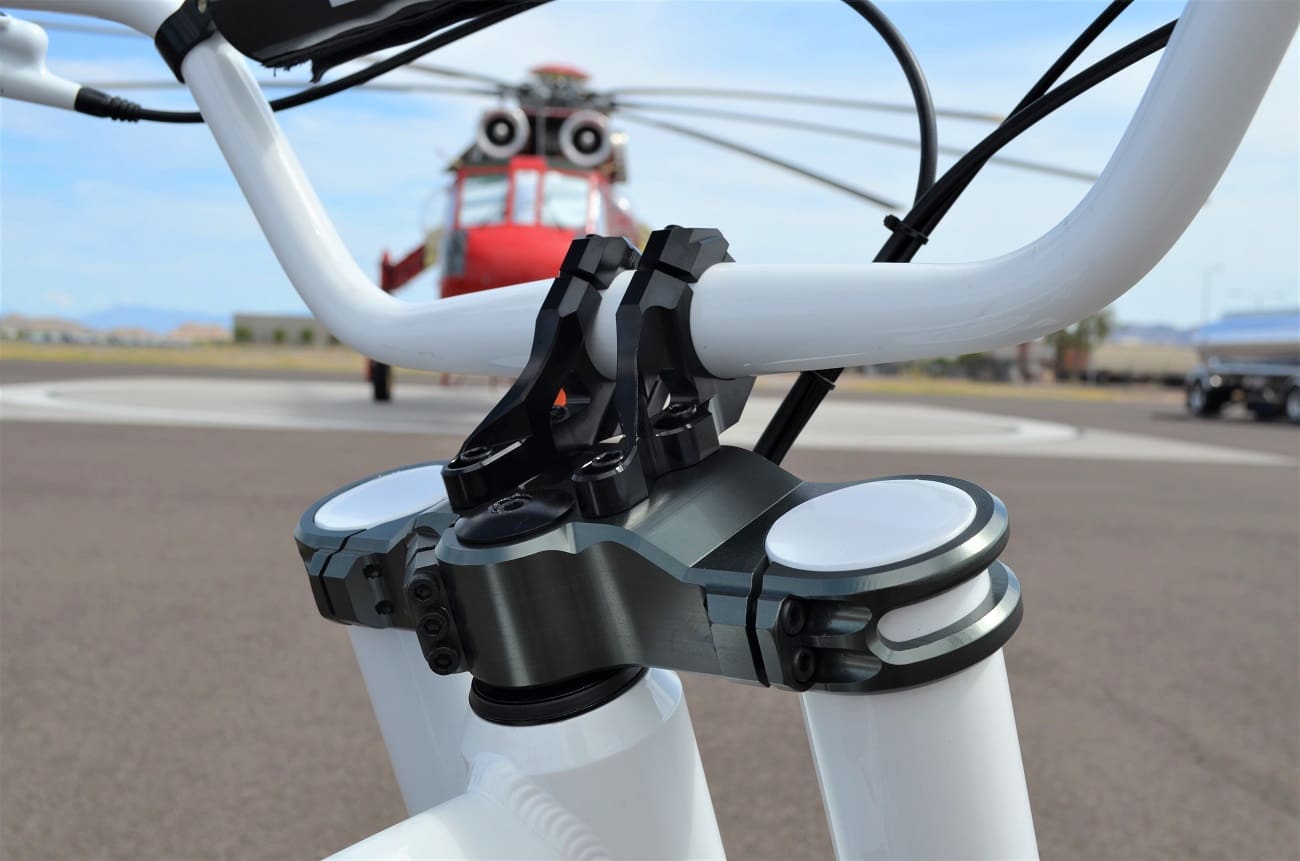

31.8 BILLET TOP CLAMP
Adjustable for that perfect fit

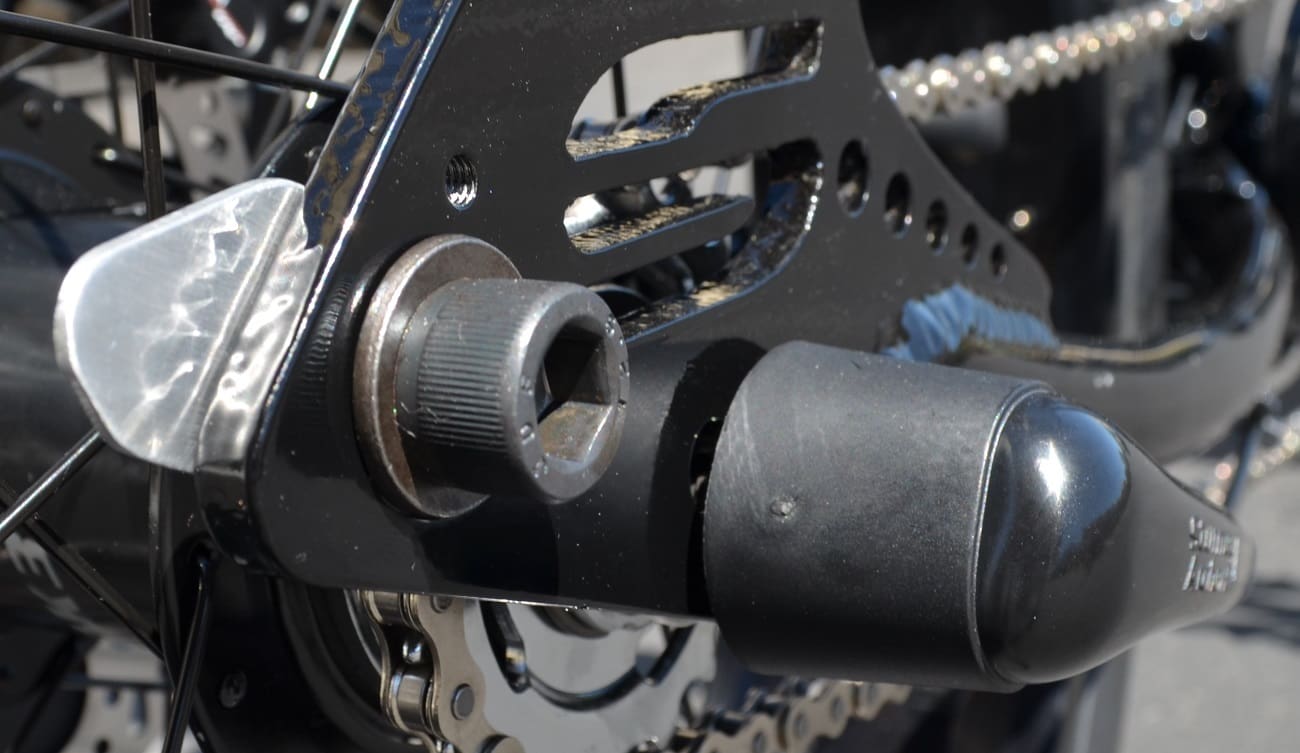

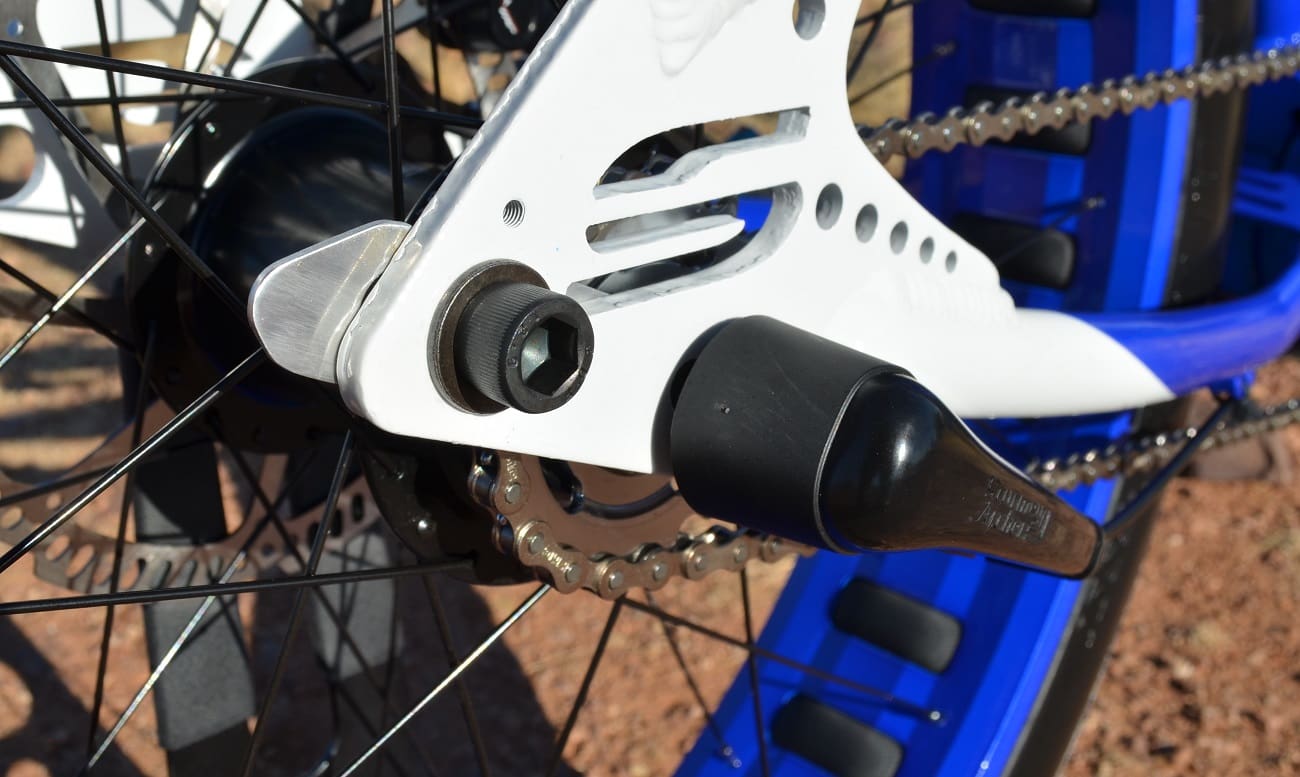

CUSTOM CHAIN TENSIONER
Big Power requires the perfect alignment
BILLET ALUM PEDALS
Insuring zero slippage
SOUL SADDLE
Comfort covered for the long haul ~
Reflective safety Soul logo

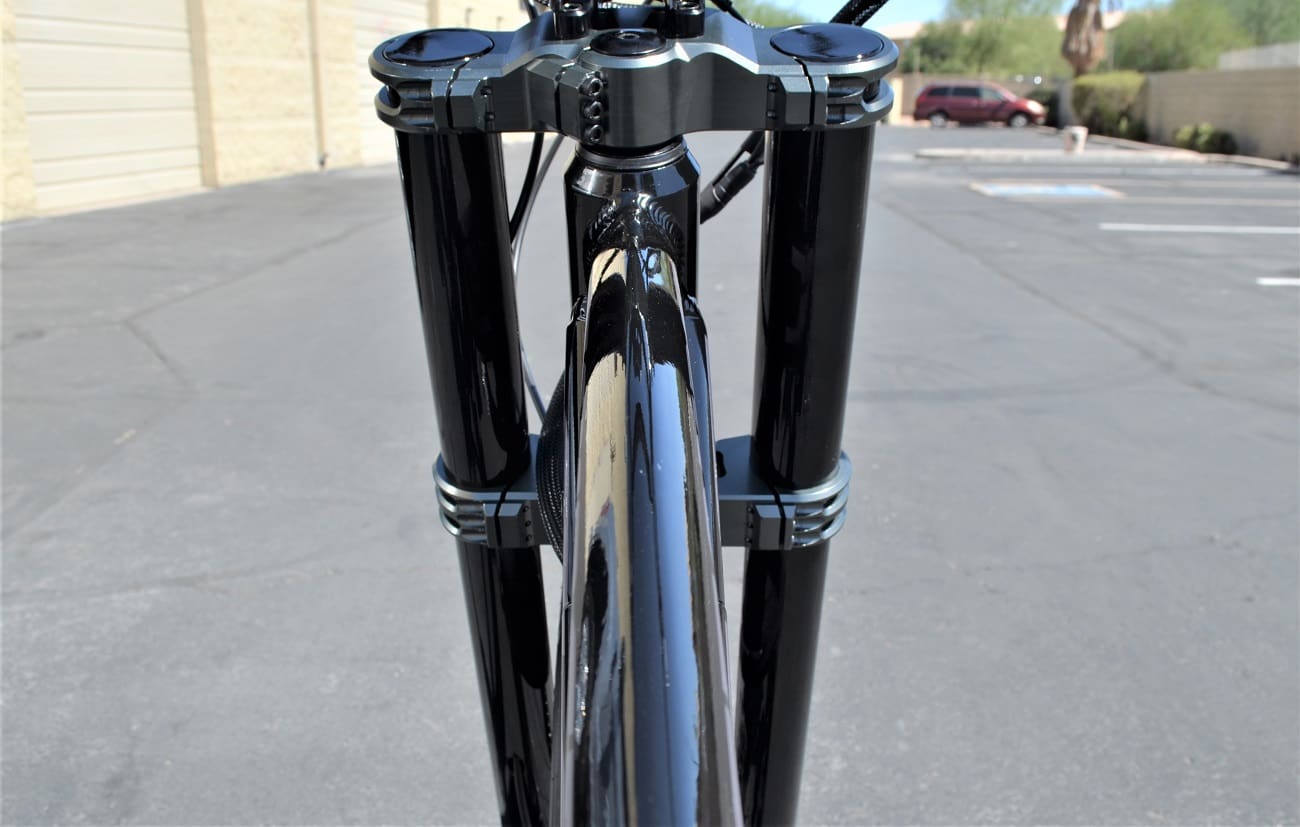

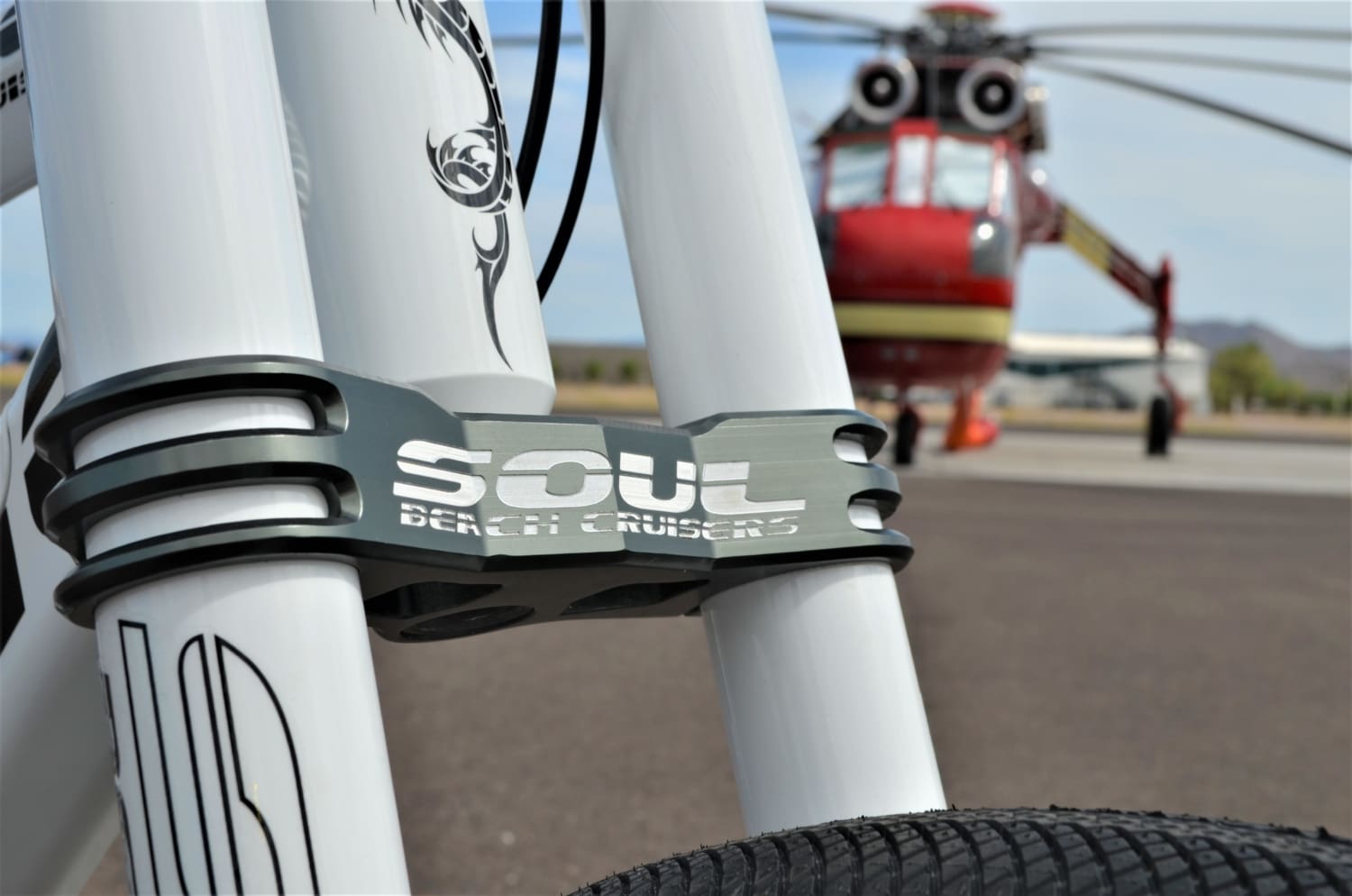

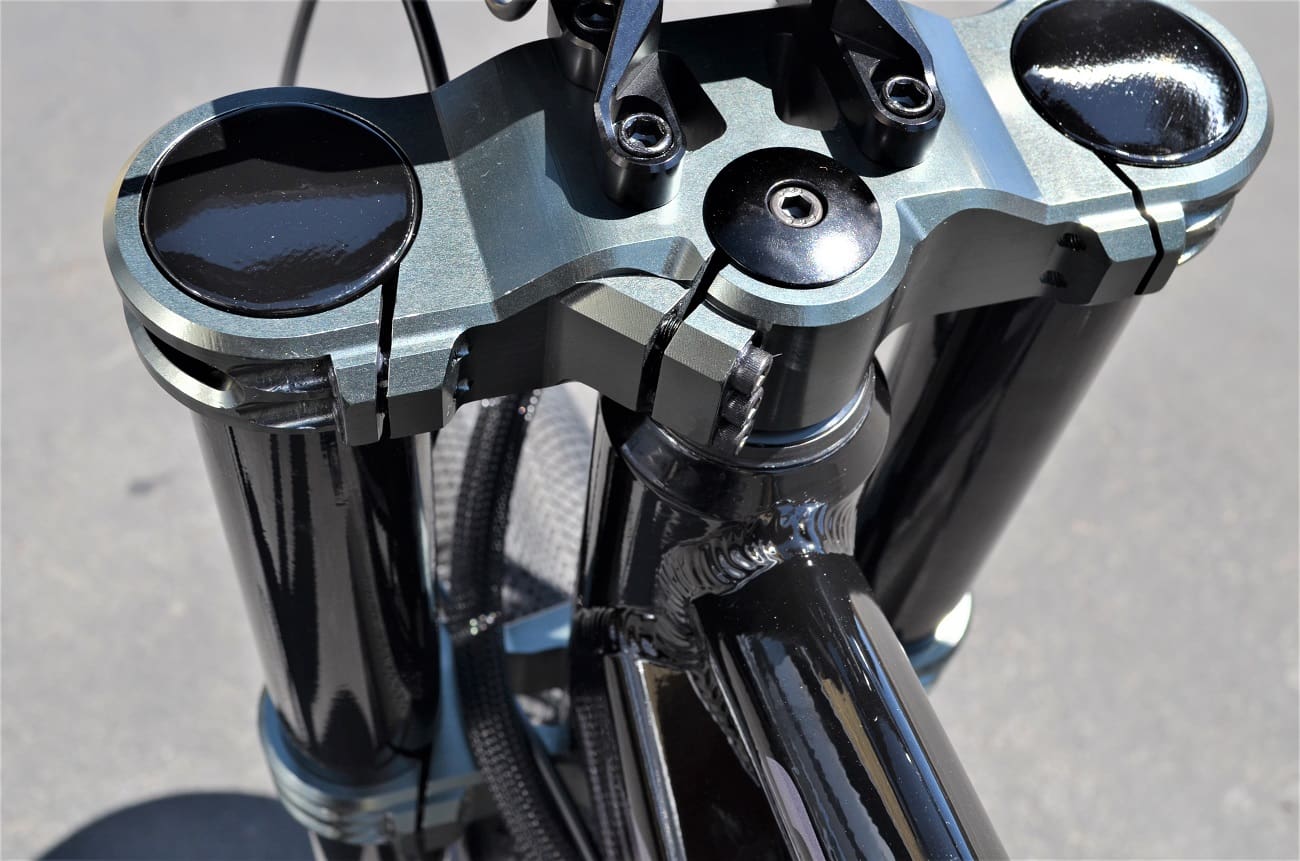

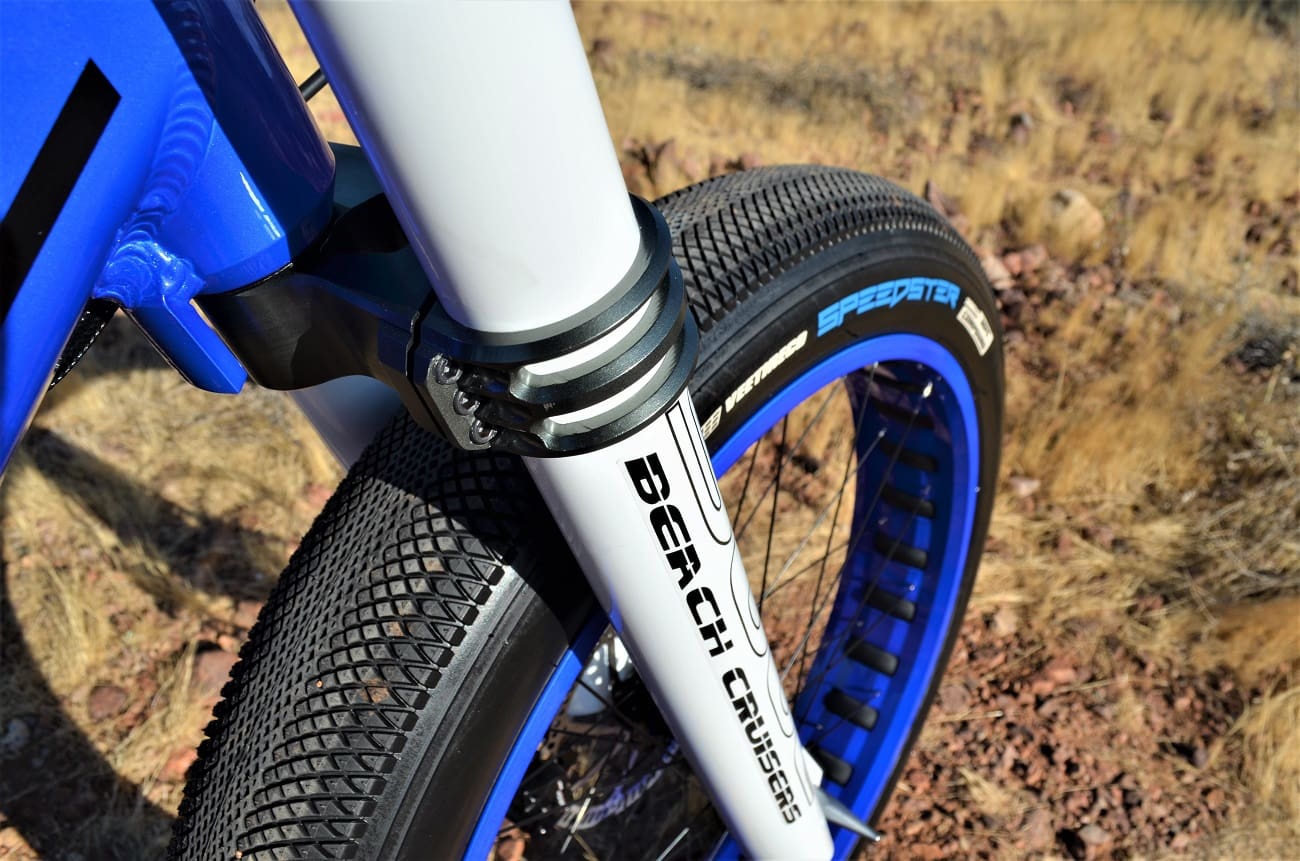

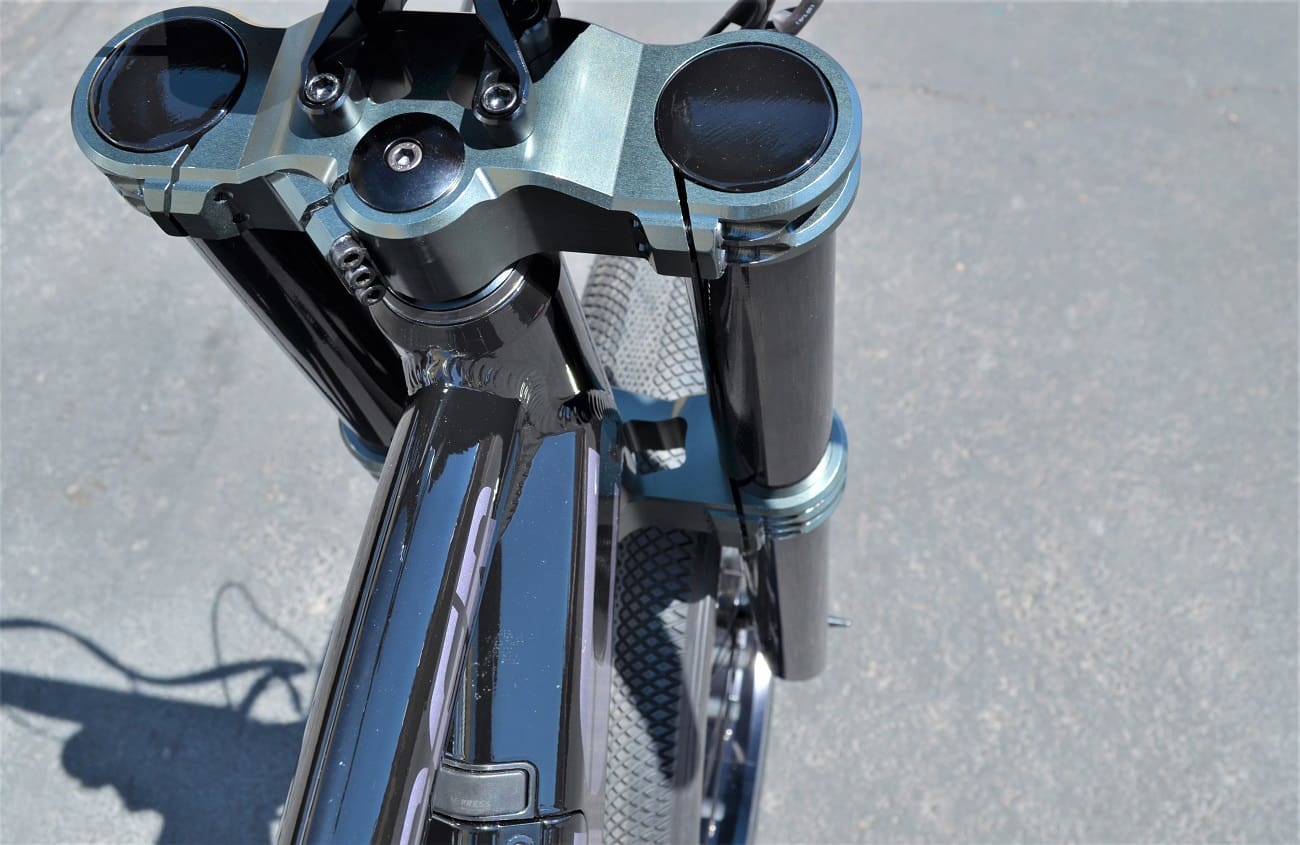

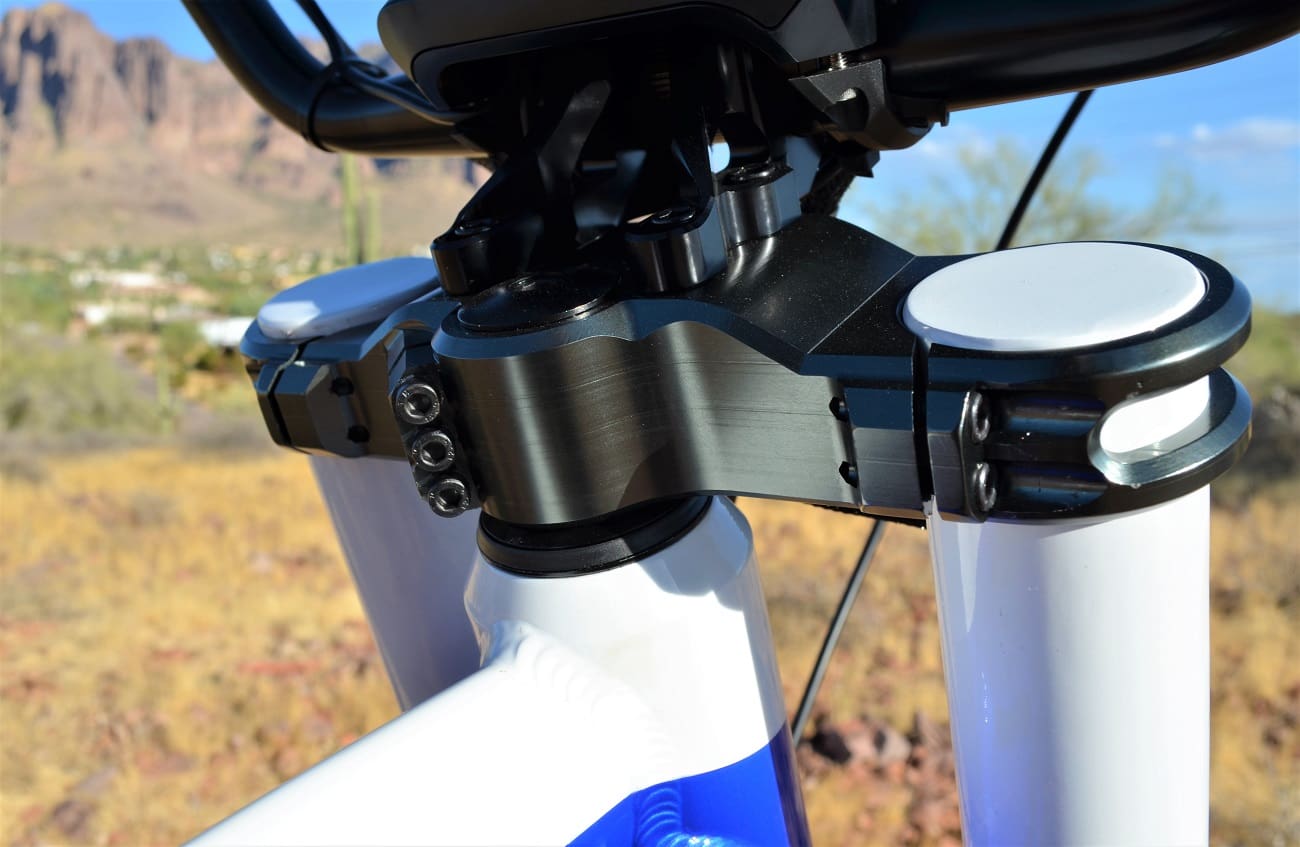

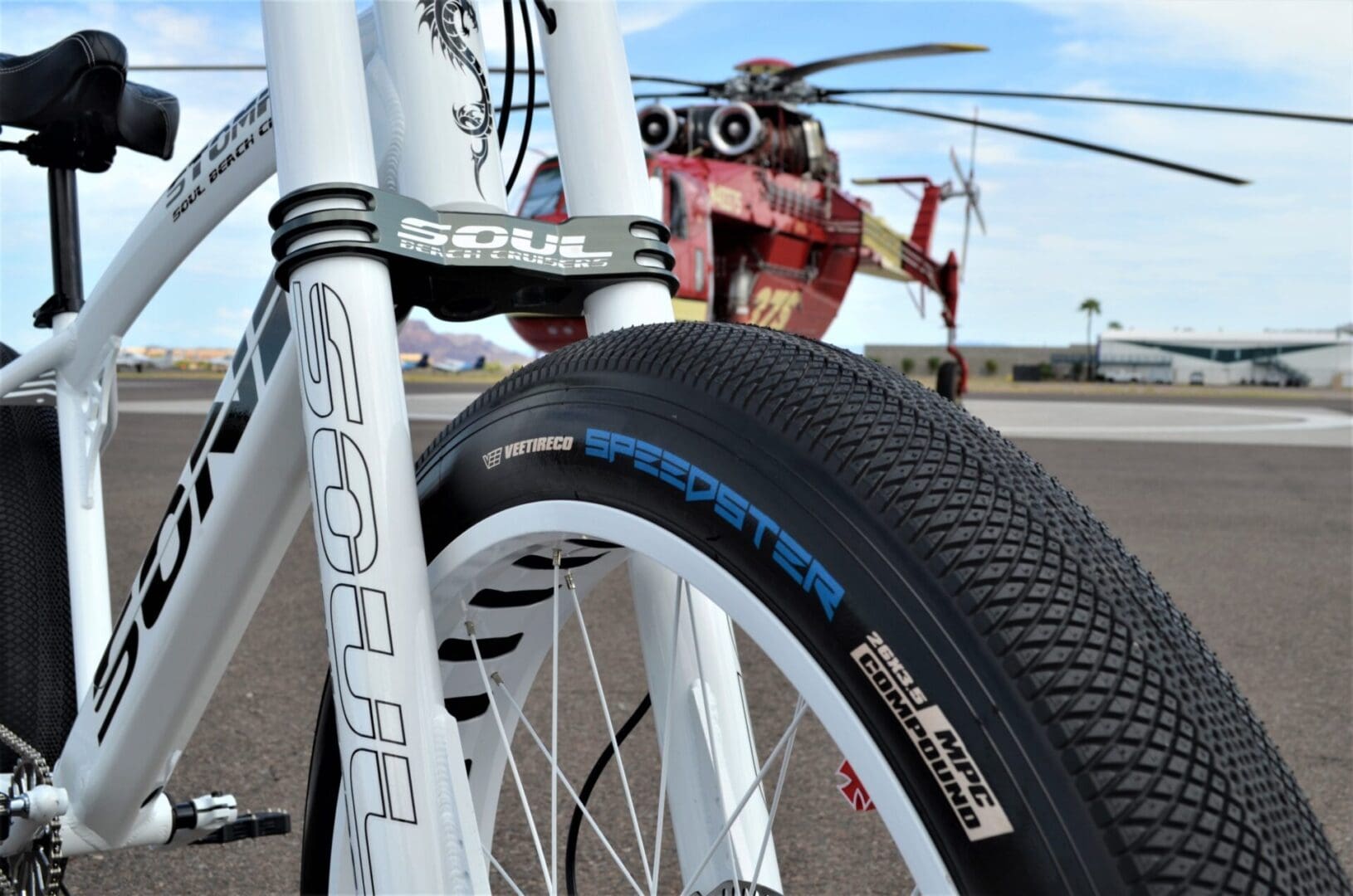

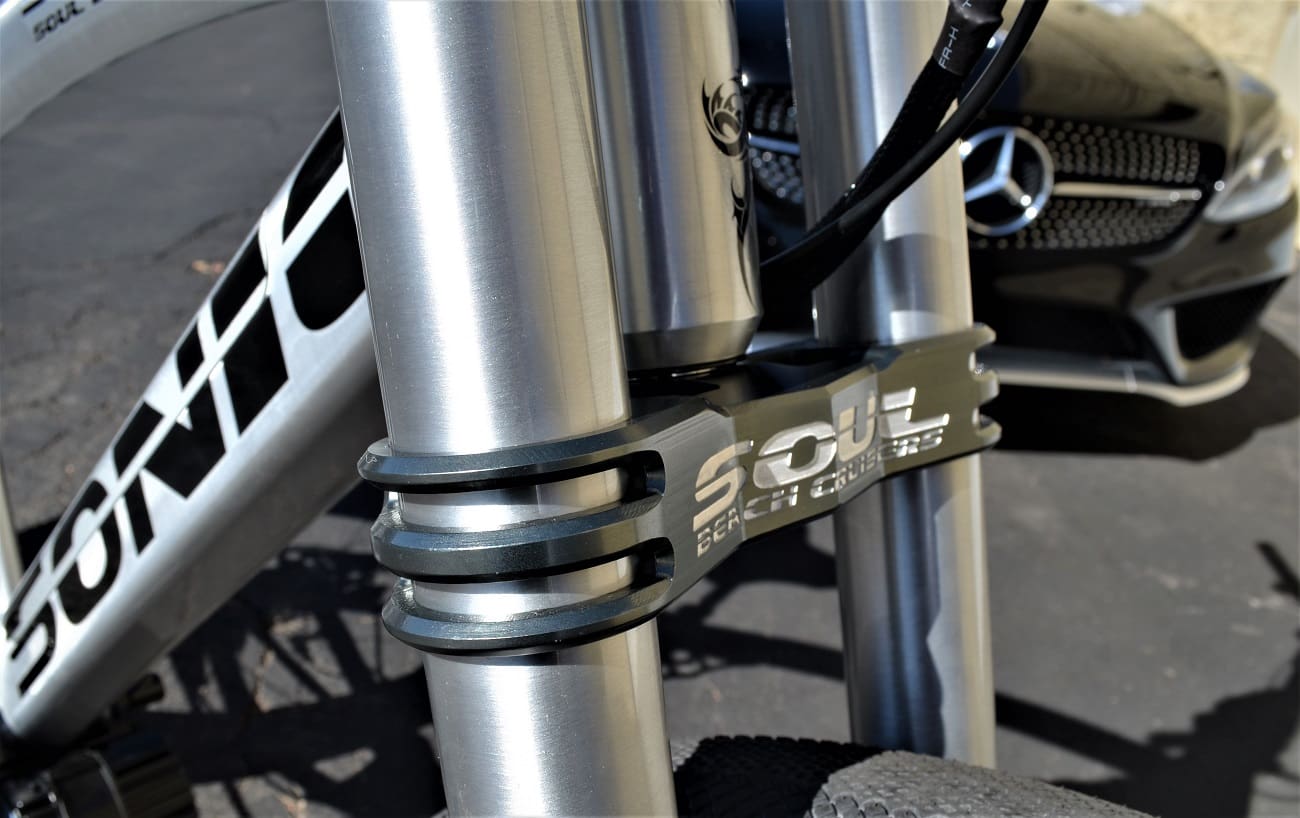

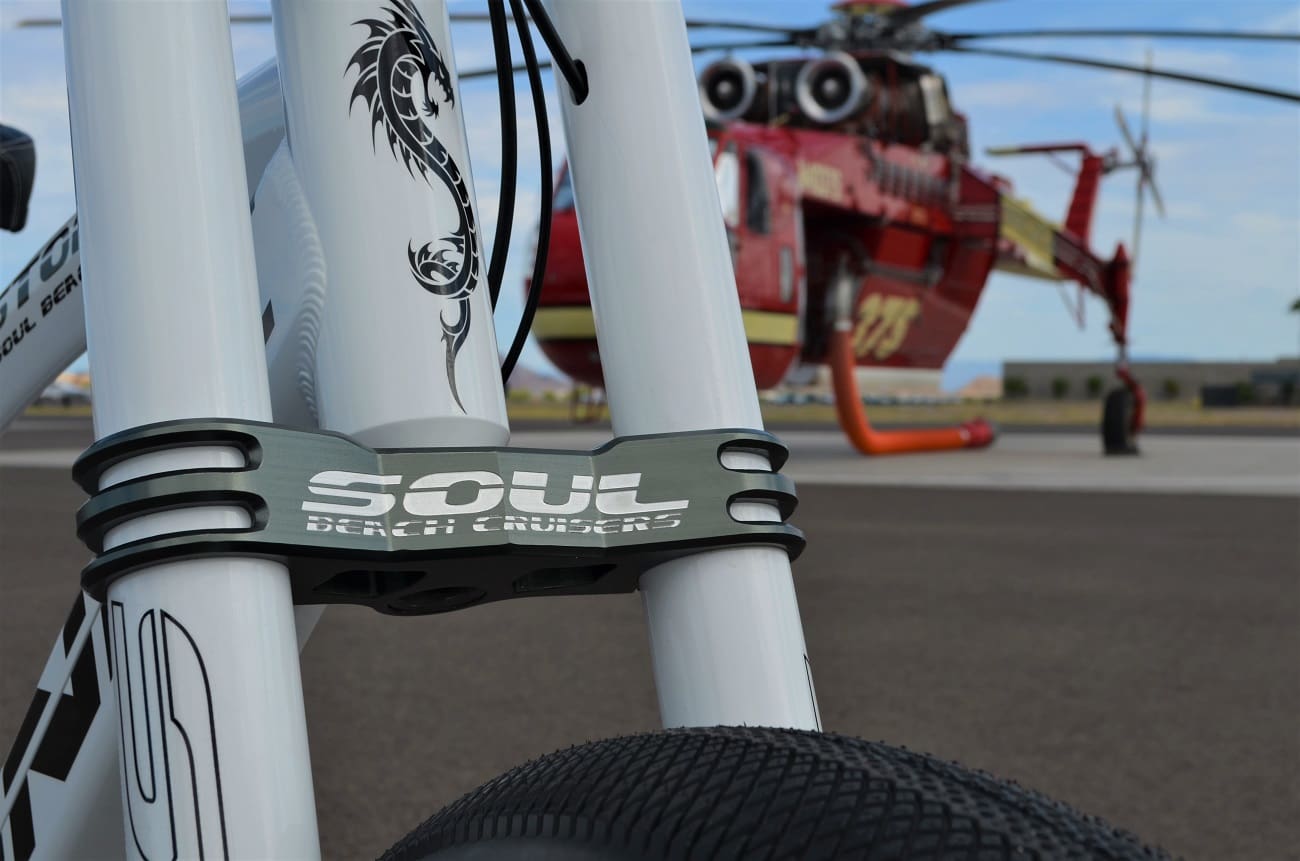

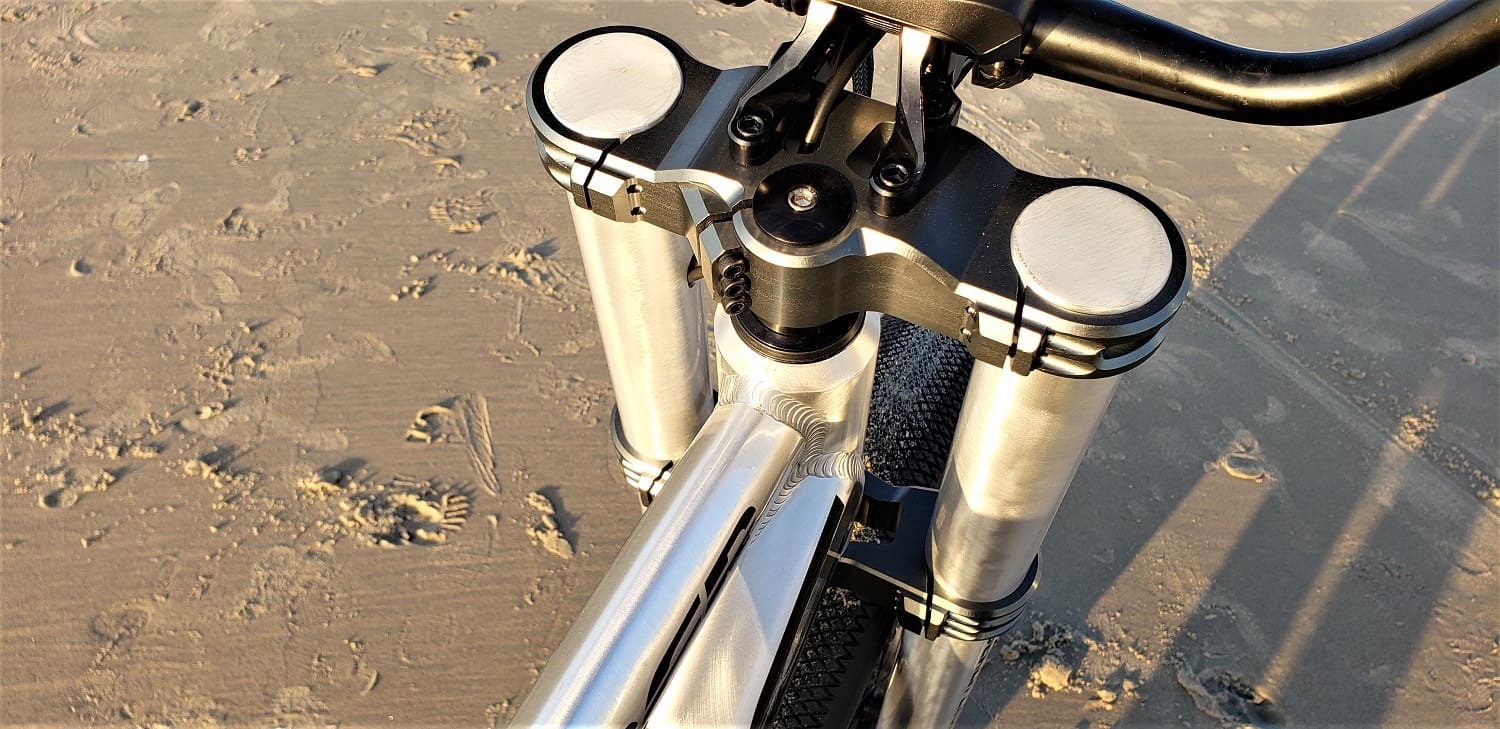

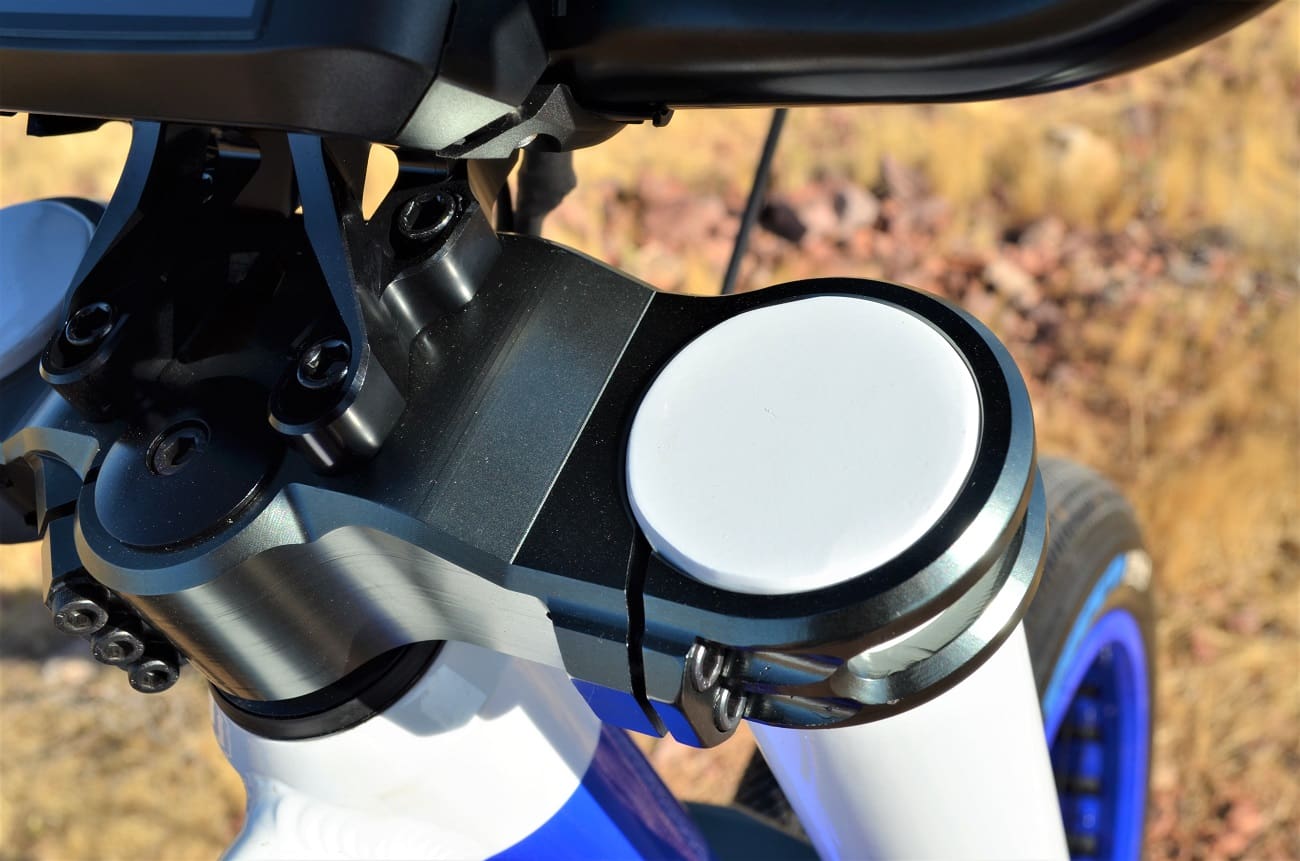

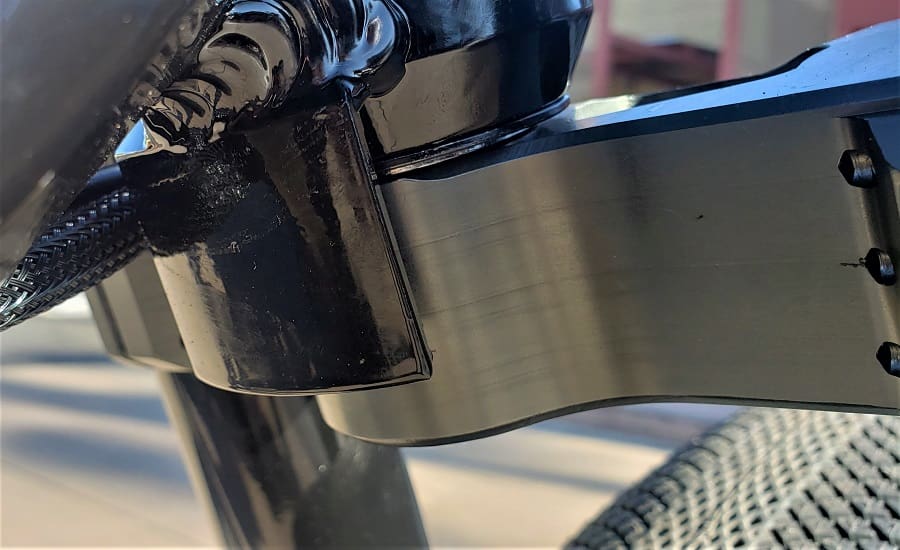

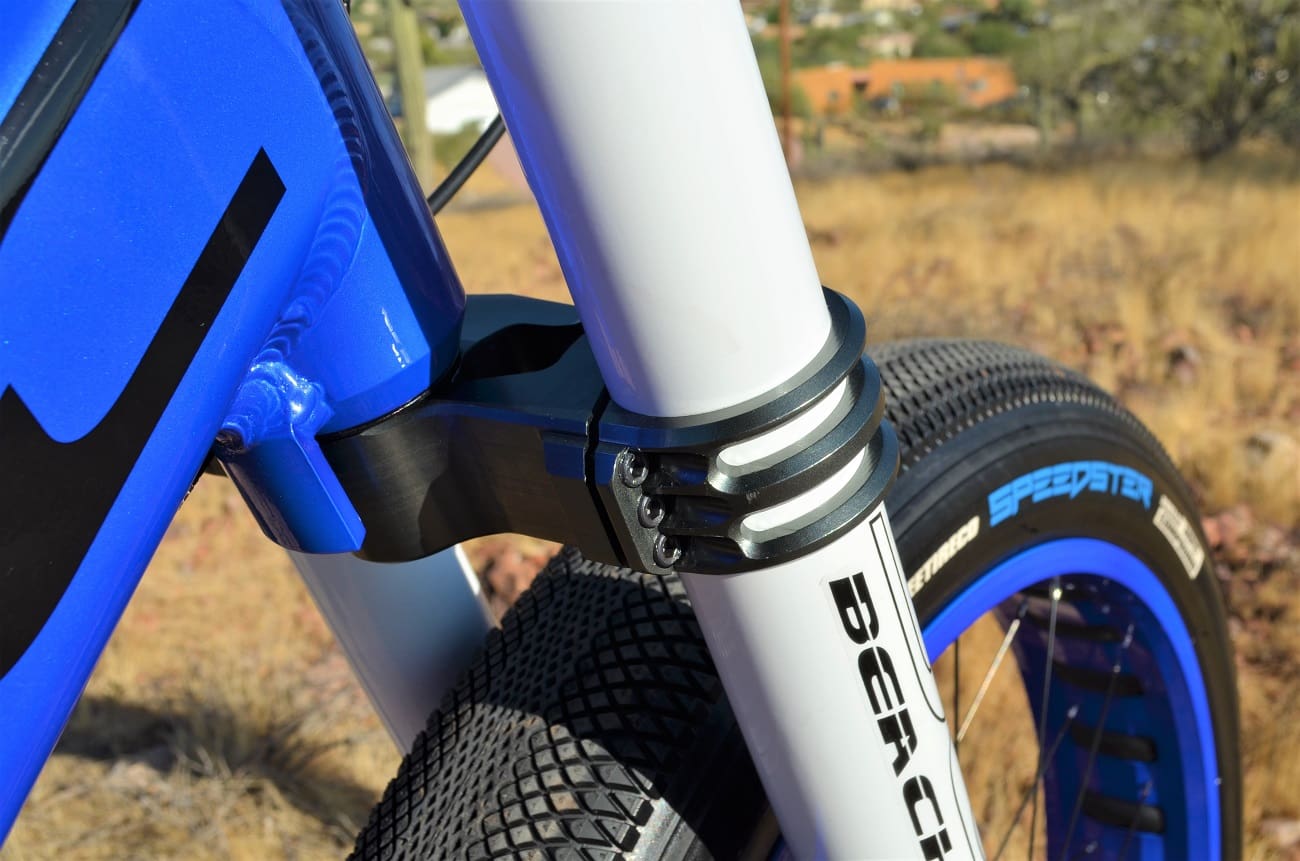

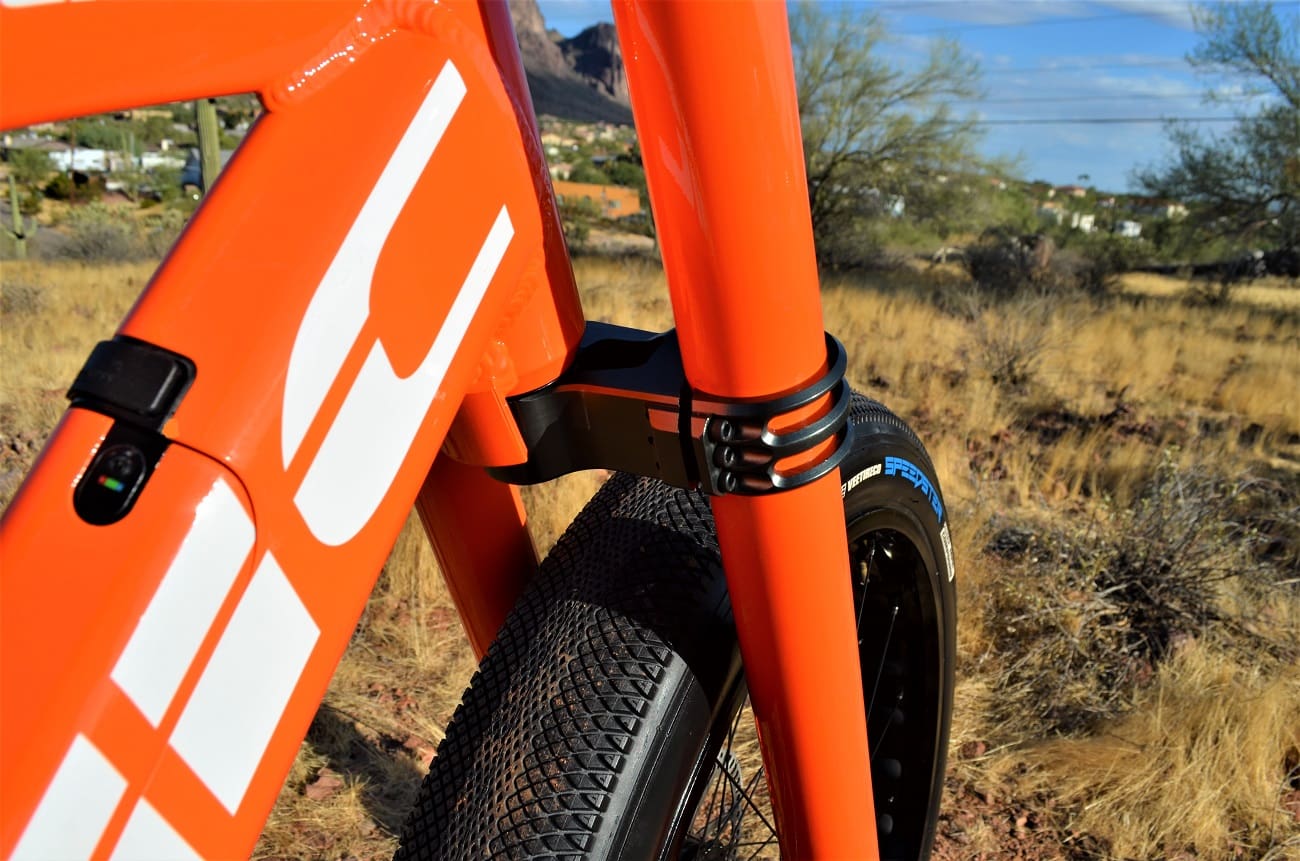

OUR BAD BOY SIGNATURE CNC BILLET TRIPLE CLAMPS WITH MASSIVE 2″ FORKS. ONLY FROM THE PROS AT SOUL
SS F1 – BLOW THE DOORS OFF OF EVERYONE
52V SONIC SS F1 $5999
SALE $4995 / SAVE $1000
MOVE OVER OR GET MOTO’D OVER
Want the best we have covered with our SUPER SOUL FAST 1. Step up to the top of food chain with a extra serving of power from the most powerful mid drive and world class performance components.
The BBSHD03 1000 produces 1480W+ when matched to the 48V 14.5 AH Samsung battery. 5 levels of pedal assist with continual thumb throttle override.
WHEN YOU’RE HOT…… YOU ARE HOT…. ALWAYS SELLING OUT !
AFTER 14 MONTHS OF BACK ORDERED PERFORMANCE BRAKES FROM TRP, WE’RE BACK TO MANUFACTURING!
CALL US FOR MORE INFO 657-215-0099

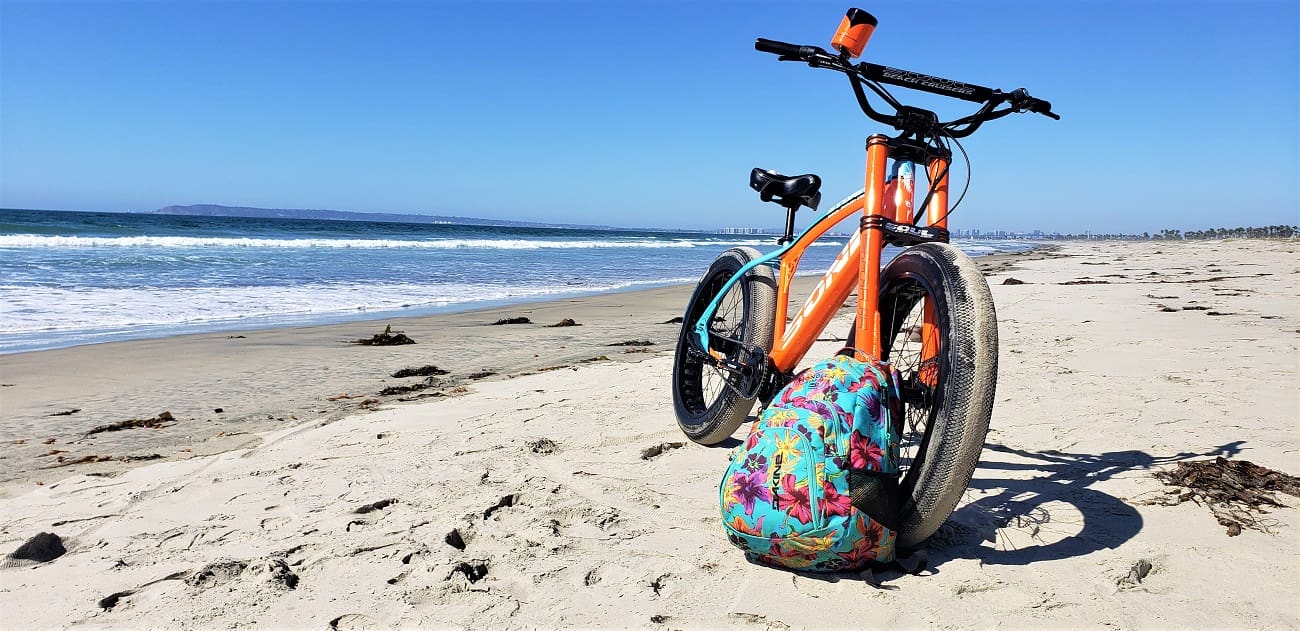

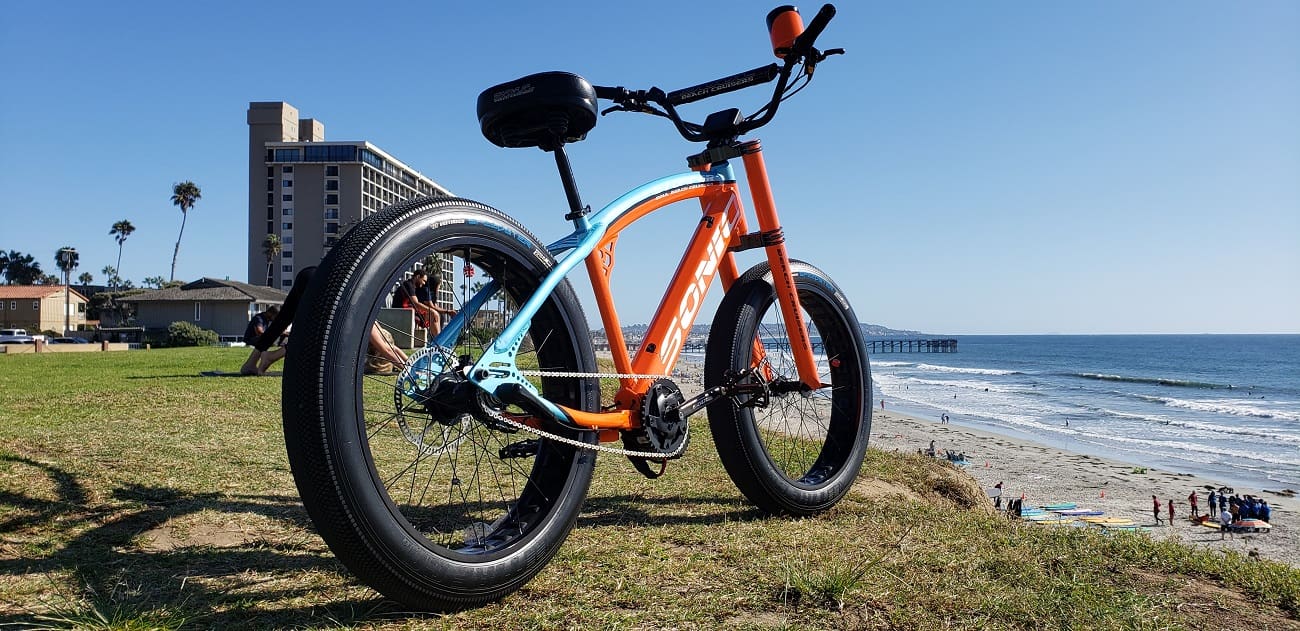

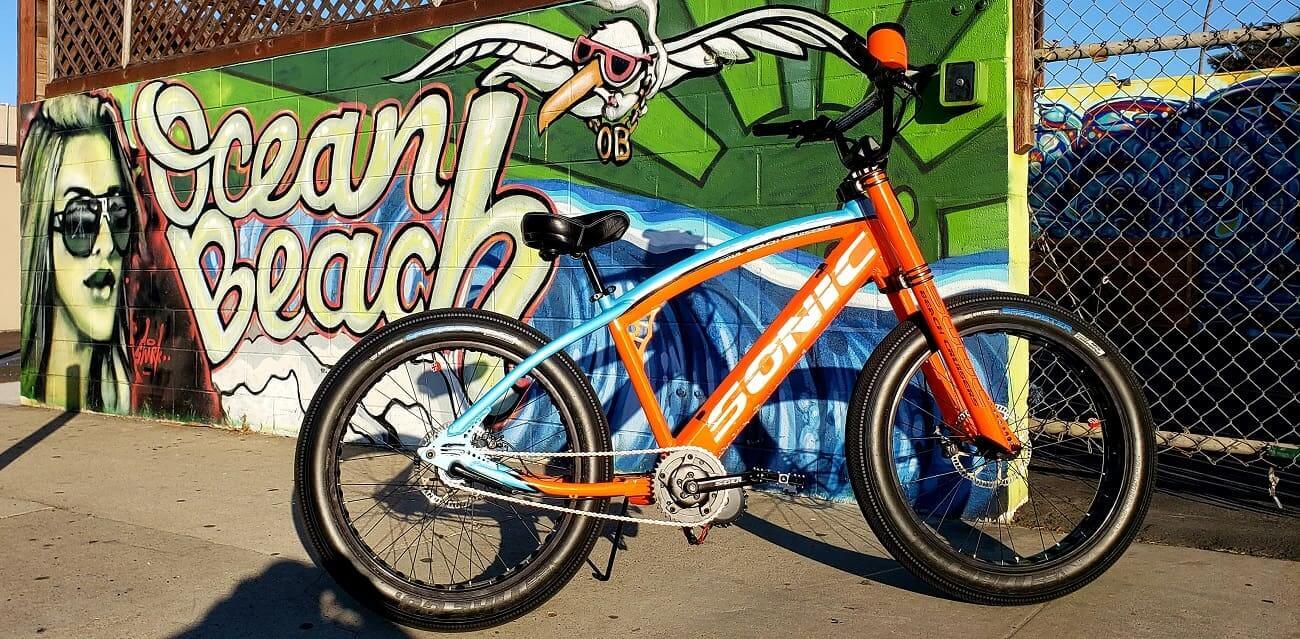

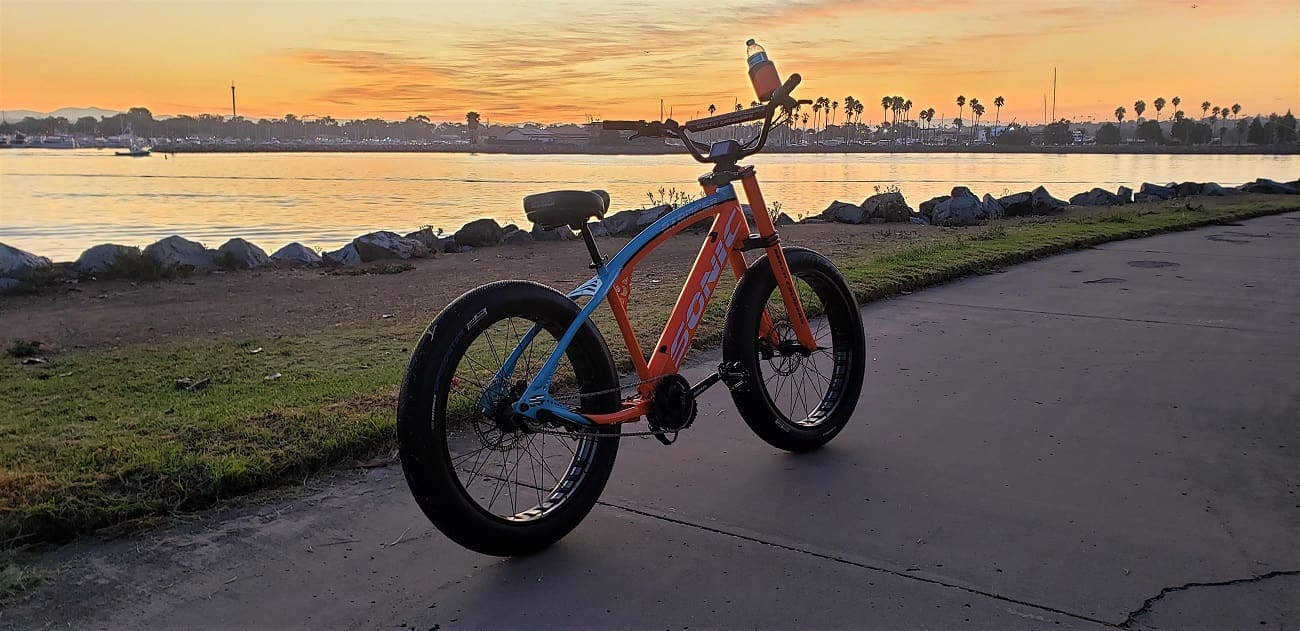

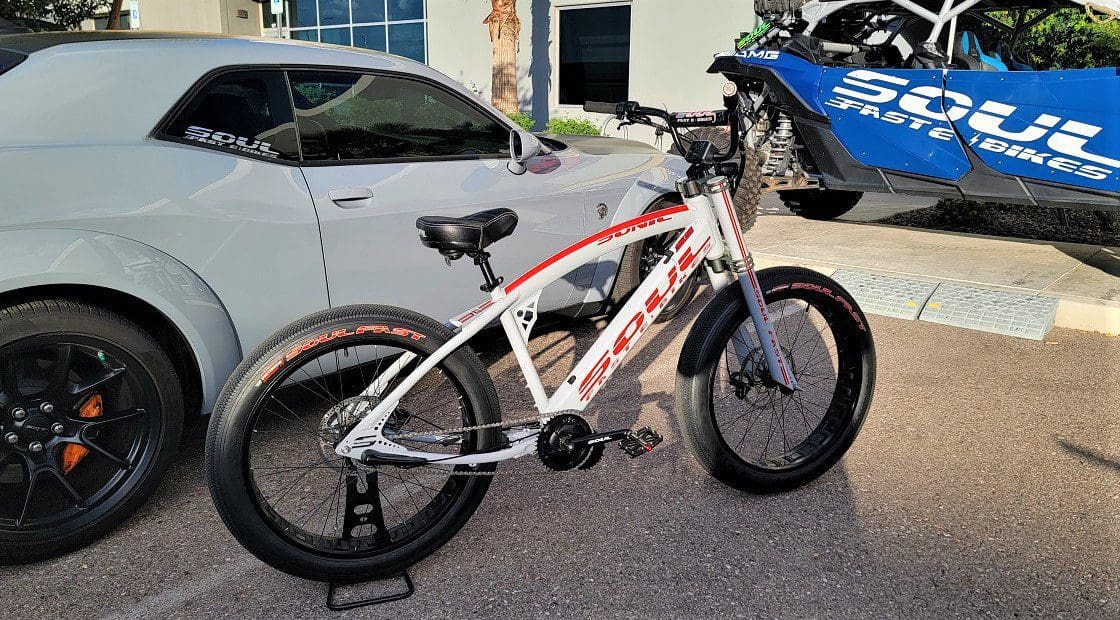

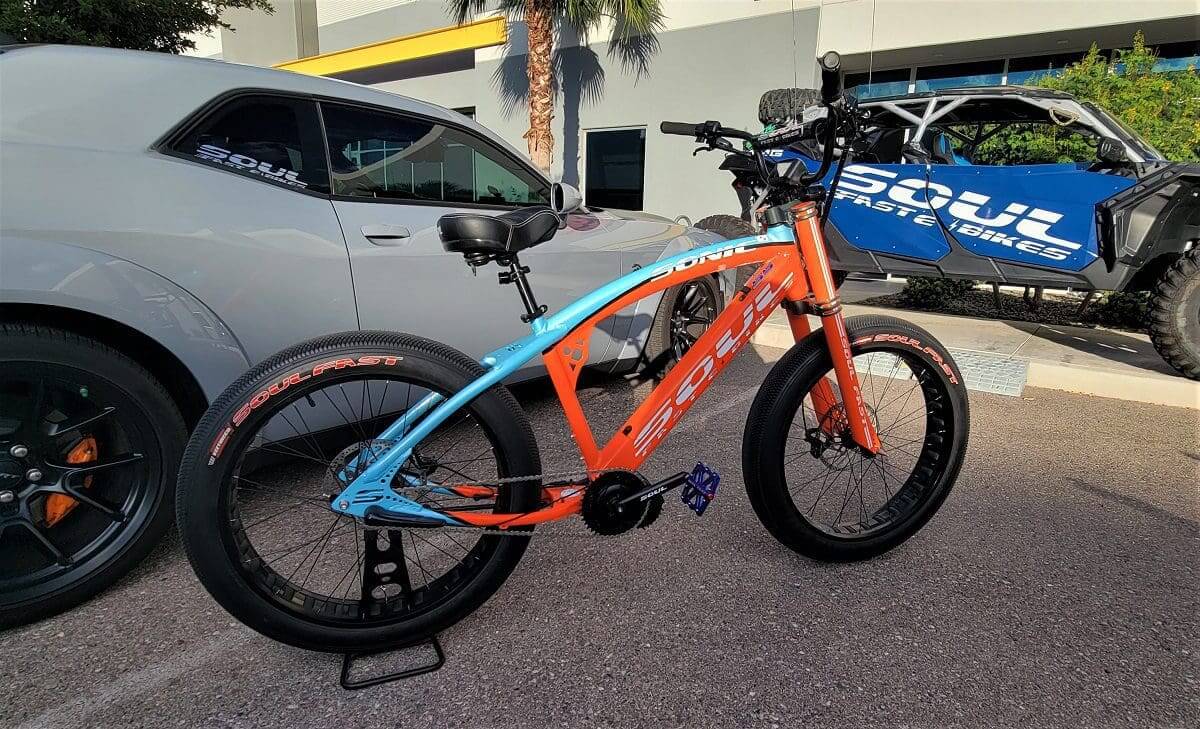

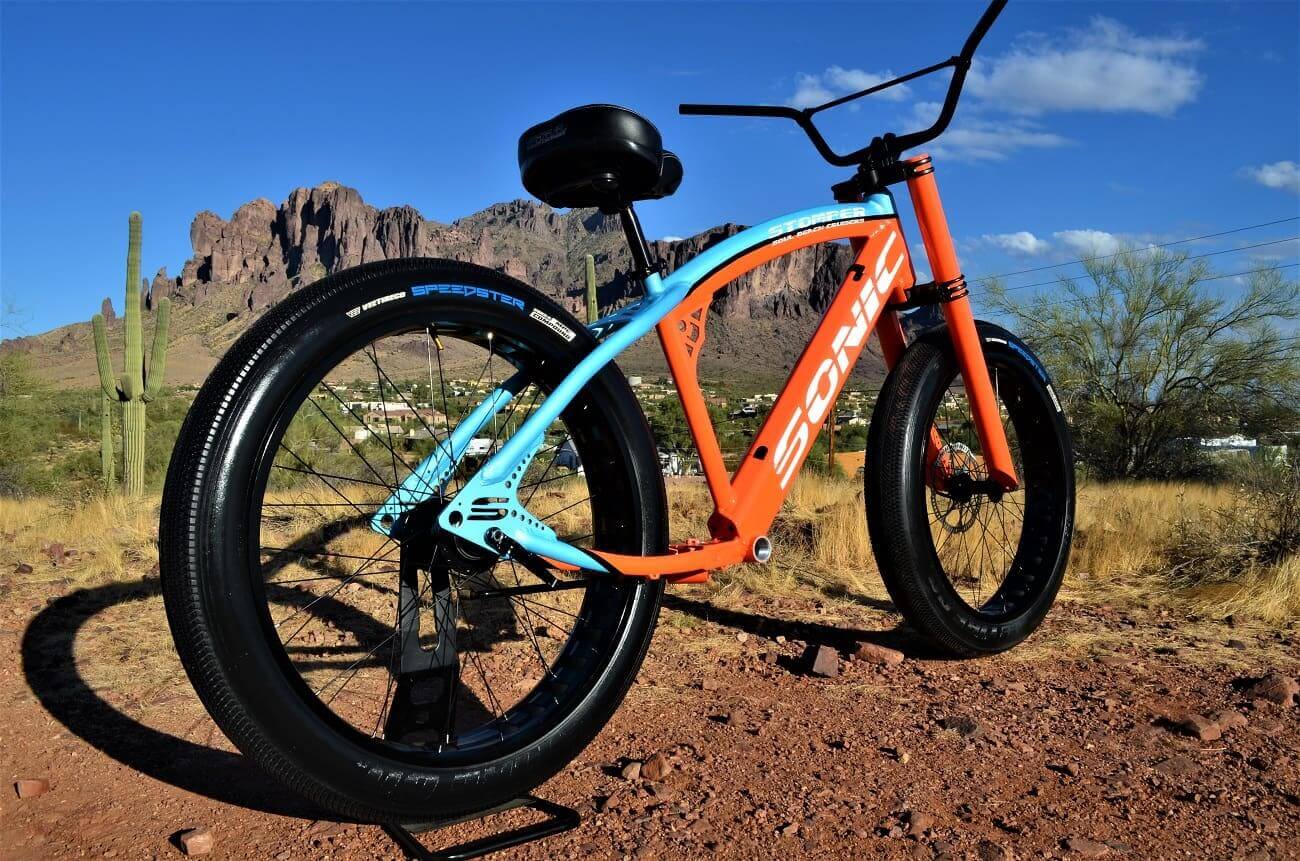

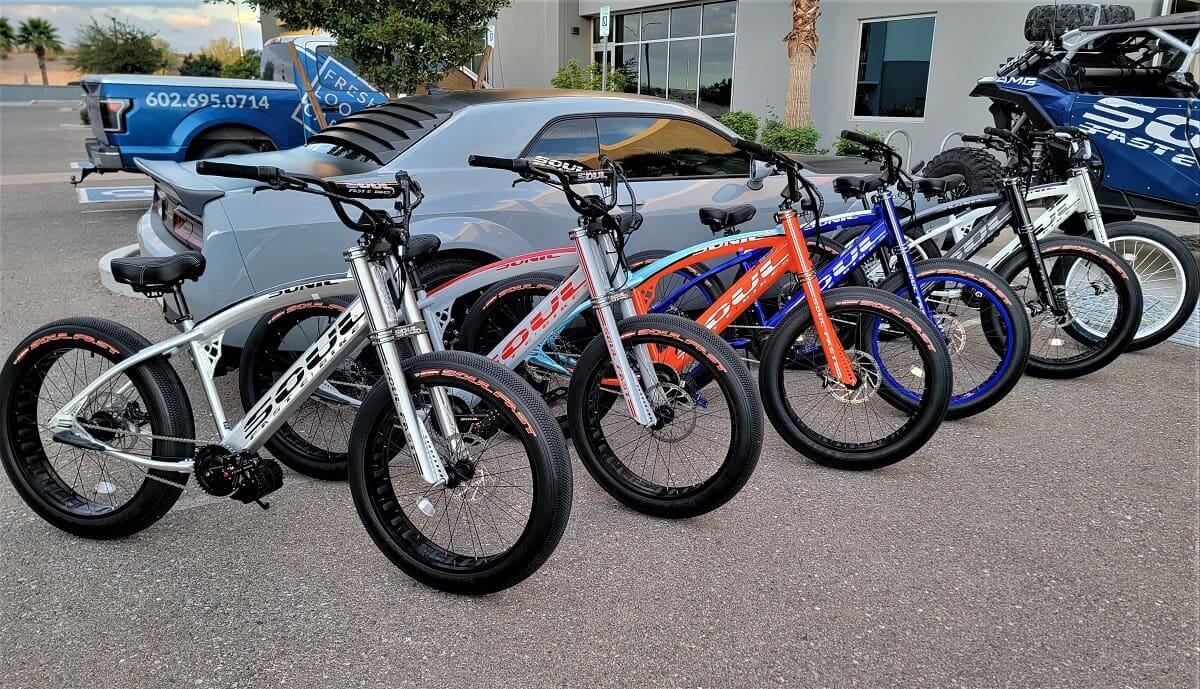

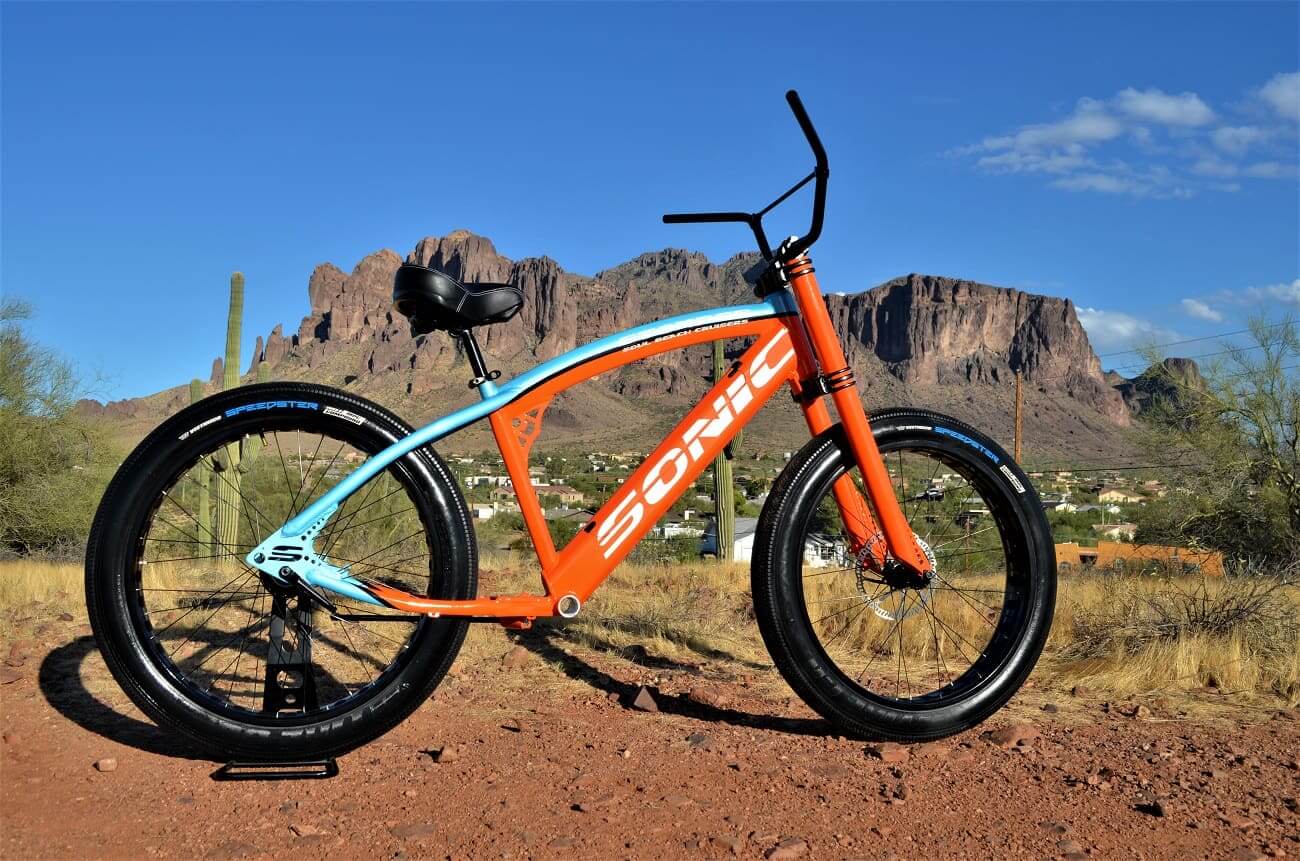

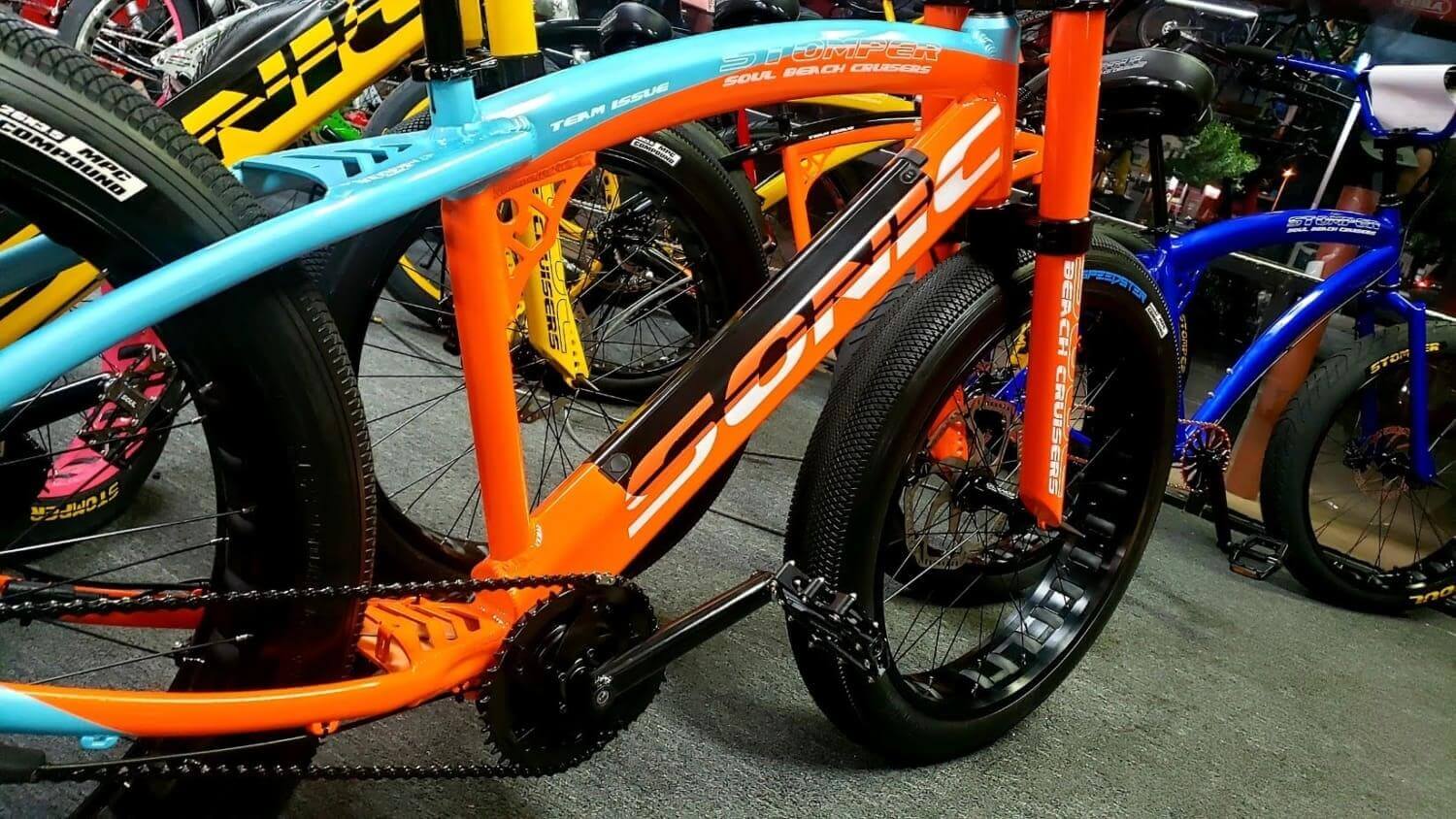

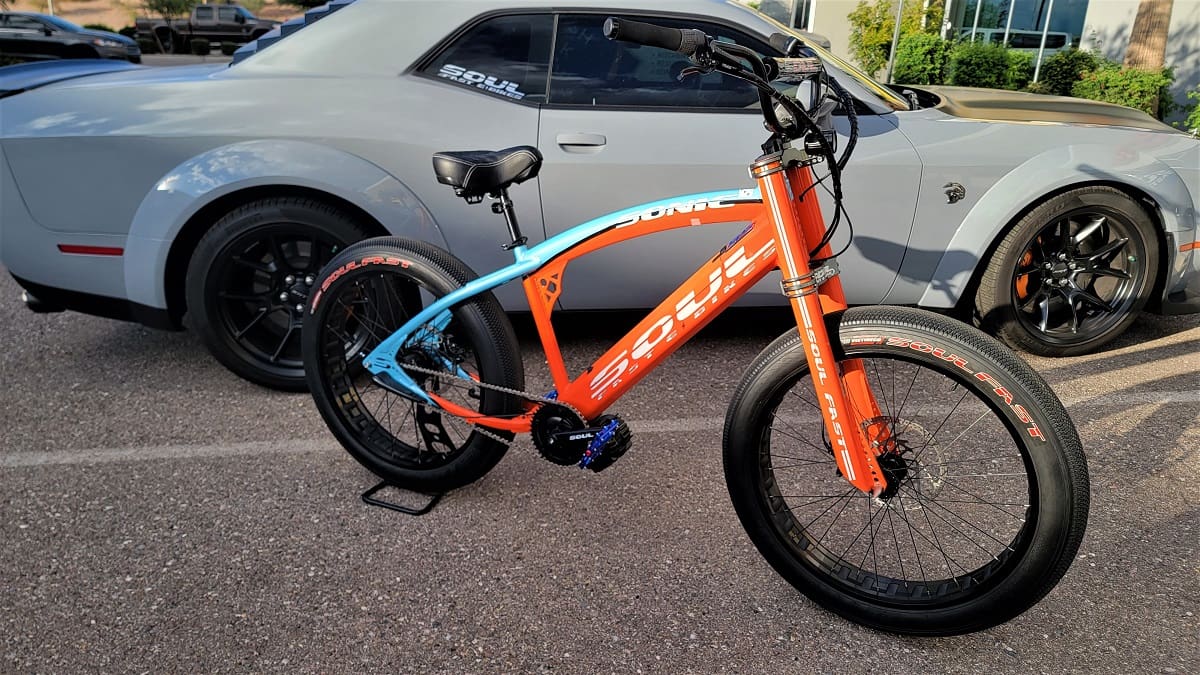

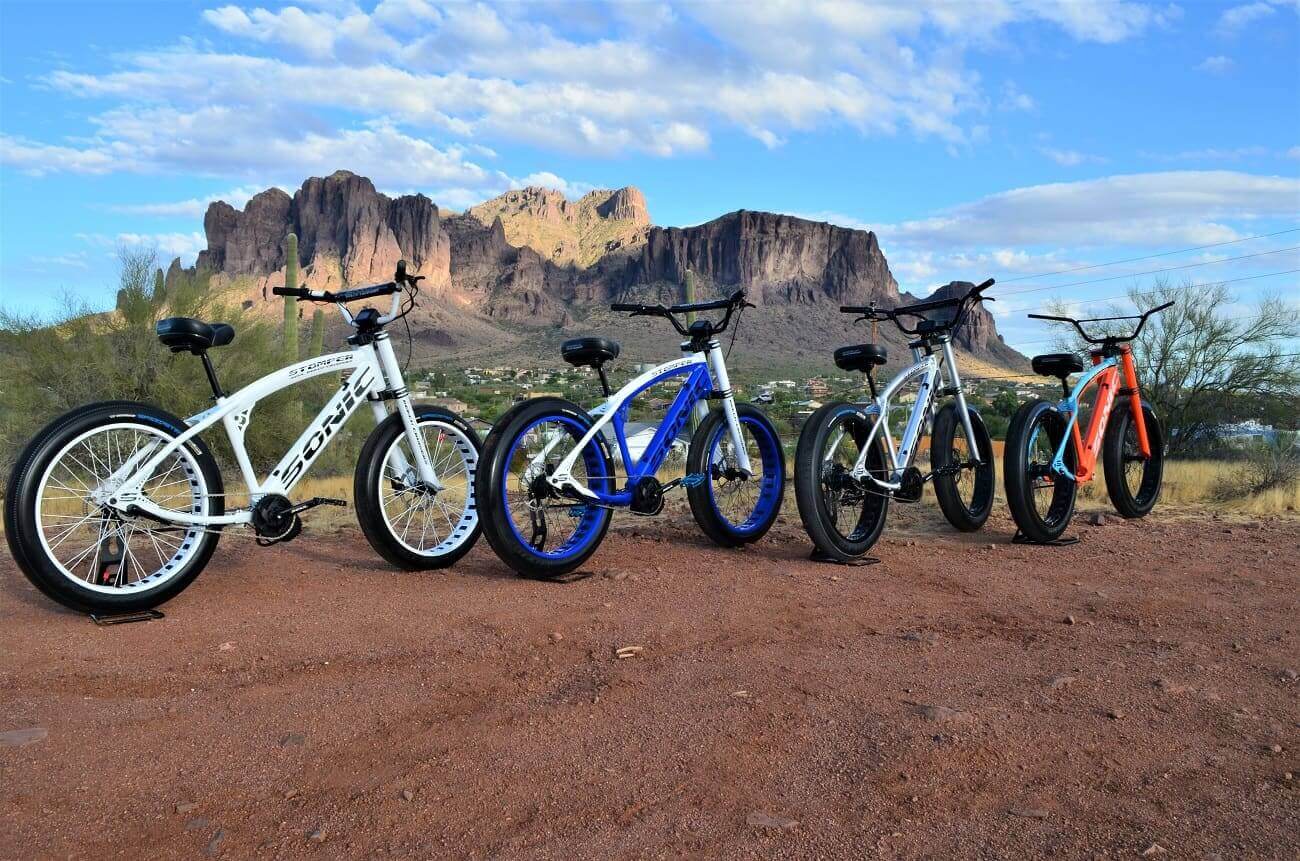

SS F1 52V RACE EDITION – PURE RACE TRACK FLASH

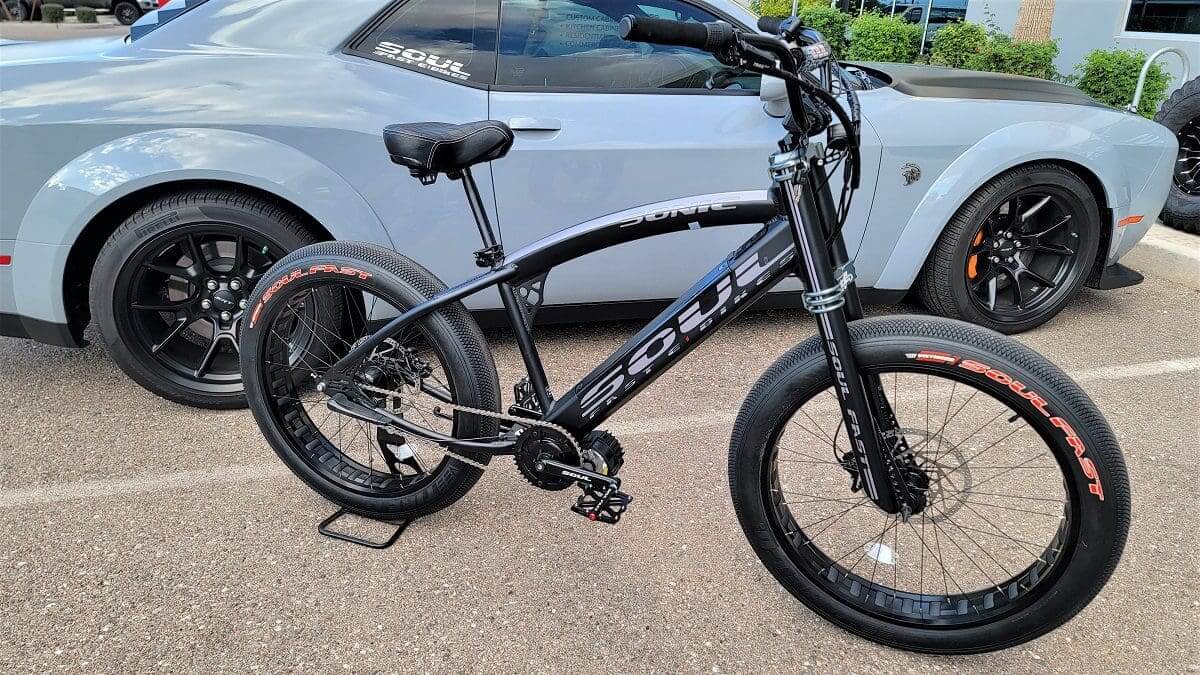

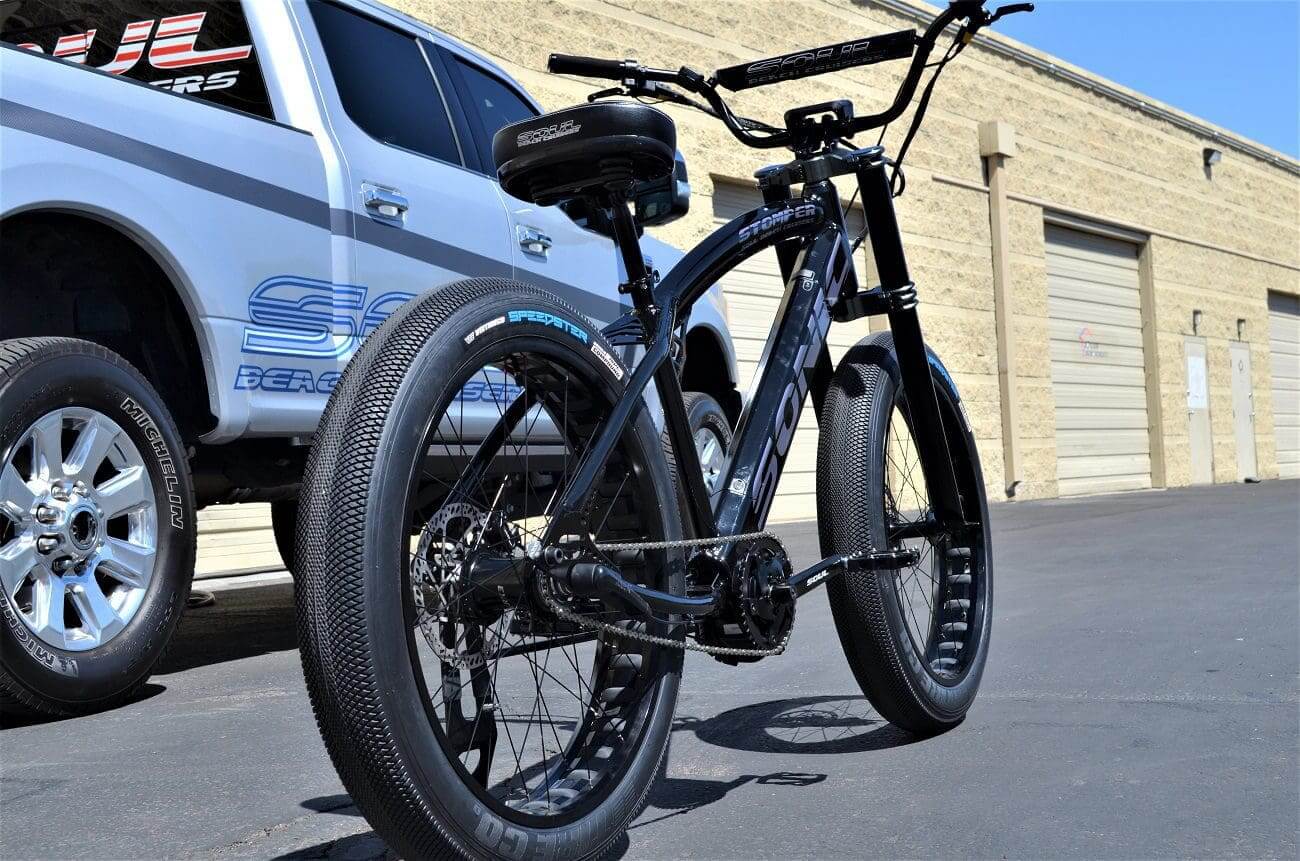

SS F1 52V SATIN BLACK – STEALTH MODE

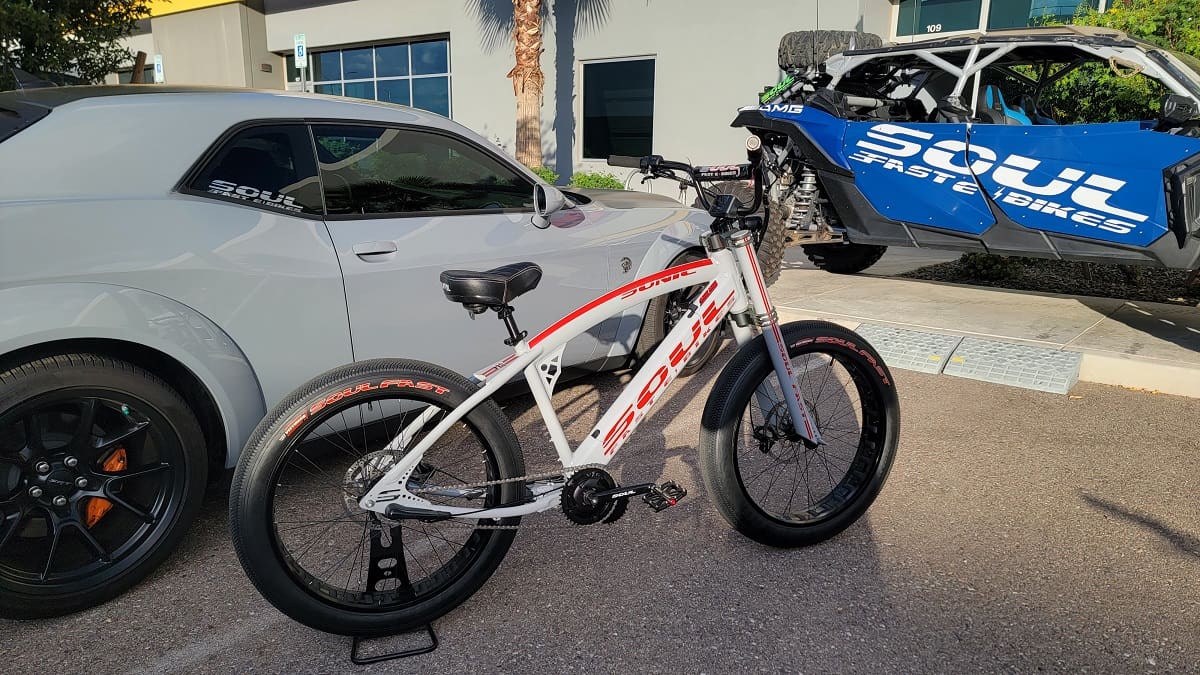

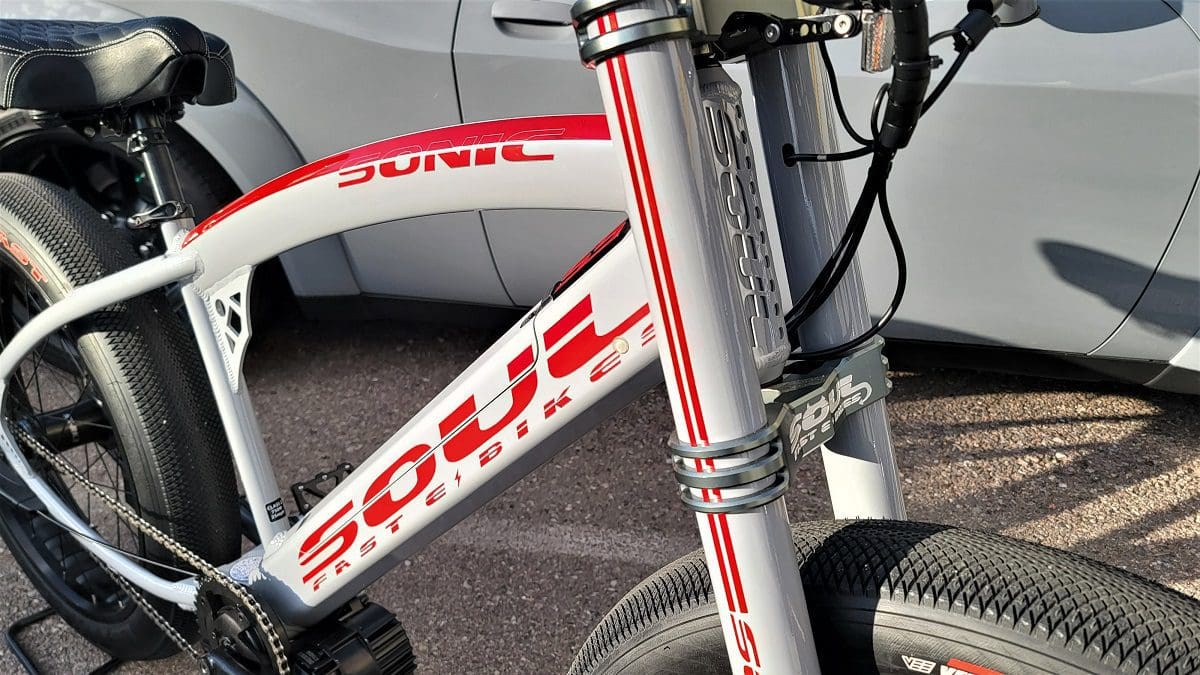

SS F1 52V SHARK GREY – RED SS RACING STRIPE

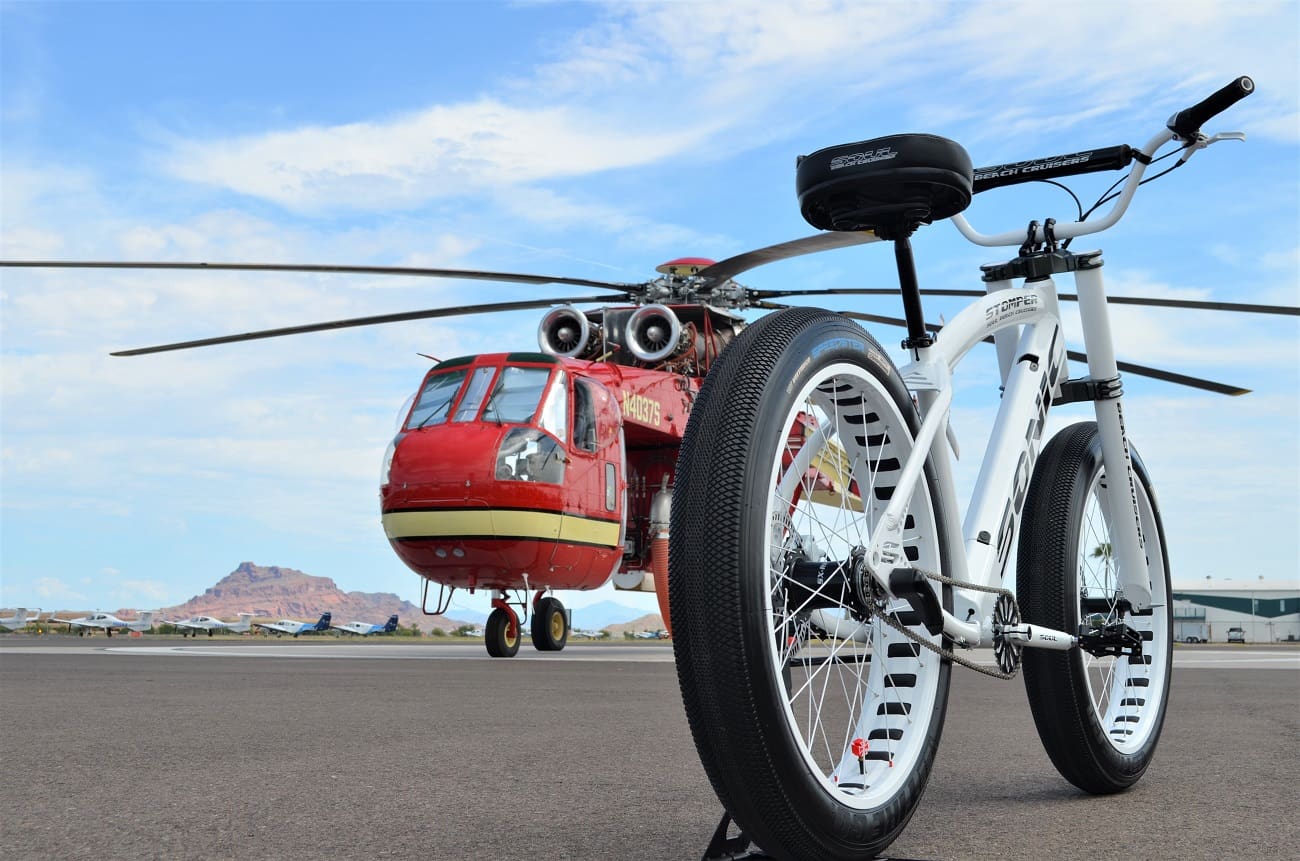

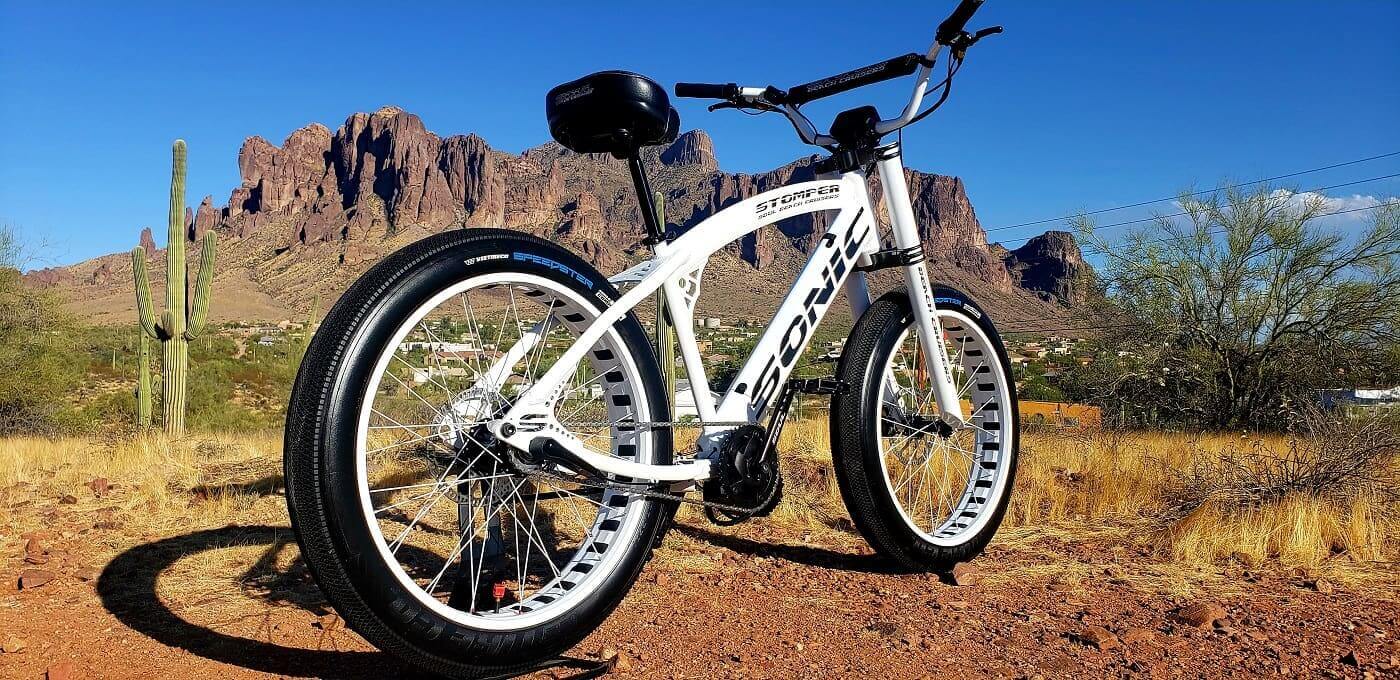

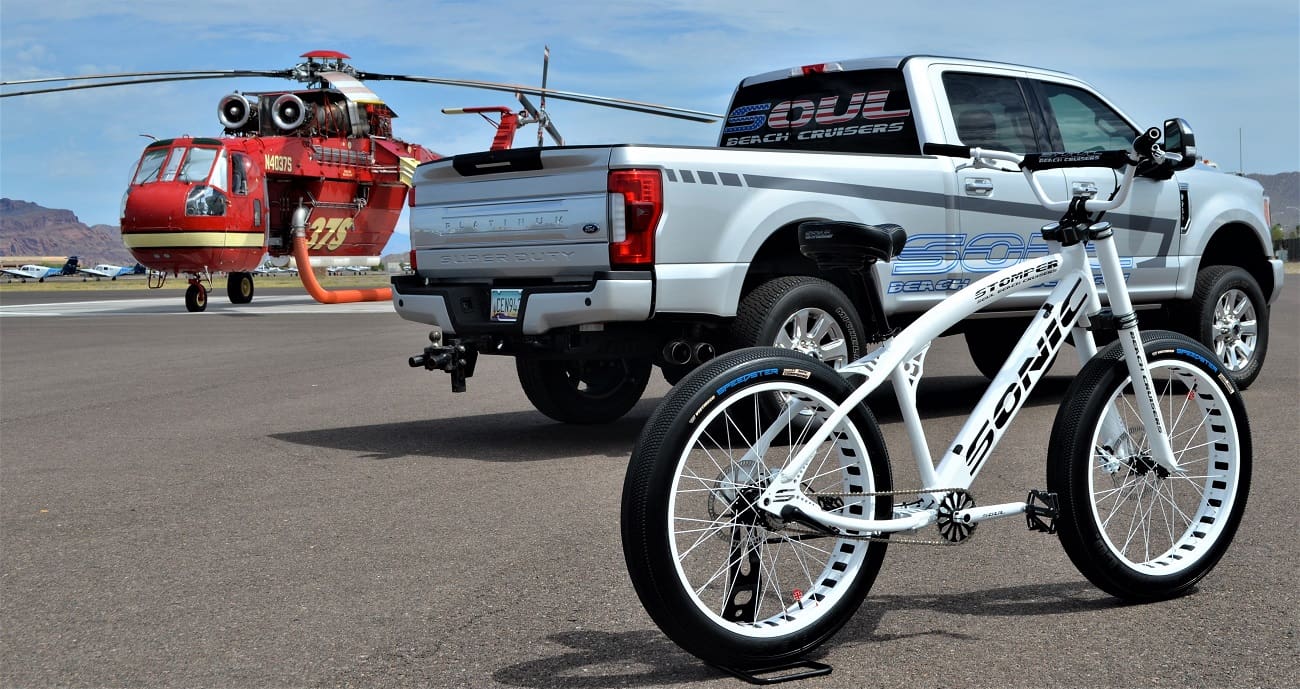

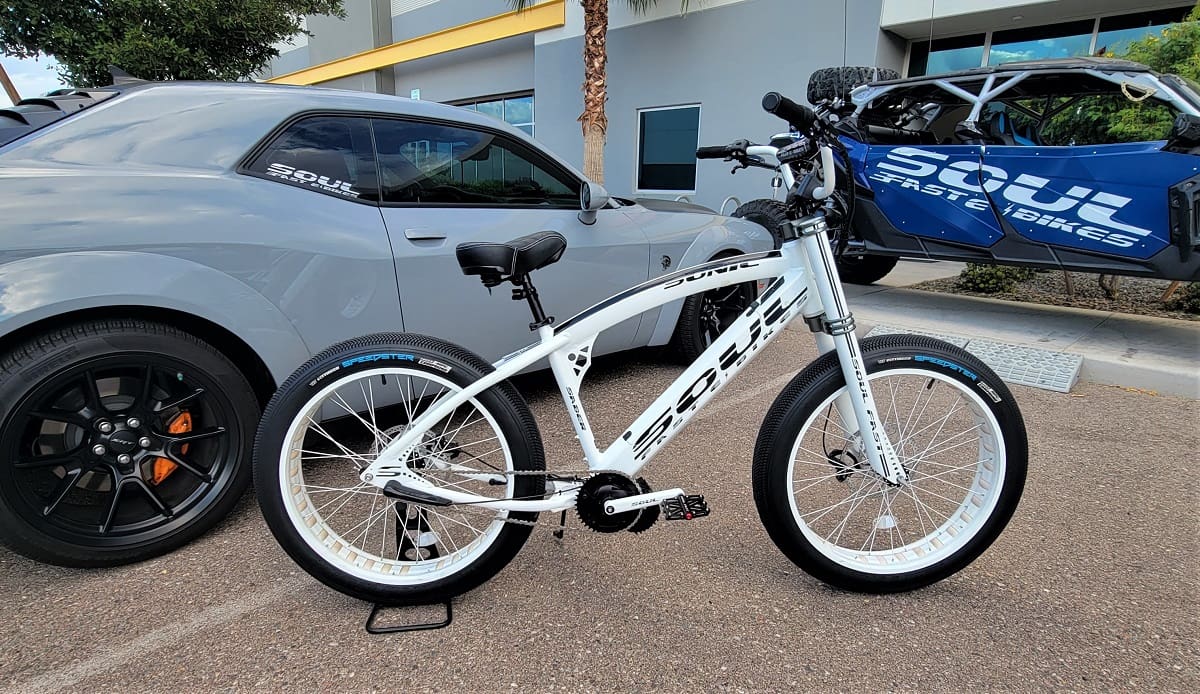

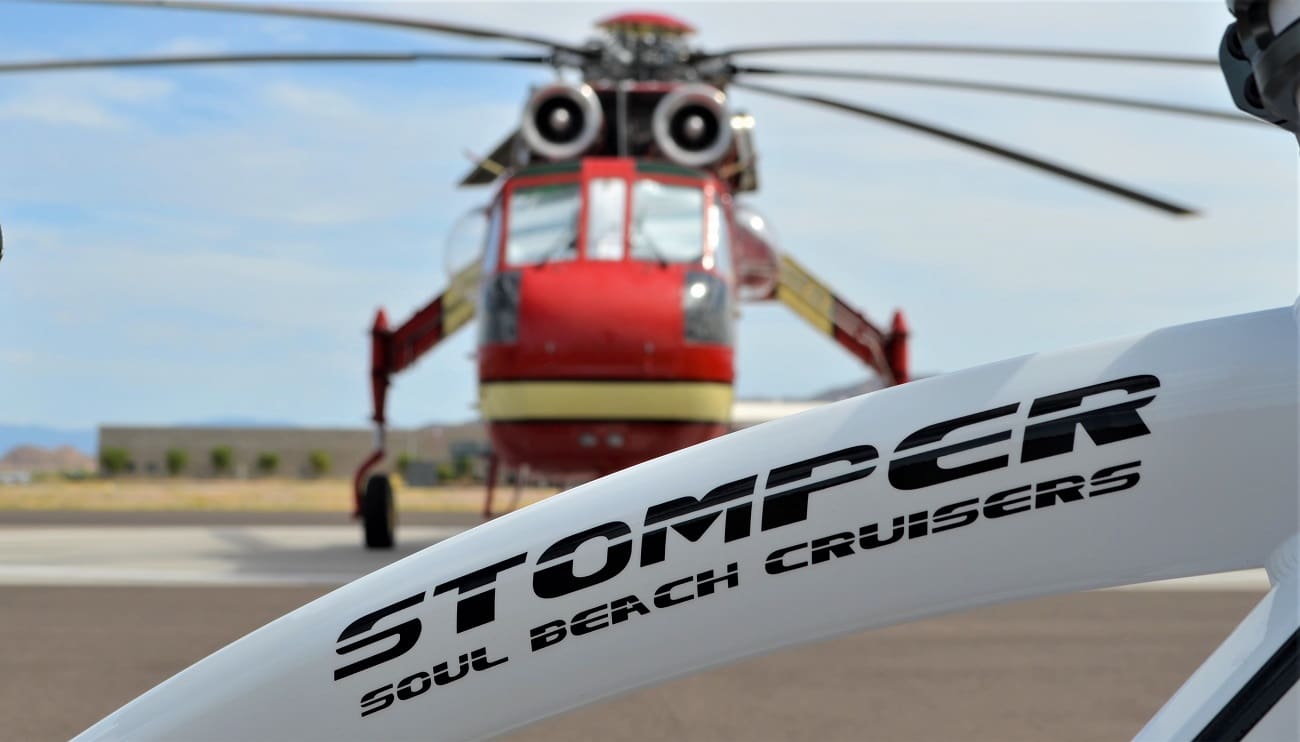

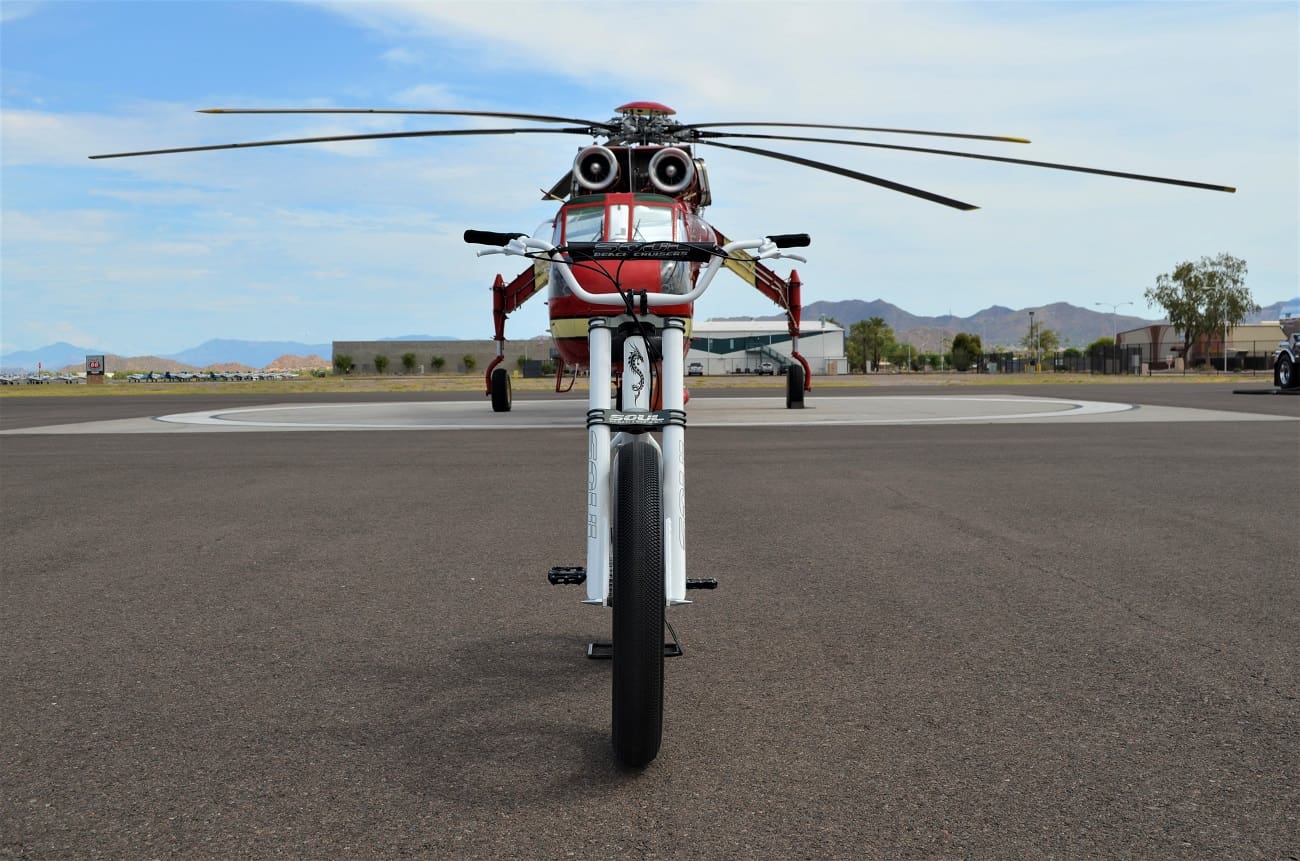

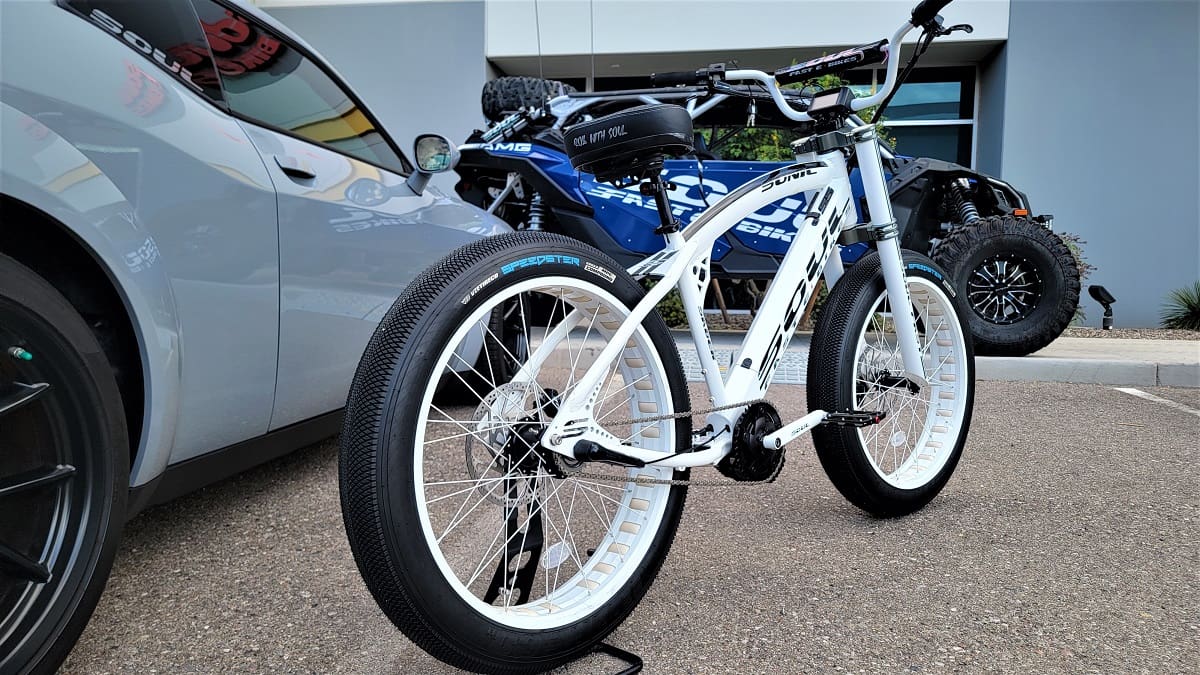

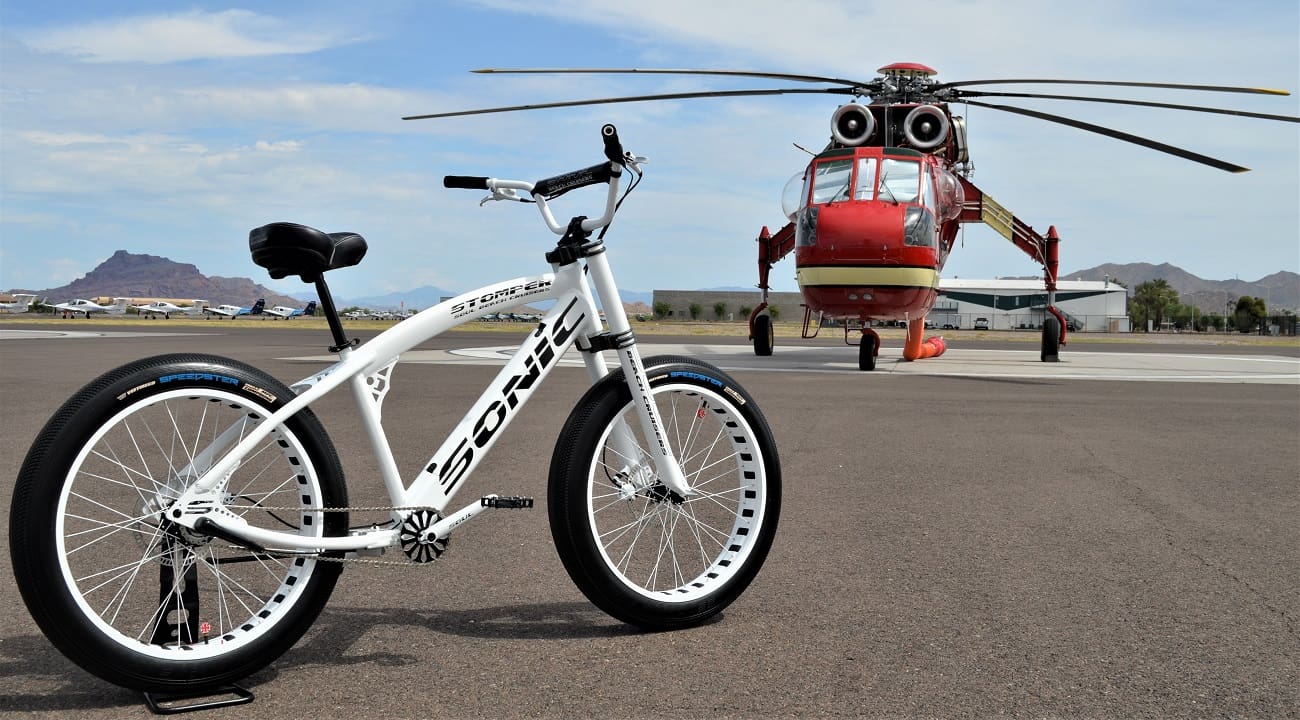

SS F1 52V STORM TROOPER – MIAMI STYLING

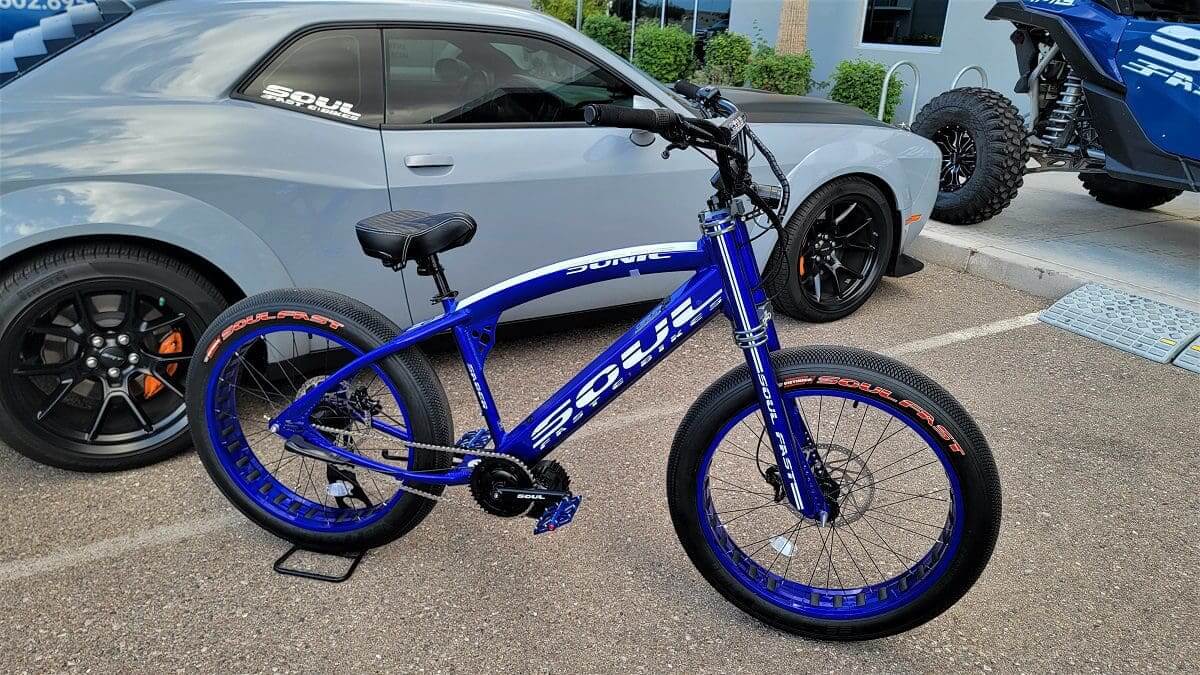

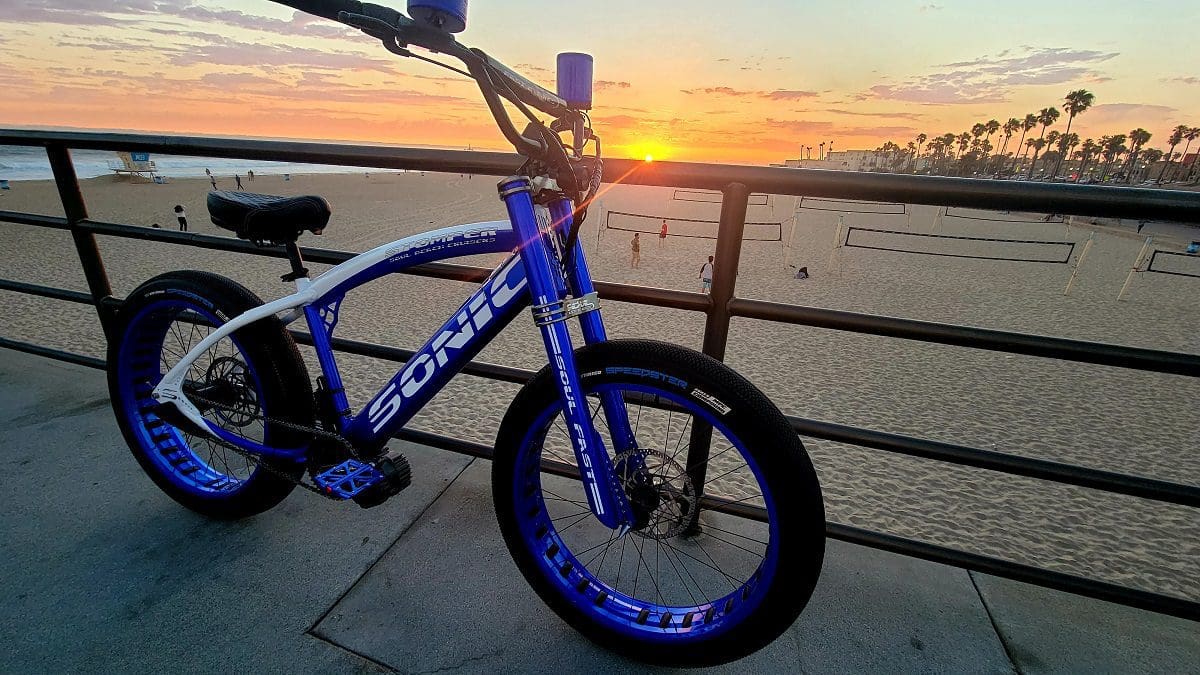

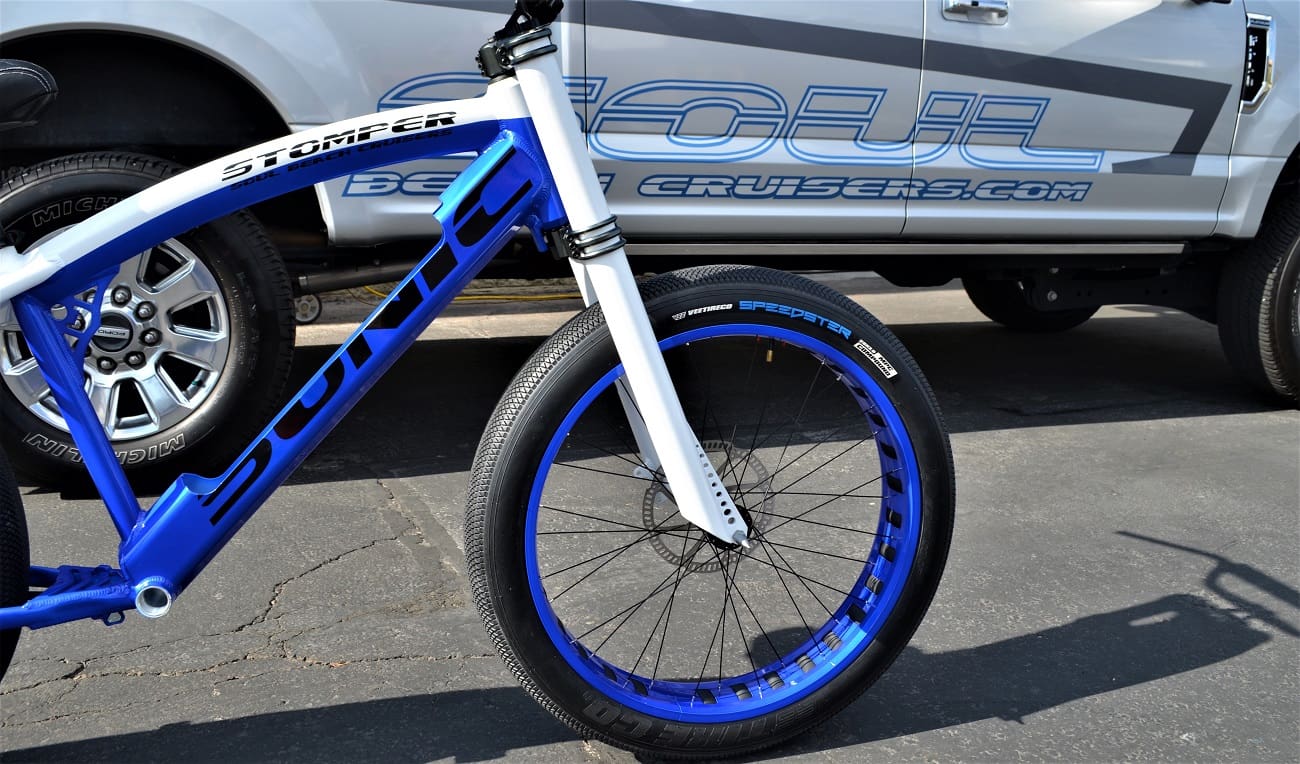

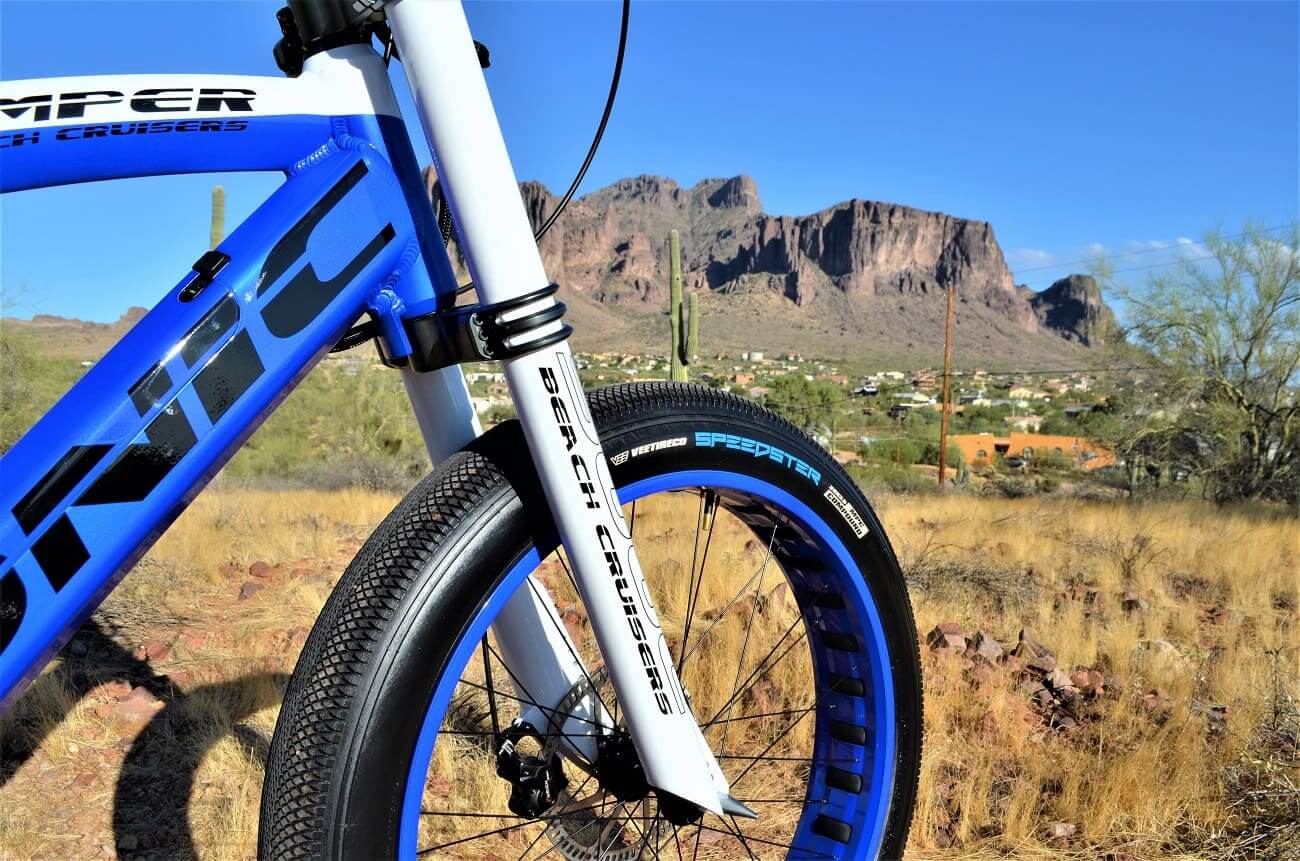

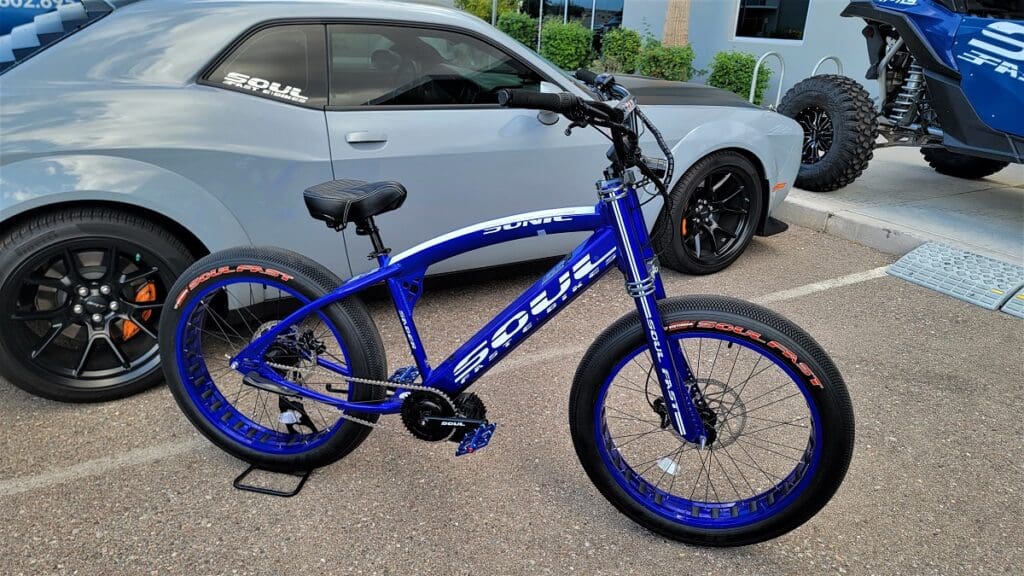

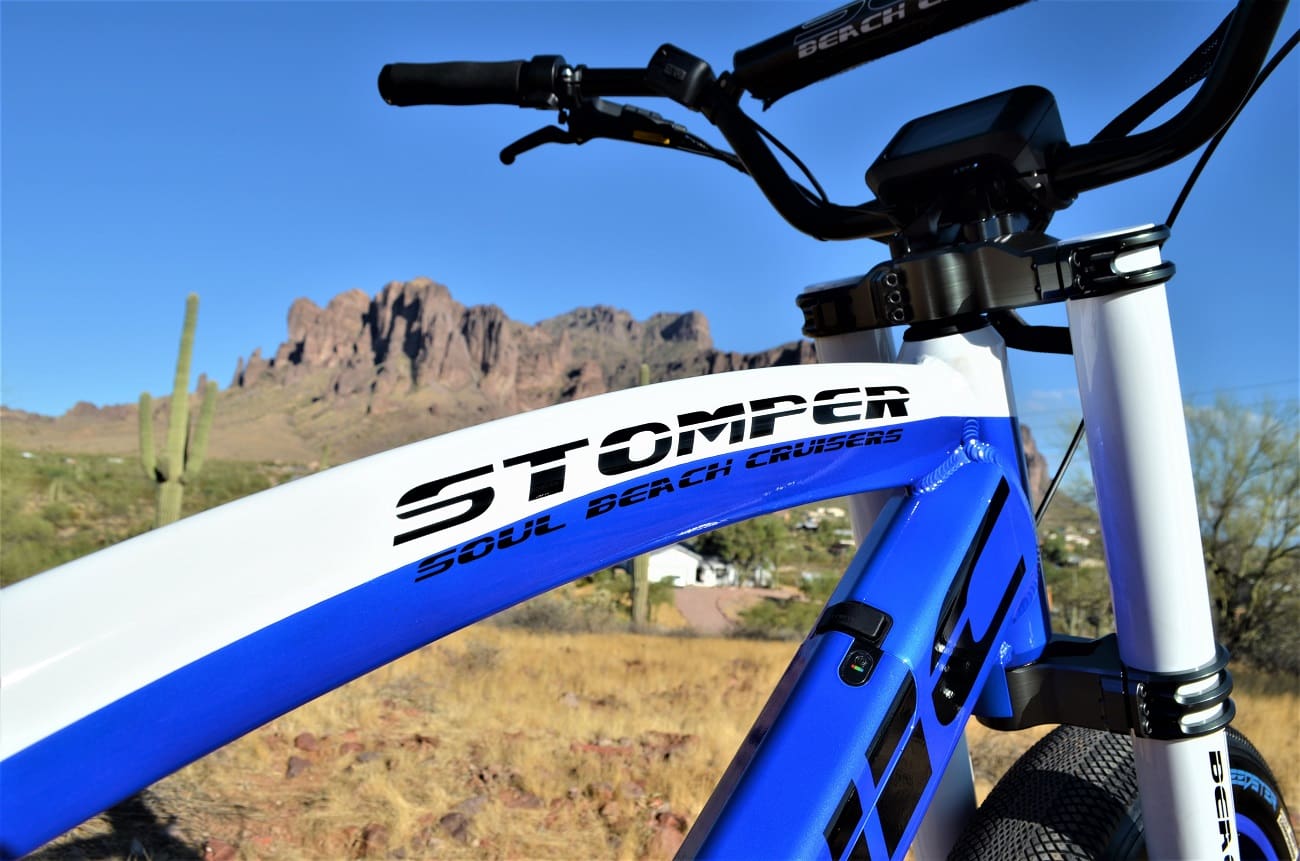

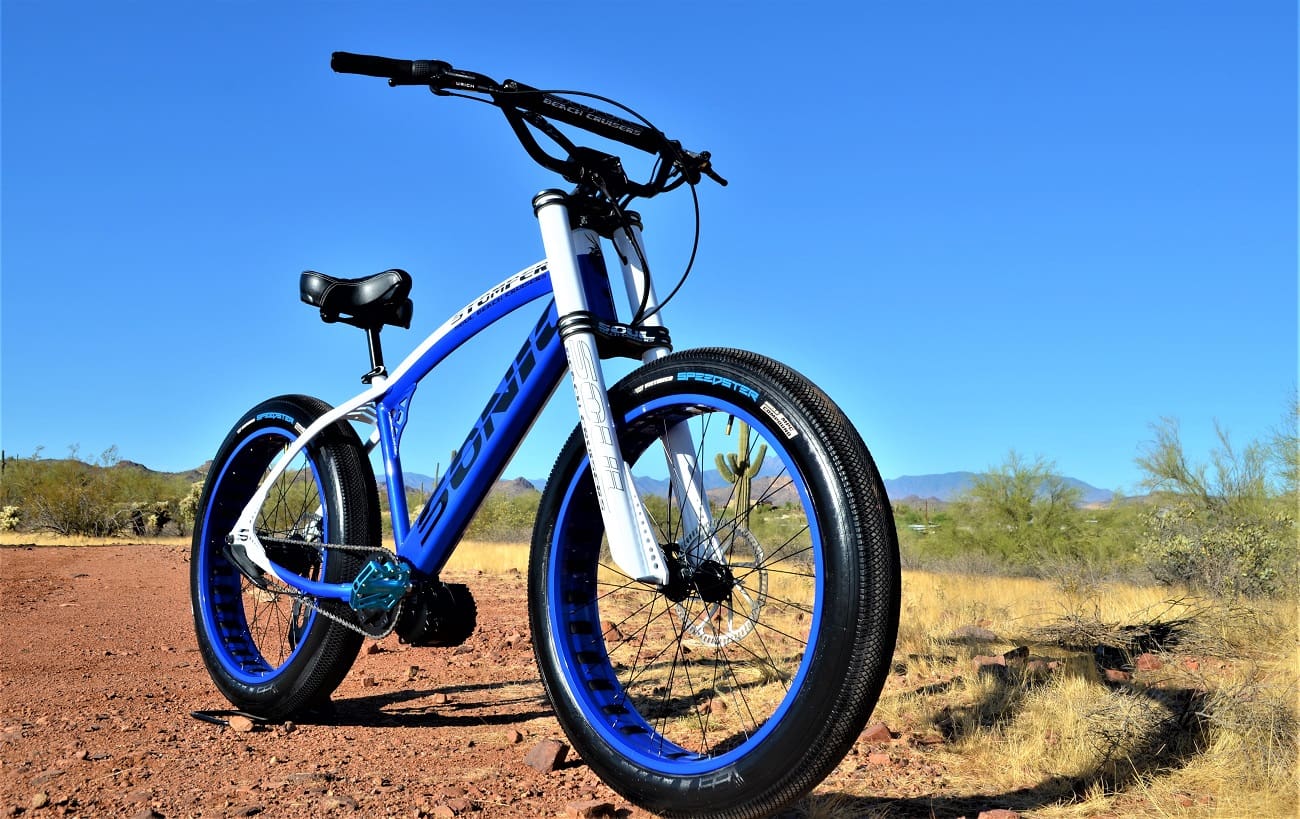

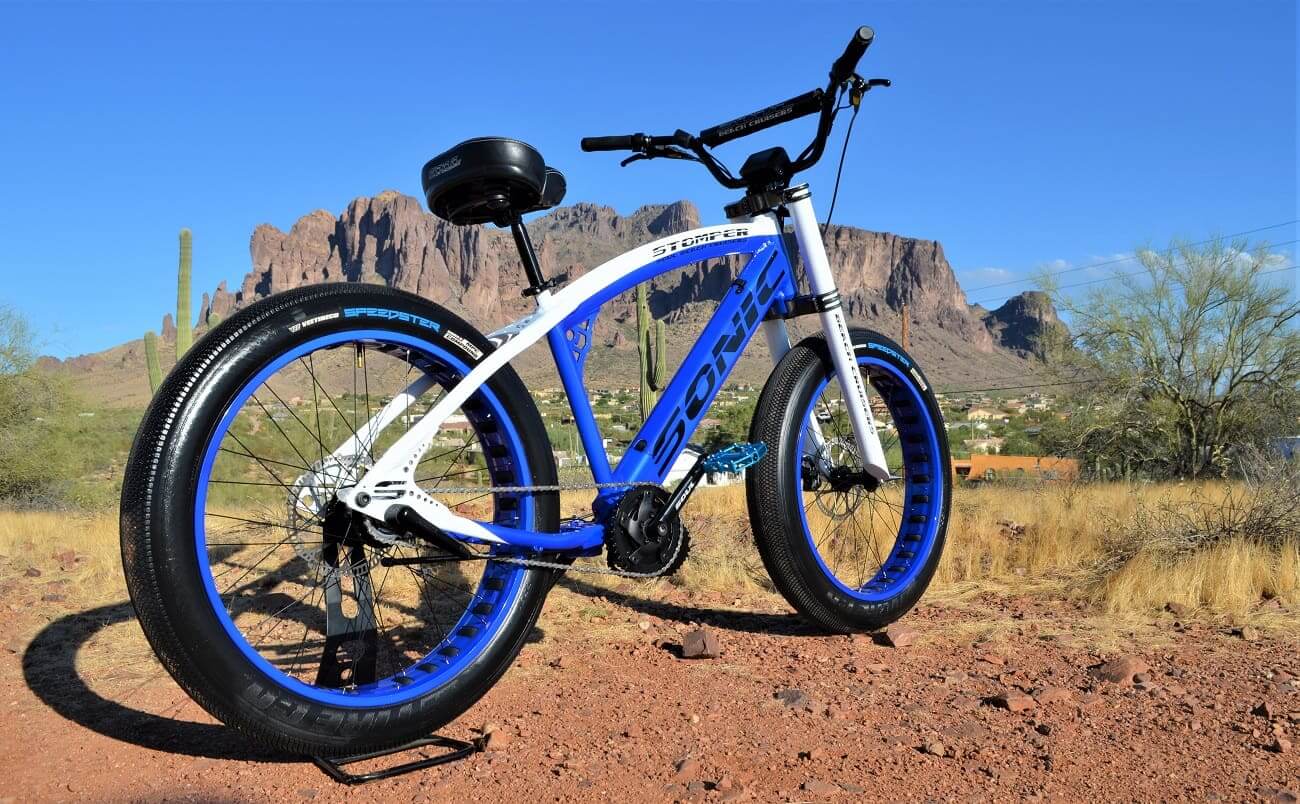

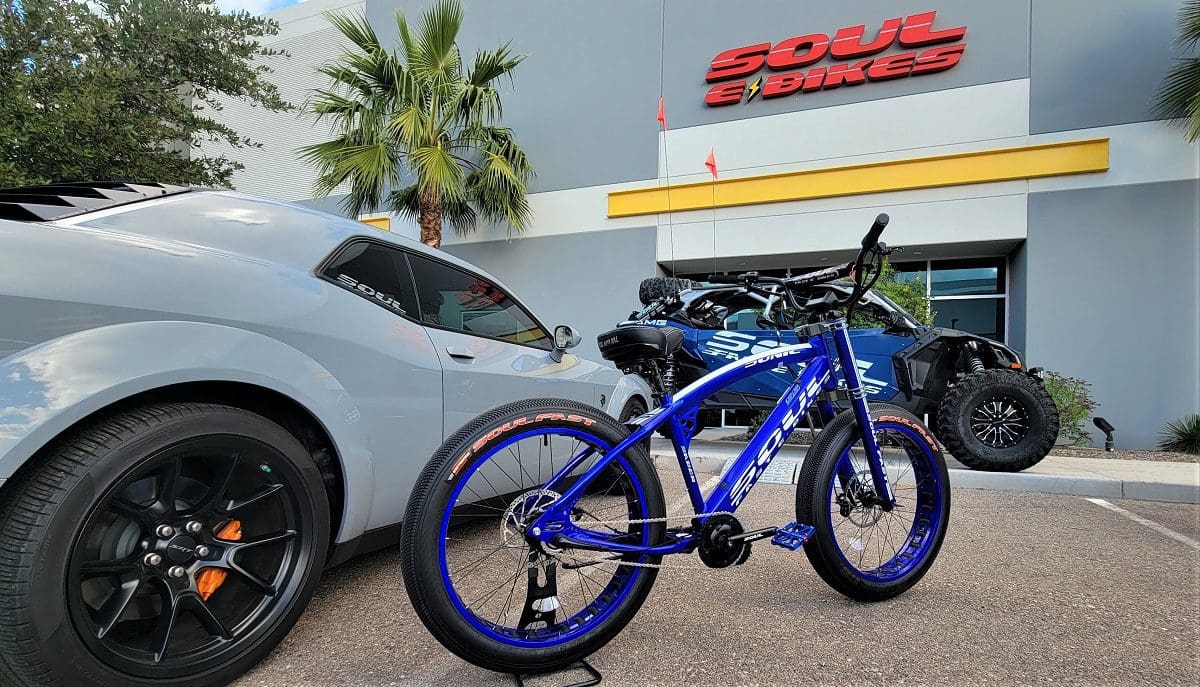

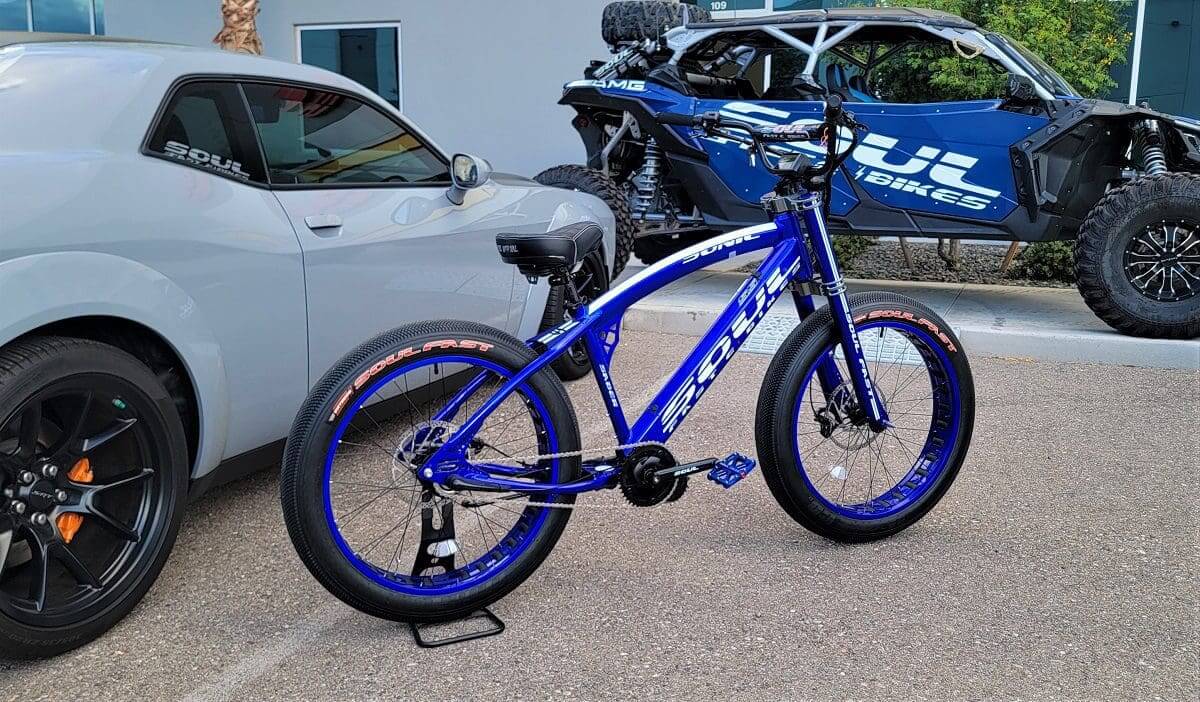

SS F1 52V BLUE – 2023 WILL HAVE BLUE FRAME & FORKS

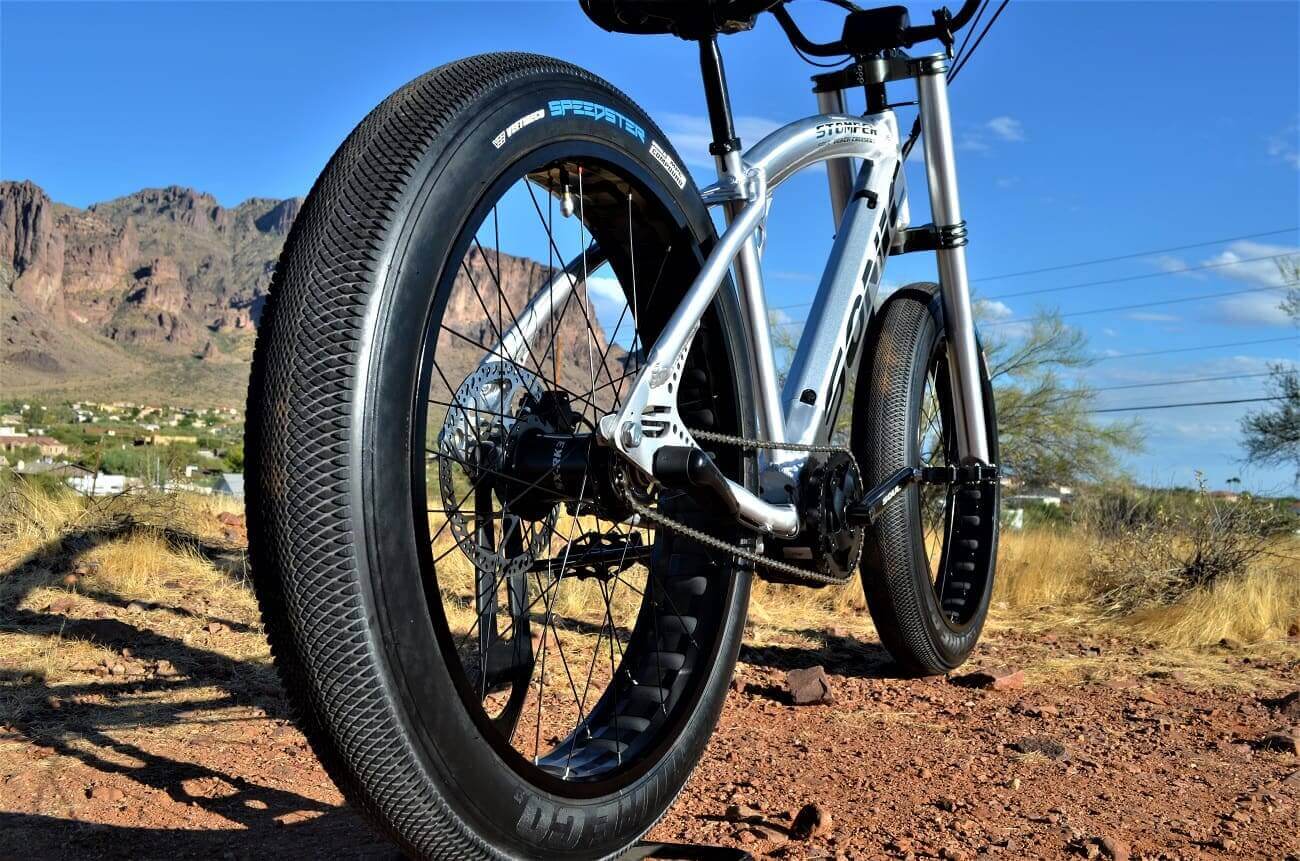

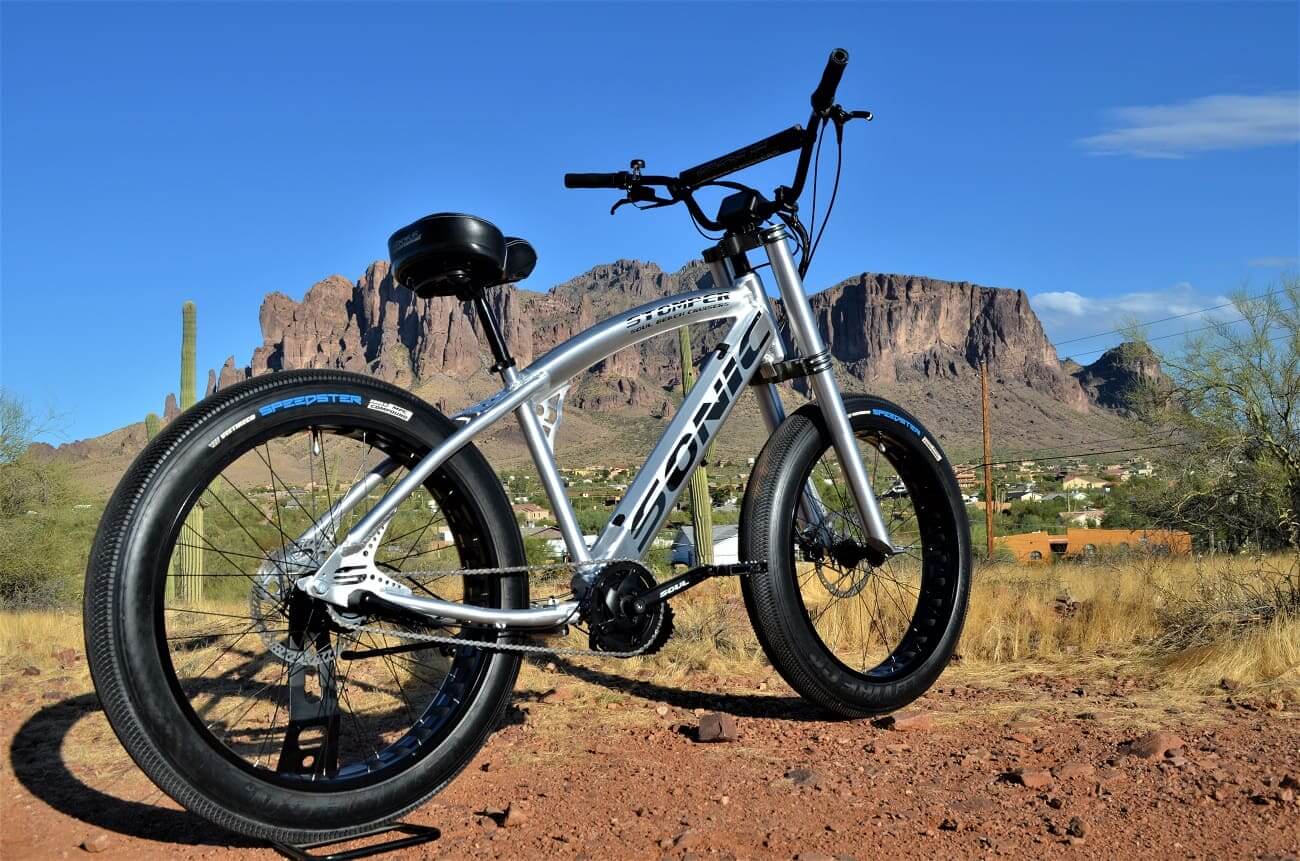

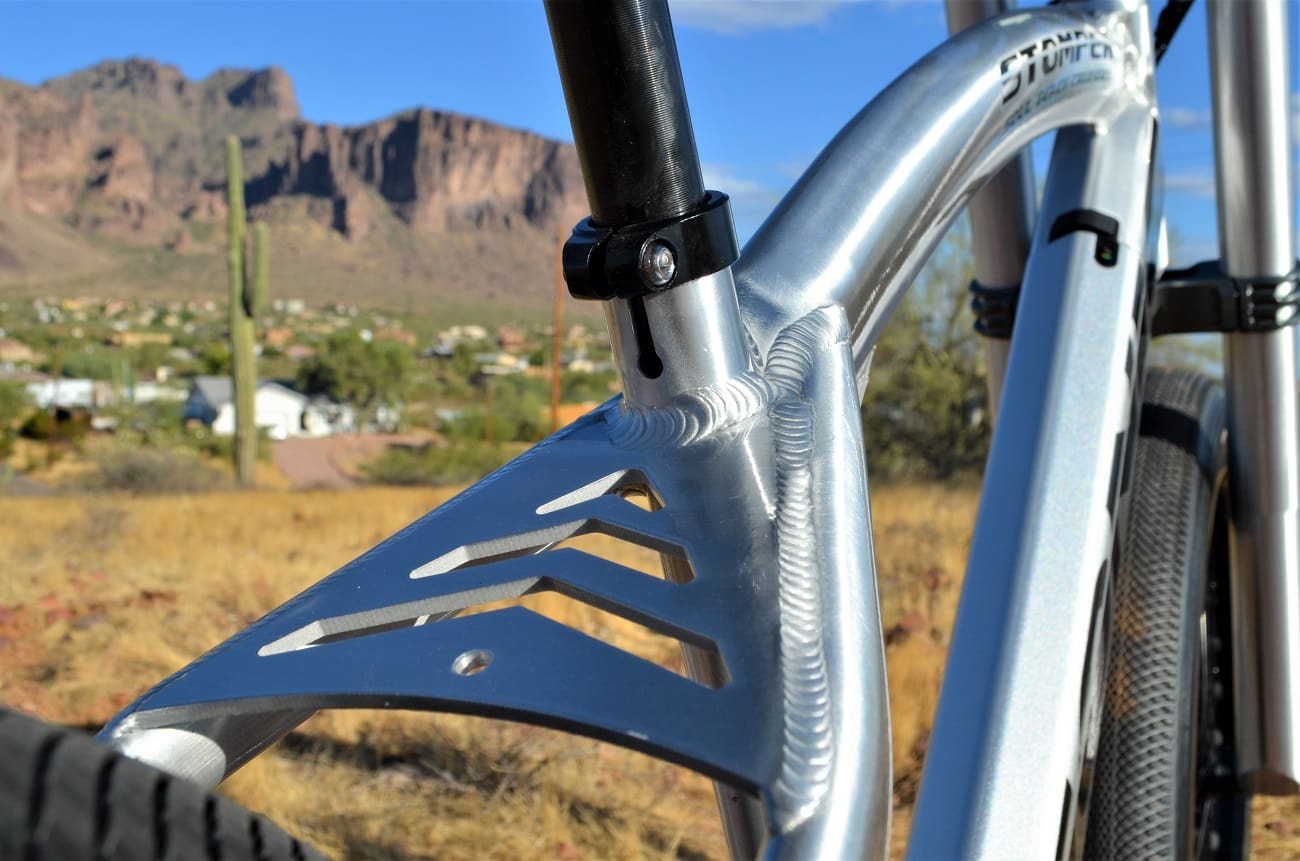

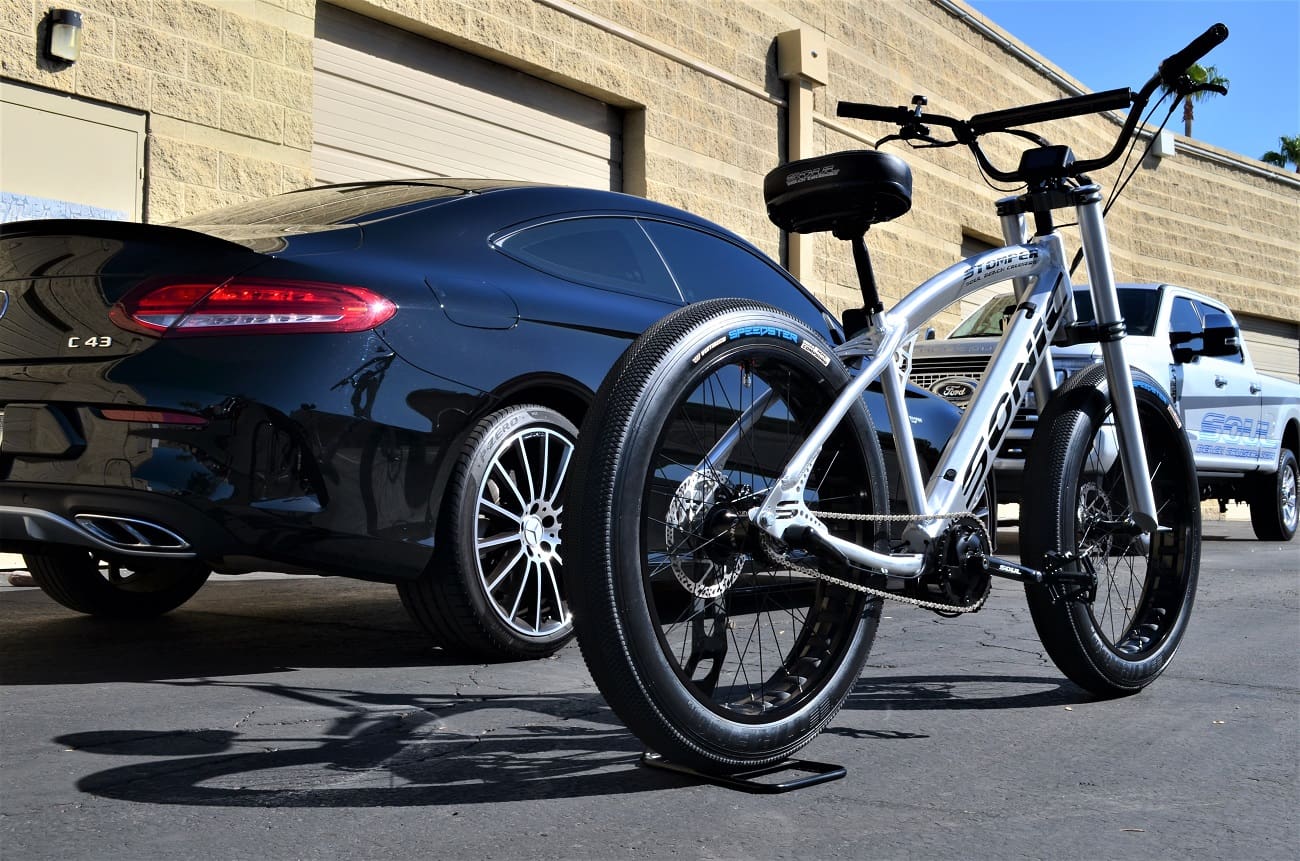

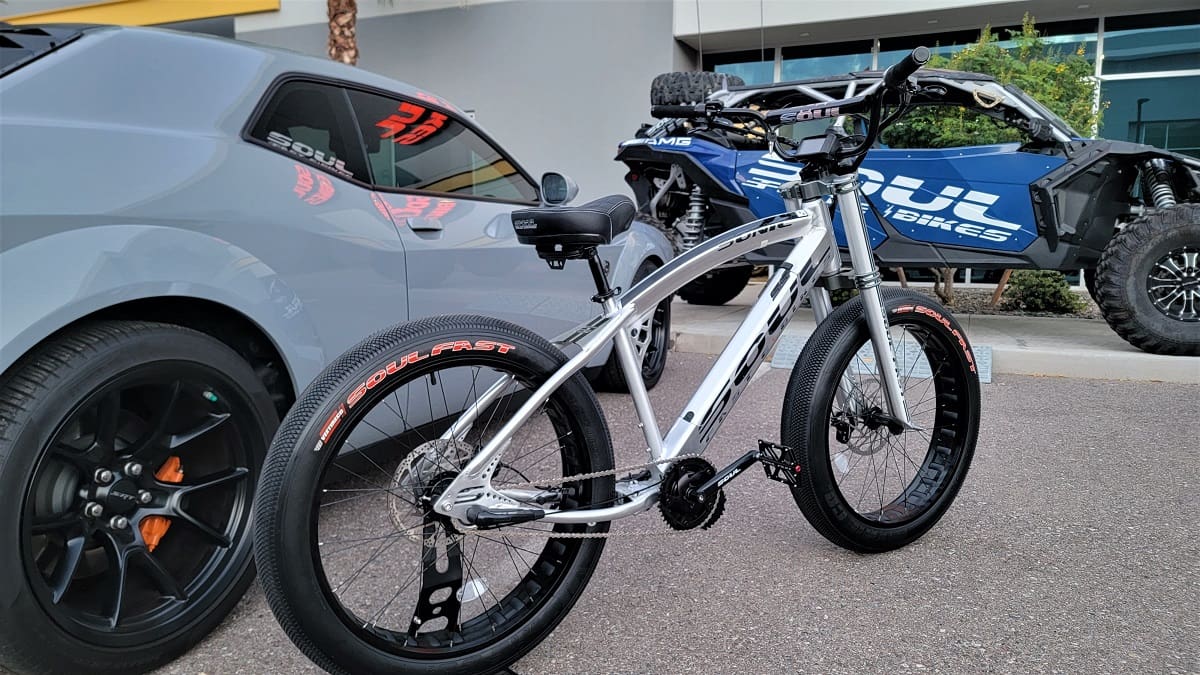

SS F1 SONIC BRUSHED – INDUSTRIAL HOT ROD
ELECTRIC BIKE REVIEW ON OUR SONIC SS F1- CLICK TO PLAY

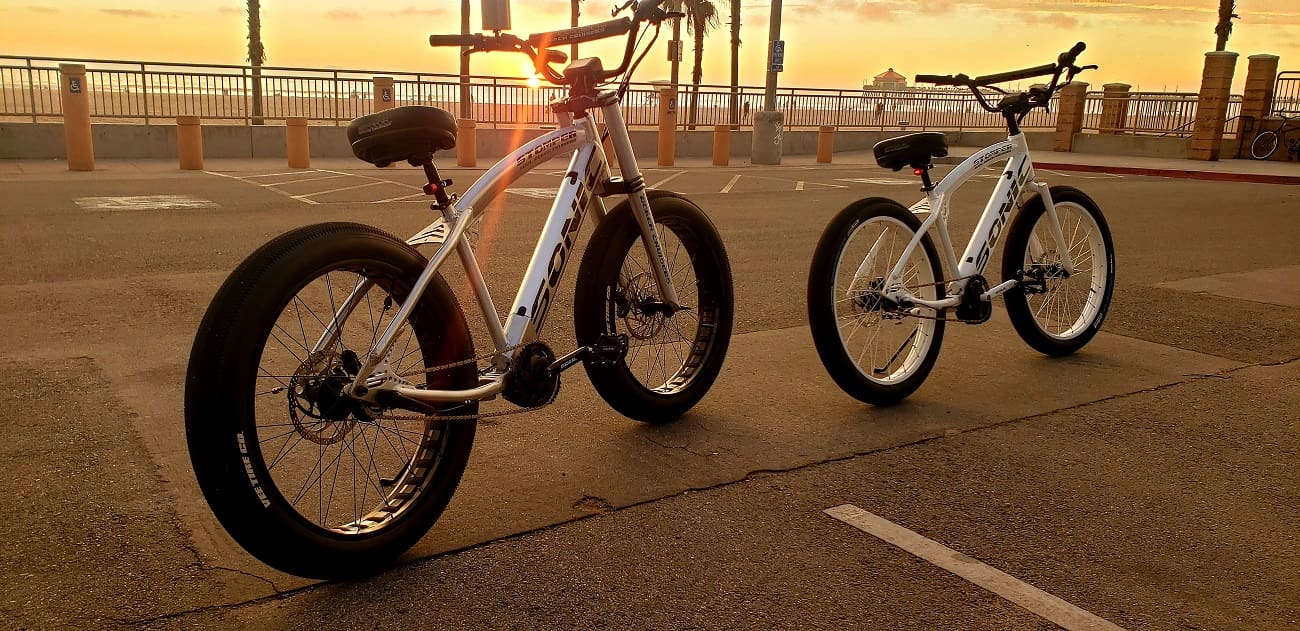

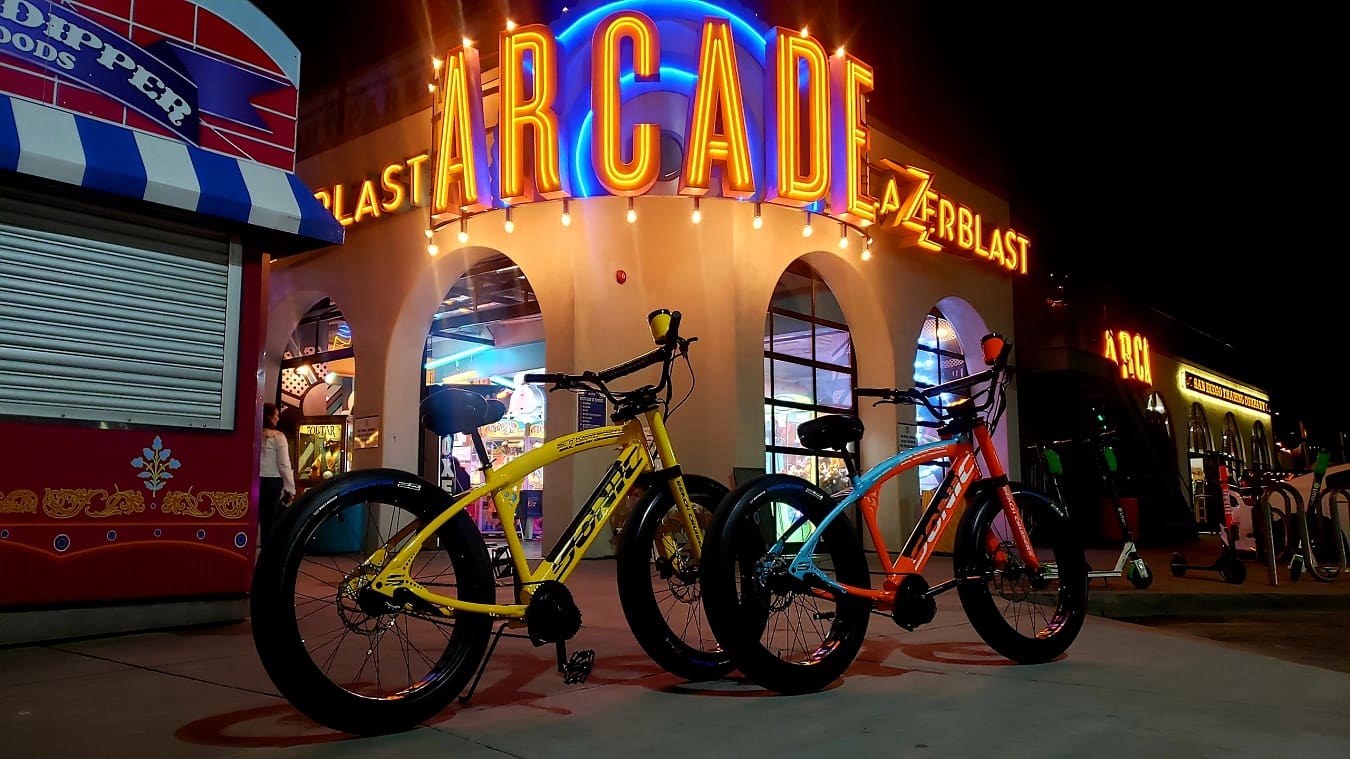

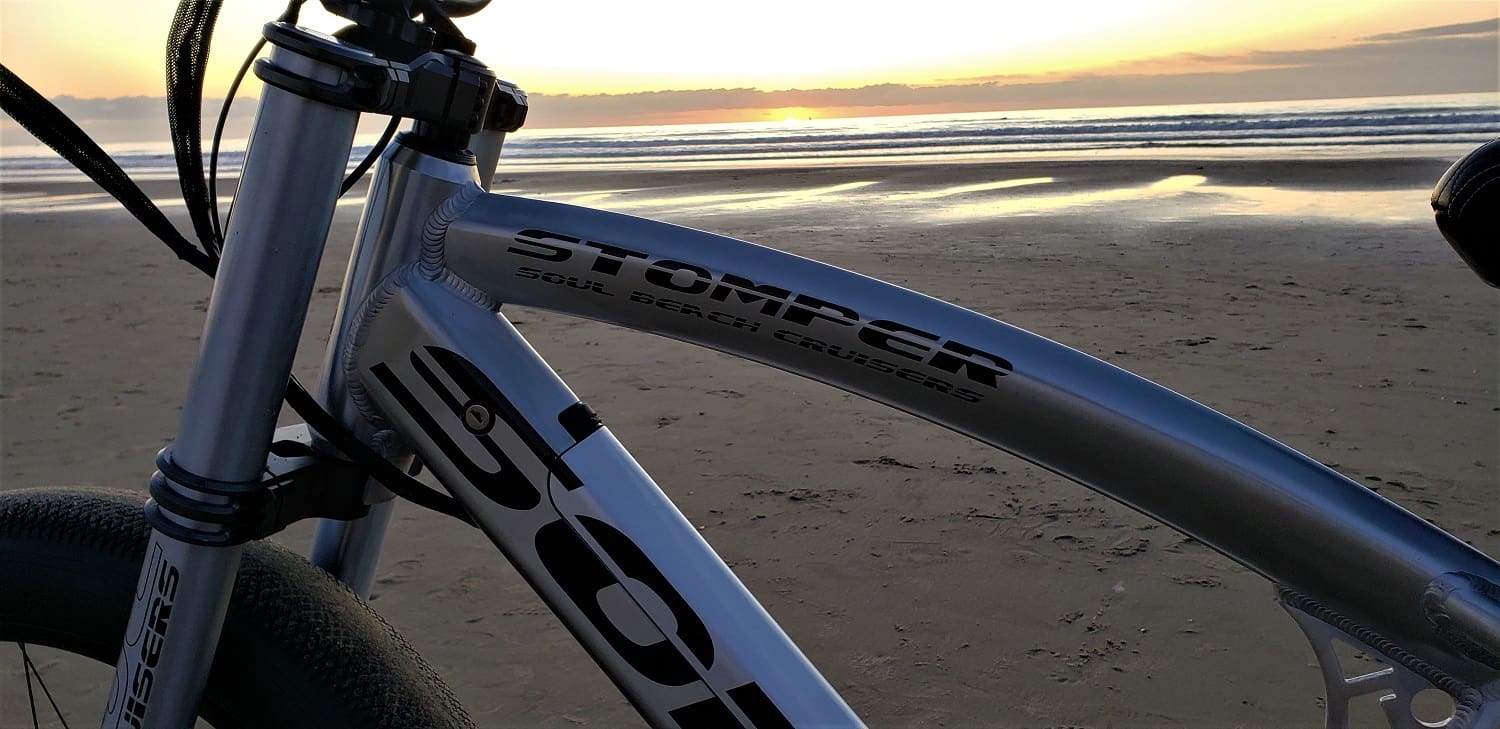

CRUISING SAN DIEGO BEACH

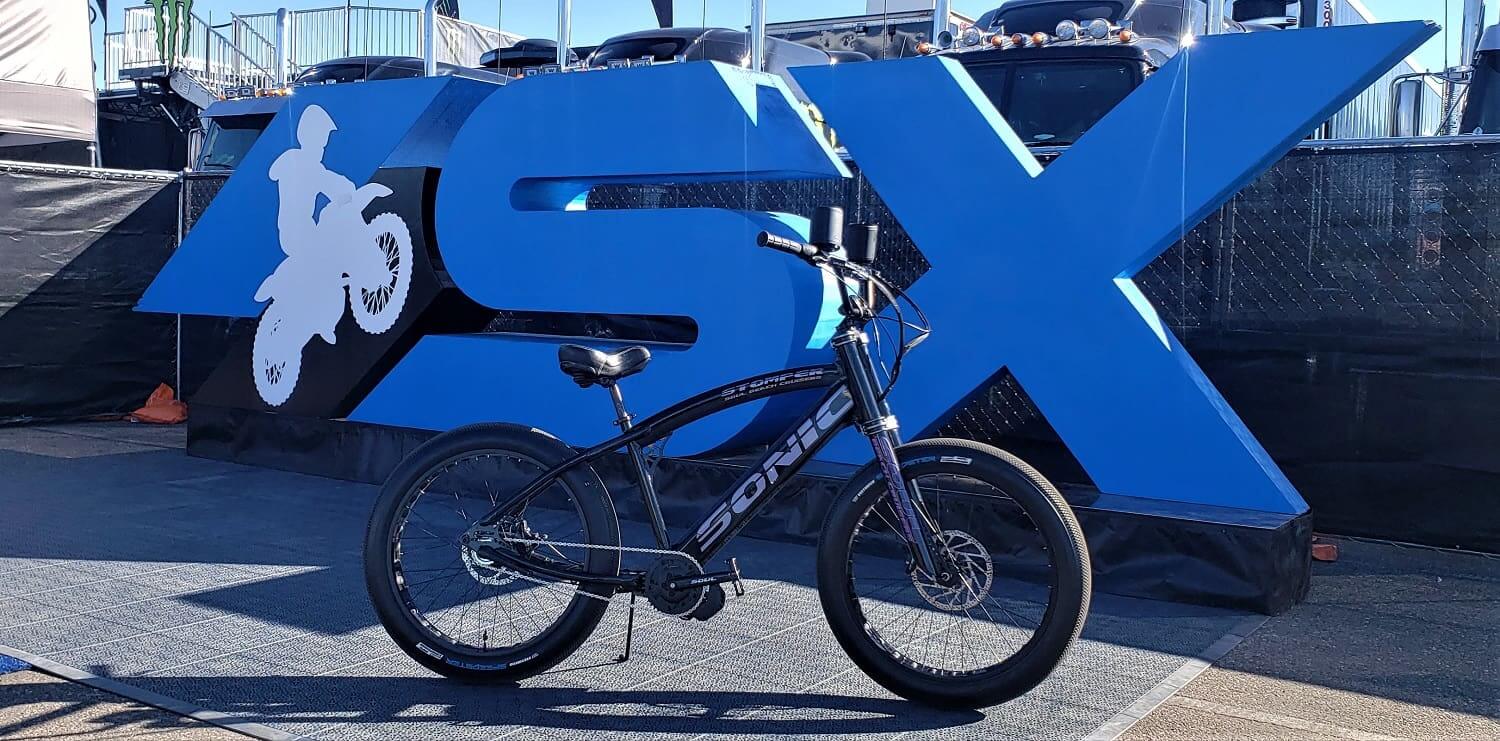

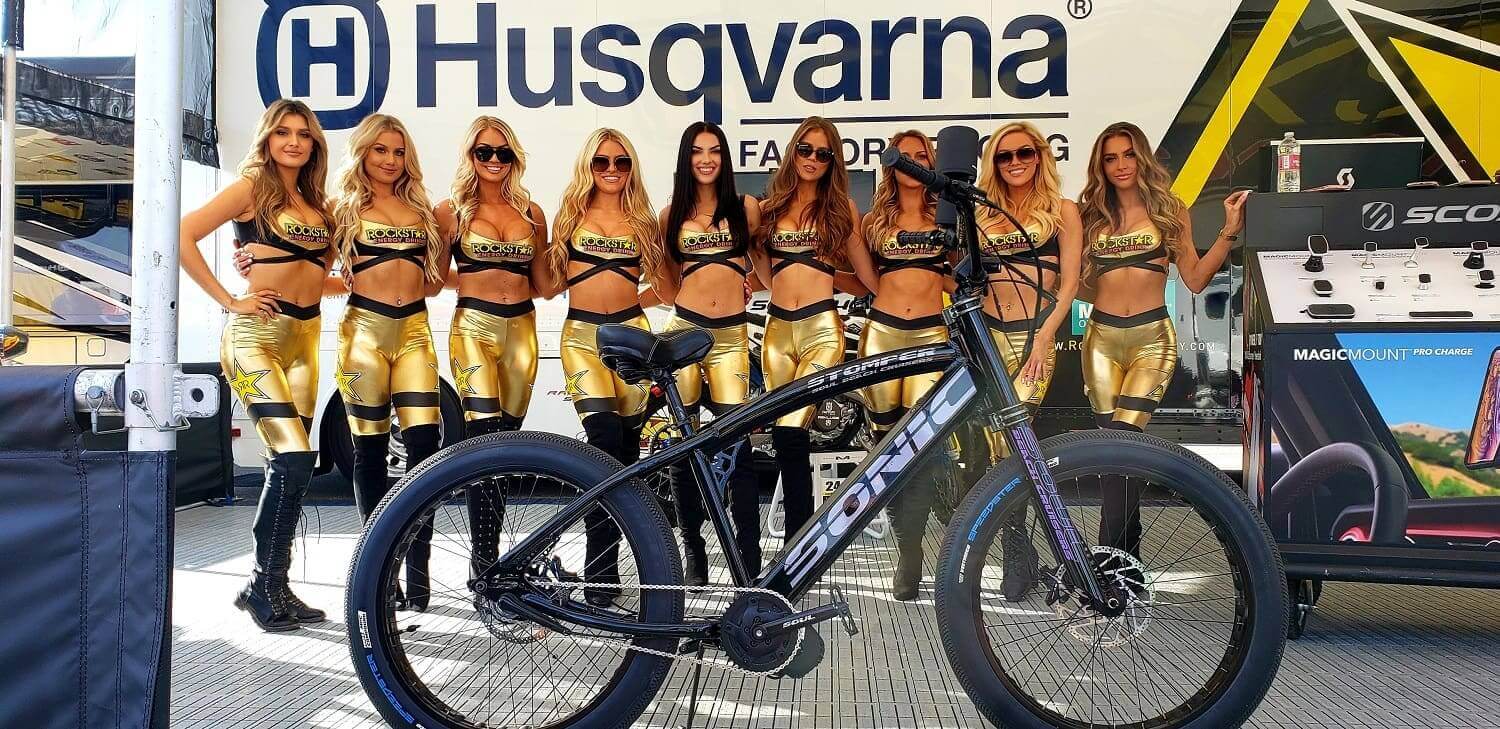

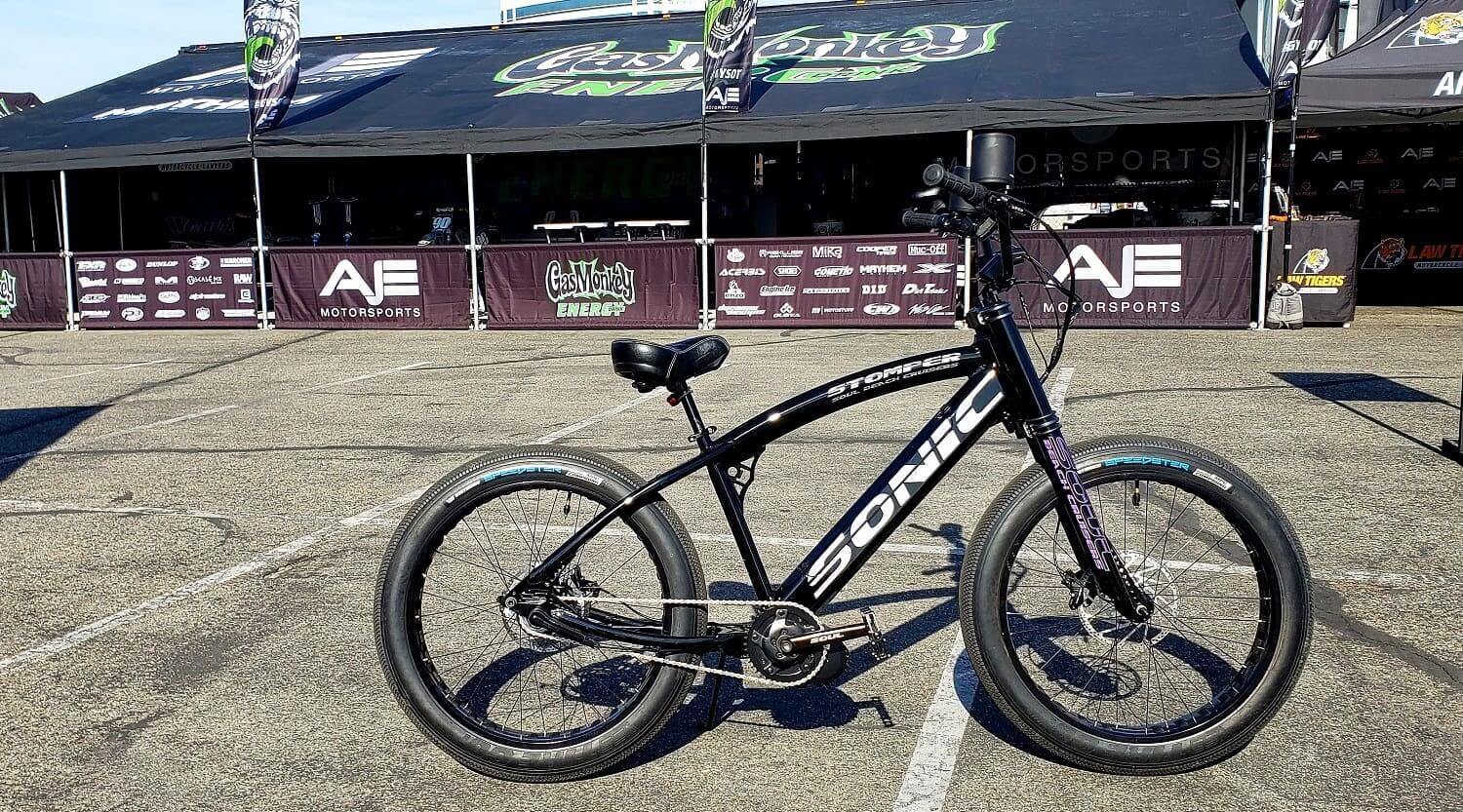

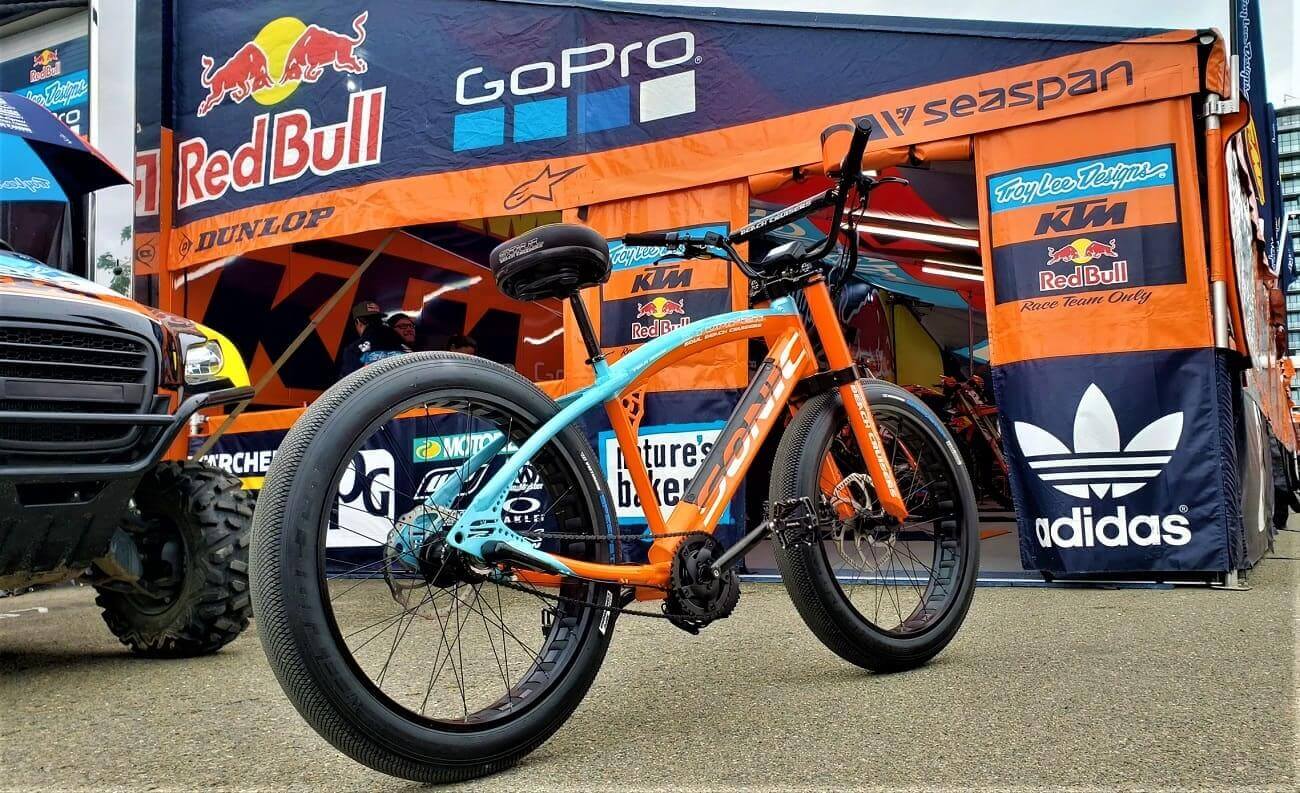

SAN DIEGO SUPERCROSS / ROCKSTAR ENERGY GIRLS
MAKE:
Electronic Details
MOTOR BRAND:
Bafang BBSHD03
MOTOR TYPE:
Mid-Mounted Geared Motor
MOTOR NOMINAL OUTPUT:
1000 watts
MOTOR PEAK OUTPUT:
1480 watts
MOTOR TORQUE:
160 Newton meters
BATTERY BRAND:
52V Samsung
BATTERY VOLTAGE:
48 volts
BATTERY AMP HOURS:
14.5 ah
BATTERY WATT HOURS:
696 wh
BATTERY CHEMISTRY:
Lithium-ion
CHARGE TIME:
6.5 hours
ESTIMATED MIN RANGE:
30 miles (48 km)
ESTIMATED MAX RANGE:
60 miles (97 km)
DISPLAY TYPE:
750 3.5″ Color LCD, Fixed, Adjustable Angle
READOUTS:
Battery Capacity (graphic), Clock, Trip Distance and Timer, Odometer, Current Speed, Average Speed, Maximum Speed, Assist Level (0-5), Watts, Estimated Range
DISPLAY ACCESSORIES:
Independent Button Pad on Left, Buttons: Up, Down, M, Power (Hold Down for Walk Mode, Press M to Cycle Trip Readouts, Press Power to Cycle Distance and Range Readouts)
DRIVE MODE:
Cadence Sensing Pedal Assist, Trigger Throttle (12 Magnet Sealed Sensor)
SONIC Details
TOTAL WEIGHT:
72 lbs (32.65 kg)
BATTERY WEIGHT:
8.1 lbs (3.67 kg)
MOTOR WEIGHT:
13.25 lbs (6.01 kg)
FRAME MATERIAL:
6061 T6 Aluminum Alloy / Locking Removable Downtube Mounted Battery Pack
FRAME SIZES:
19 in (48.26 cm)
GEOMETRY MEASUREMENTS:
19″ Seat Tube, 26″ Reach, 30″ Standover Height, 34.5″ Width, 79″ Length, 35.5″ Minimum Saddle Height
FRAME TYPES:
High-Step
FRAME COLORS:
Gloss White with Black Accents, Gloss Black, Heritage Orange and Blue, Metallic Blue and White, Brushed Aluminum
FRAME FORK DETAILS:
2″ T6 Aluminum Alloy, Custom CNC Billet Triple Clamp, Bump Stop, 8″ Fork Tabs, 4130 Chromoly Steer Tube, 135mm Hub Spacing, 10mm Through Axle with 15mm Nut
FRAME REAR DETAILS:

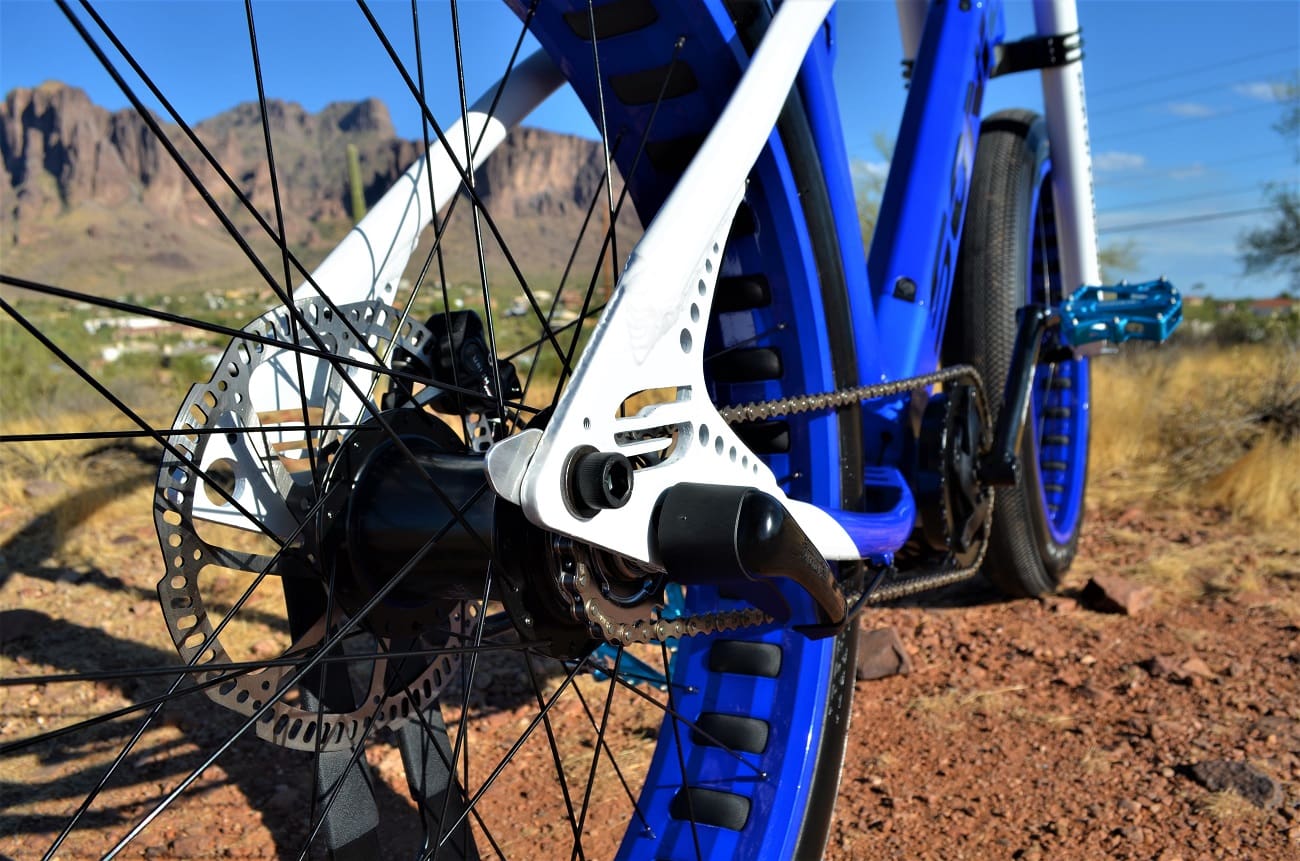

170mm Hub Spacing, 11/32nd Axle with 15mm Nuts
GEARING DETAILS:
3 Speed Sturmey Archer SX-RK3 Internally Geared Hub
SHIFTER DETAILS:
Sturmey Archer Twist Shifter on Right with Gearing Readout Window
CRANKS:
Custom Soul Tooled 4130 Chromoly, 175mm Length, 42 Tooth Steel Chainring with Narrow-Wide Teeth
PEDALS:
XL Billet, 4130 Chromoly Spindle, Sealed Bearings
HEADSET:
Semi-Integrated 1-1/8″, Sealed Bearings
STEM:
Billet Top Clamp, 31.8mm, 180º Adjustment Range
HANDLEBAR:
Aluminum Alloy, BMX Style, 180mm Rise, 870mm Length, 30º Back Sweep
BRAKE DETAILS:
TRP Zurich Hydraulic Disc, Quad-Piston Calipers with Cooling Fins, 223mm Front / 203mm Rear Rotors, Motor Inhibitors, 2-Finger Levers with Adjustable Reach
GRIPS:
Padded Foam, Billet Locking
SADDLE:
Grand Star Oversized, Quilted, Rubber Bumpers, Reflective Logo on Rear
SEAT POST:
Aluminum Alloy
SEAT POST LENGTH:
350 mm
SEAT POST DIAMETER:
27.2 mm

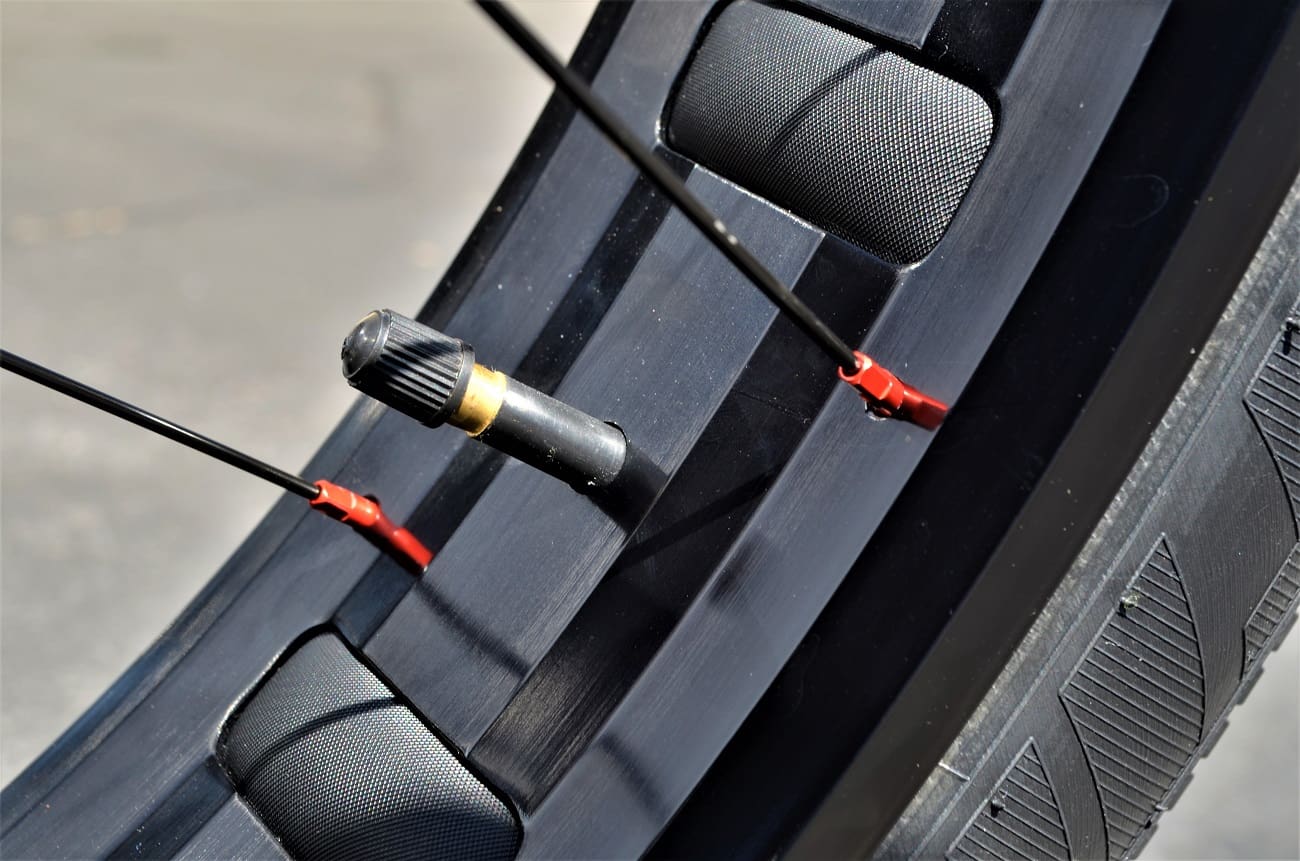

RIMS:
Aluminum Alloy, Double Walled, Punchouts, 36 Hole
SPOKES:
Stainless Steel, 14 Gauge, Black with Chromed Brass Spoke Nipples
TIRE BRAND:
Vee Rubber Speedster 26″ x 3.5, Puncture Protection Sealant
WHEEL SIZES:
26 in (66.04cm)
TIRE DETAILS:
5 to 30 PSI (0.4- 2.1 BAR)
TUBE DETAILS:
Schrader Valve
Questions? Provide Name, email, Phone, and address so that we can reach out to you. Or call us anytime at 657-215-0099
The Sonic SS.
If You Demand The Absolute Best, Look No Further.
- BILLET CNC MX STYLE TRIPLE CLAMPS
- MASSIVE 2″ ALUM FORK TUBES
- XL 203MM FRONT BRAKE ROTOR
- 4 PISTON TRD HYDRAULIC BRAKES
- ULTRA LIGHT 3.5″ SOUL SPEEDSTER TIRES by Vee Rubber
Features include:
6061 T-6 Aluminum Frame & Threadless Fork
Billet Pedals – Billet Direct Mount Handlebar Stem
Stainless Steel Chain – Alum bars – Alum Post – Alum Lock-on Grips
Oversized Hydraulic Brakes – Sturmey Archer 3 Speed Hub
1000w Bafang BBSHD mid drive
14.5 amp integrated battery
All wiring hidden
